6-28
IM DLM6054-01EN

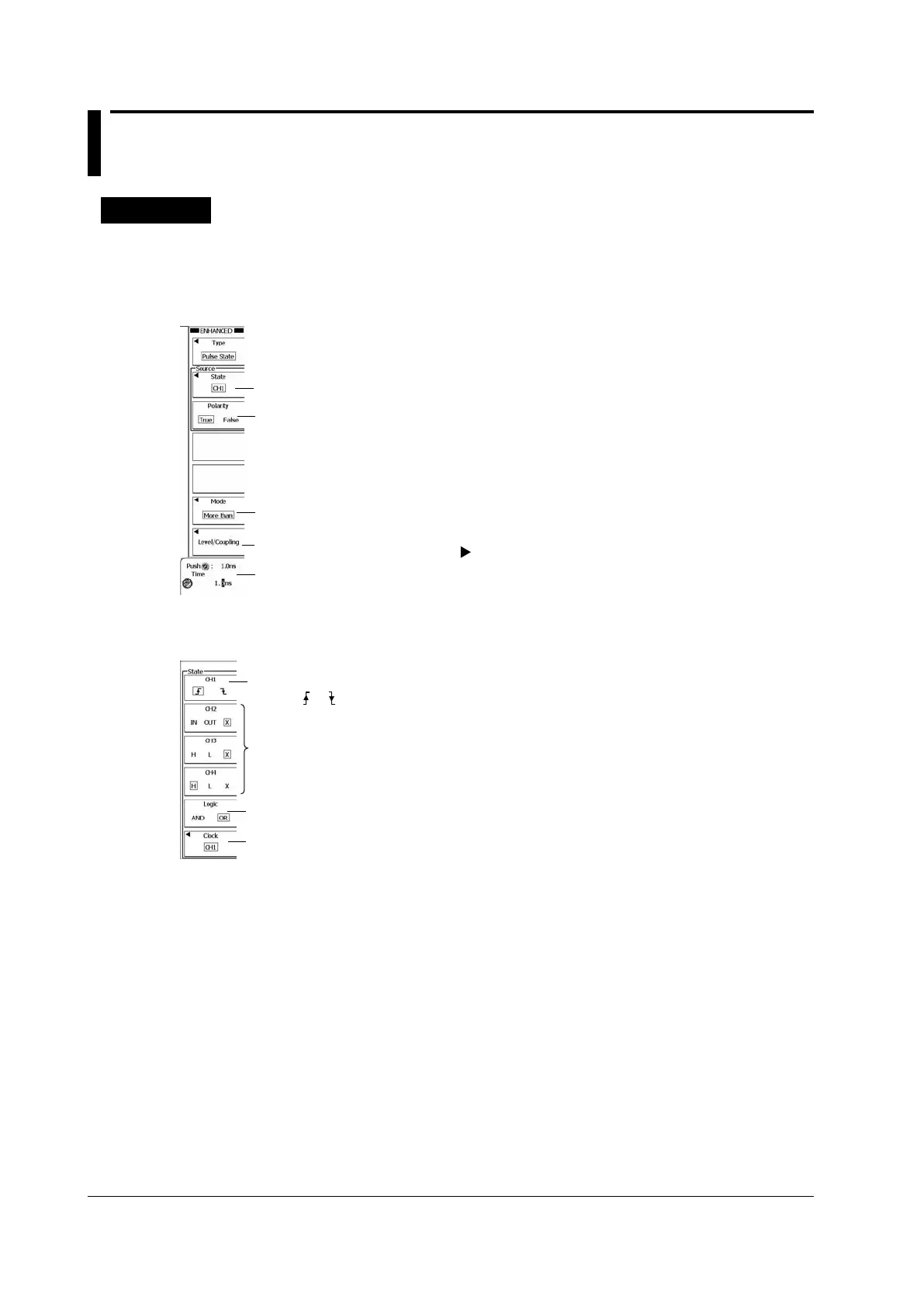

6.9 Triggering on a State Width Condition
Procedure
ENHANCED Pulse State Menu
Set a trigger using a channel from CH1 to CH4 as the trigger source.
Press ENHANCED, the Type soft key, the Width soft key, and then the Pulse State soft key to display
the following menu.
Set the time width mode.
Press to configure the state conditions.
Press to configure the trigger coupling, HF rejection, noise rejection,
and window comparator settings. section 6.3.
Set the trigger condition.
True: The time for which the state conditions are met is compared with the reference time.
False: The time for which the state conditions are not met is compared with the reference
time.
Set the reference time.
Setting States (State)
Press the State soft key to display the following menu.
Set the state conditions for signals other than the clock source.
• Select H, L, or X when the window comparator is off.
• Select IN, OUT, or X when the window comparator is on.
Set the state condition logic (AND, OR).
Set the slope for the clock source signal.
• Select or when the window comparator is off.
• Select Enter or Exit when the window comparator is on.
Set the clock source (CH1-CH4, X).
To Next Page
