13-16
IM DLM6054-01EN
13.9 Loading Other Types of Data
CAUTION
Do not remove the storage medium or turn off the power when the file icon ( ) in the bottom
left of the screen is blinking. Doing so may damage the storage medium and corrupt its data.
Procedure

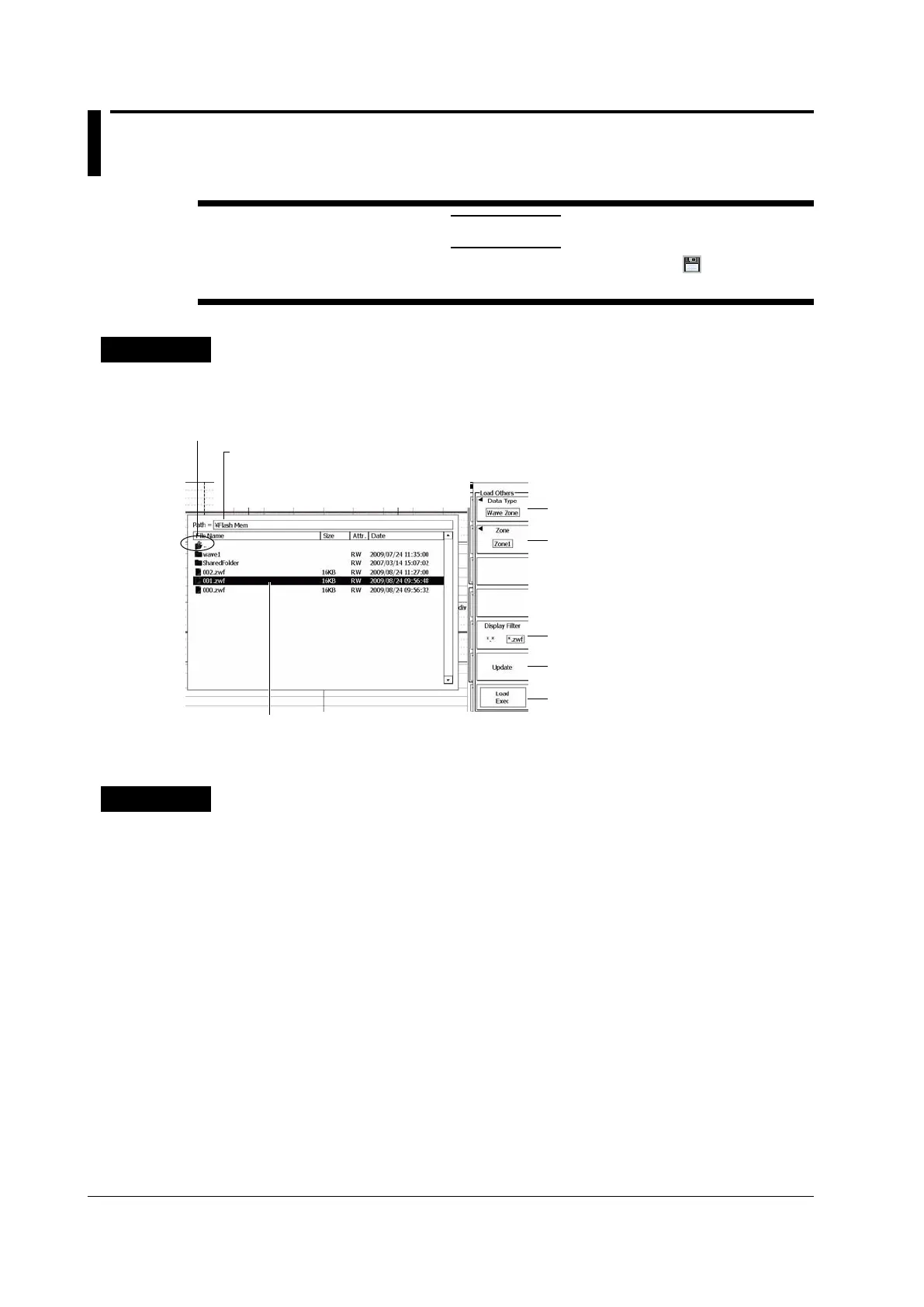

FILE Others (Load) Menu
Press FILE and then the Others(Load) soft key to display the following menu.
Set the data format (Wave-Zone,
Polygon Zone, Mask, Snap, Symbol).
Set which files to display in the File
List window (*.zwf, *.*).
Updates the File List with the most recent
information
Loads the data
Set the folder to load from.
Move the cursor to a folder by using the
jog shuttle or the SET key (by moving it
up, down, left, or right), and press SET.
To move to the folder that contains the current folder, move the cursor to this line and press SET.
Move the cursor to the file that you want to
load by using the jog shuttle or the SET key
(by moving it up, down, left, or right).
Set the zone to load (Zone1–Zone4).*
* Only when Data Type is set to Wave-Zone or
Polygon Zone
Explanation
You can load the following data from the specified storage medium.
• Waveform zones (.zwf), polygonal zones (.msk), and mask patterns (.msk)
• Snapshot waveforms (.snp)
• Symbol files (.sbl)
*
* Symbol files are definition files (with .sbl extensions) for converting logic signal patterns into
symbols. You can edit them by using YOKOGAWA’s free Symbol Editor software. You can obtain
Symbol Editor from the YOKOGAWA website (http://www.yokogawa.com/tm/).
To Next Page
