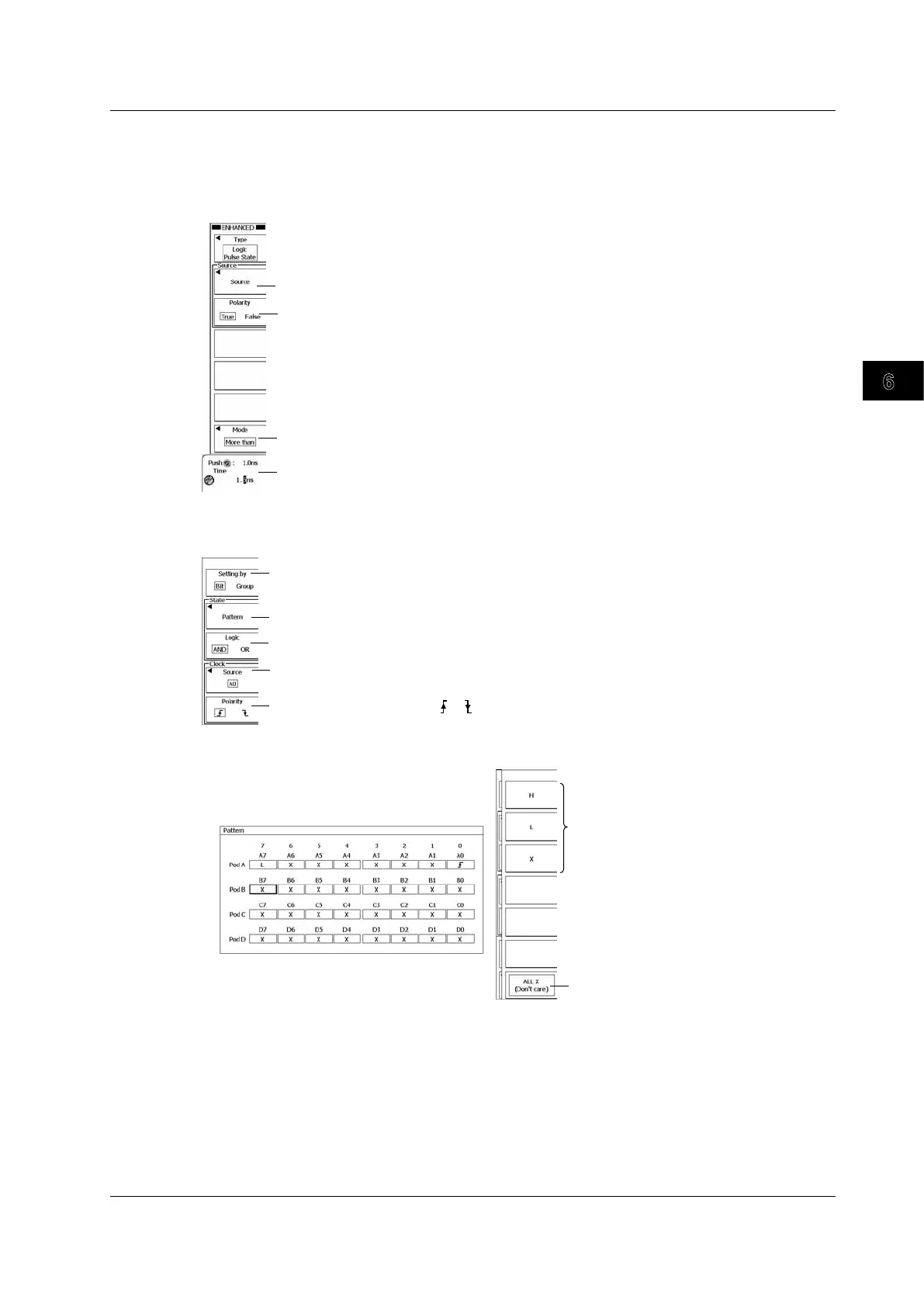

ENHANCED Logic Pulse State Menu (DLM6000)
Set a trigger using a logic signal bit as the trigger source.
Press ENHANCED, the Type soft key, the Width soft key, and then the Logic Pulse State soft key to
display the following menu.
Set the time width mode.
Set the trigger source.
Set the trigger condition.
True: The time for which the state conditions are met is compared with the reference time.
False: The time for which the state conditions are not met is compared with the reference
time.
Set the reference time.
Setting the Source (Source)
Press the Source soft key to display the following menu.
Set the logic (AND, OR).
Press to configure the state conditions.
Select the state determination method.
Bit: States are determined by bit.
Group: States are determined by group.
Select the clock bit (A0-A7, B0-B7, C0-C7, D0-D7).
(On 16-bit models, you can choose a bit from A0 to A7 or C0 to C7.)
Set the clock source slope ( , ).
Setting States by Bit
Sets all bits to X
Set each bit to H, L, or X.
6.9 Triggering on a State Width Condition
To Next Page
