11-6
IM DLM6054-01EN

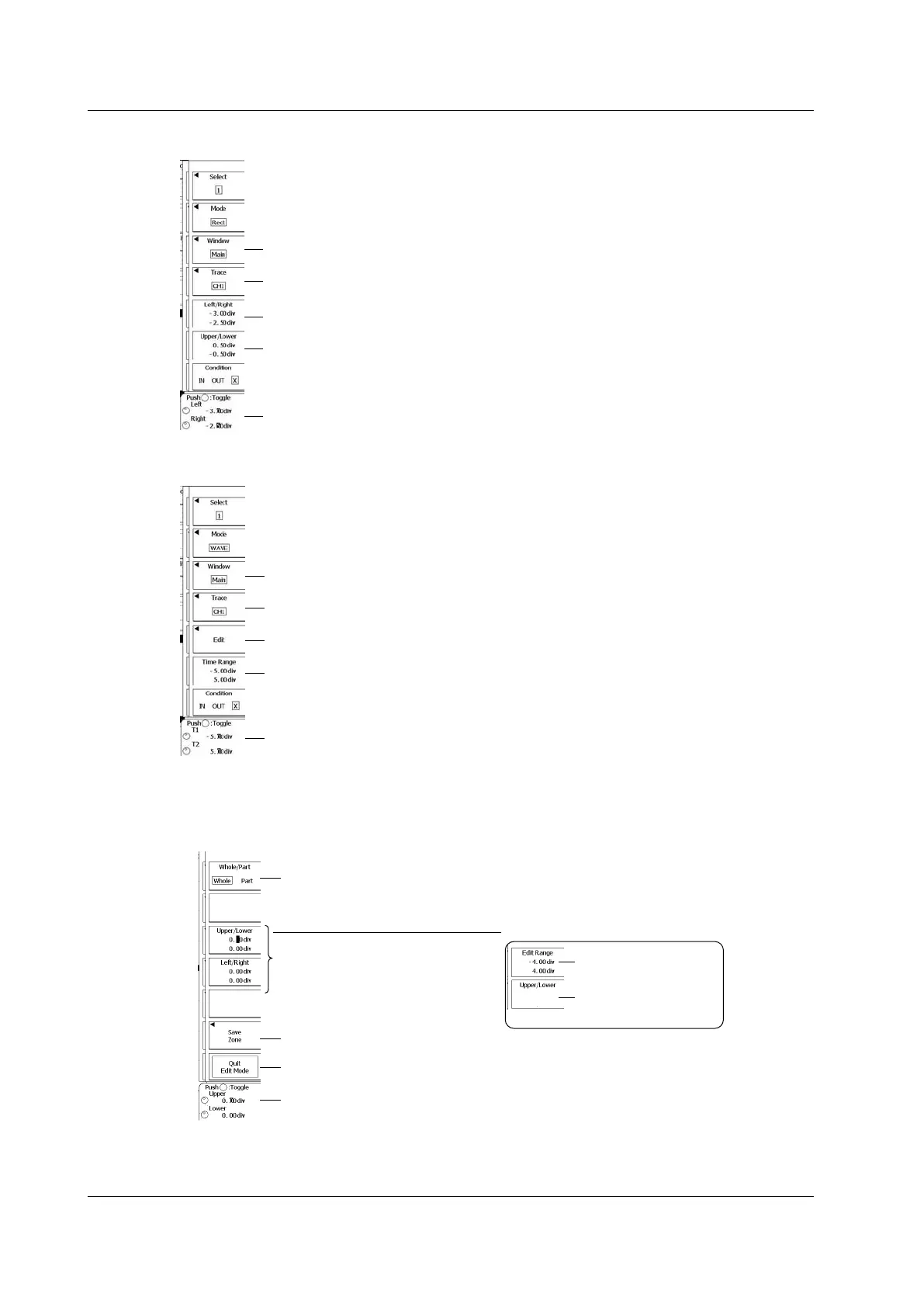

Searching by Rectangular Zone (Rect)
Set the search source window (Main, Zoom1, Zoom2, XY1, XY2).
Set the search source waveform (CH1–CH4, M1–M4).
Set the left, right, upper, and lower limits of the rectangular zone (using the jog shuttle).
Set the left and right limits of the rectangular zone (using the jog shuttle).
Set the upper and lower limits of the rectangular zone (using the jog shuttle).
Searching by Waveform Zone (WAVE)
Set the search source window (Main, Zoom1, Zoom2).
Set the search source waveform (CH1–CH4, M1–M4).
Edit the waveform zone.
Switches the item that the jog shuttle adjusts (T1, T2).
Set the search time range (T1, T2).
Creating a New Waveform Zone (New REF Trace)
Press the Edit soft key, the New REF Trace soft key, and then a soft key from CH1 to CH4 or M1 to
M4 to display the following menu.
Saves the edited zone (1–4)
Finishes editing
Set the waveform zone and the editing range (only for partial zones).
Set the zone to edit.
(Select Whole to edit the entire waveform zone or Part to edit part of it.)
Set the upper, lower, left, and right
limits of the waveform zone using
the jog shuttle.
Set the editing range
(using the jog shuttle).
Set the waveform zone
(using the jog shuttle).
When you have chosen to edit a partial zone (Part)
11.2 Searching for History Waveforms by Zone
To Next Page
