10-40
IM DLM6054-01EN

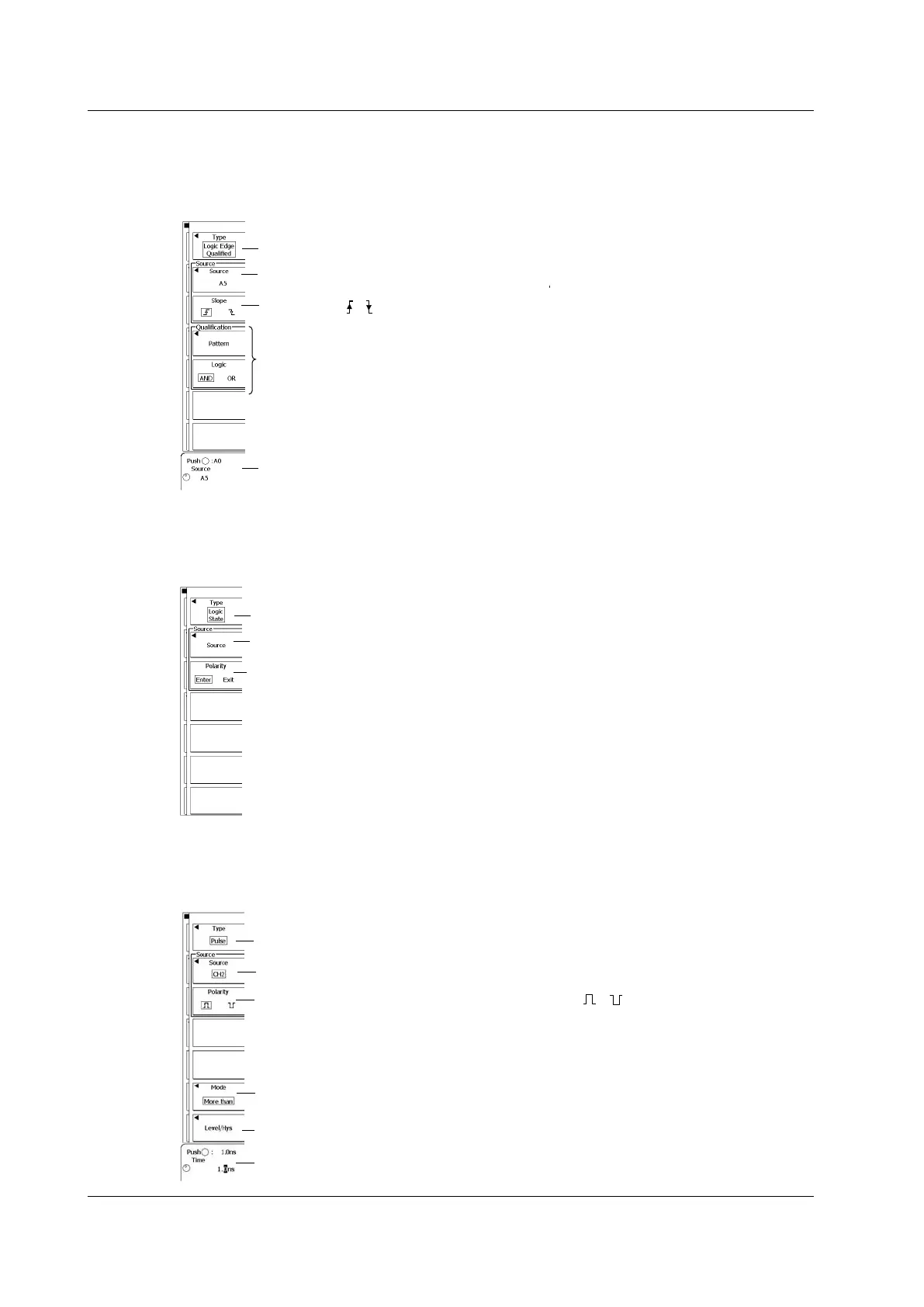

Using Qualifications to Limit an Edge Search on a Logic Signal
(Logic Edge Qualified)
Press the Setup soft key, the Type soft key, the Edge/State soft key, and then the Logic Edge
Qualified soft key to display the following menu.
Set the search type to Logic Edge Qualified.
Set the slope ( , ).
Set the waveform to search.
Press to set the waveform to search (this is the same
as the setting using the jog shuttle). ► section 6.4
Press to configure the qualifications.
► section 6.4
Searching for State Conditions on a Logic Signal (Logic State)
Press the Setup soft key, the Type soft key, the Edge/State soft key, and then the Logic State soft
key to display the following menu.
Set the search type to Logic State.
Set the polarity (Enter, Exit).
► section 6.6
Set the waveform to search (A0–D7).
► section 6.6
Searching for Pulse Widths (Pulse)
Press the Setup soft key, the Type soft key, the Width soft key, and then the Pulse soft key to display
the following menu.
Set the kind of pulse to compare to the specified time ( , ).
► section 6.7
Set the reference time.
Press to set the level and hysteresis.
► “Searching for Edge Using Conditions”
Set the search type to Pulse.
Set the search source waveform (CH1–CH4, M1–M4).
► section 6.7
Set the time width mode.
► section 6.7
10.9 Searching Waveforms
To Next Page
