YOKOGAWA DL6000 Series User Manual

10-23
IM DLM6054-01EN
Analysis and Searching
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Index
App

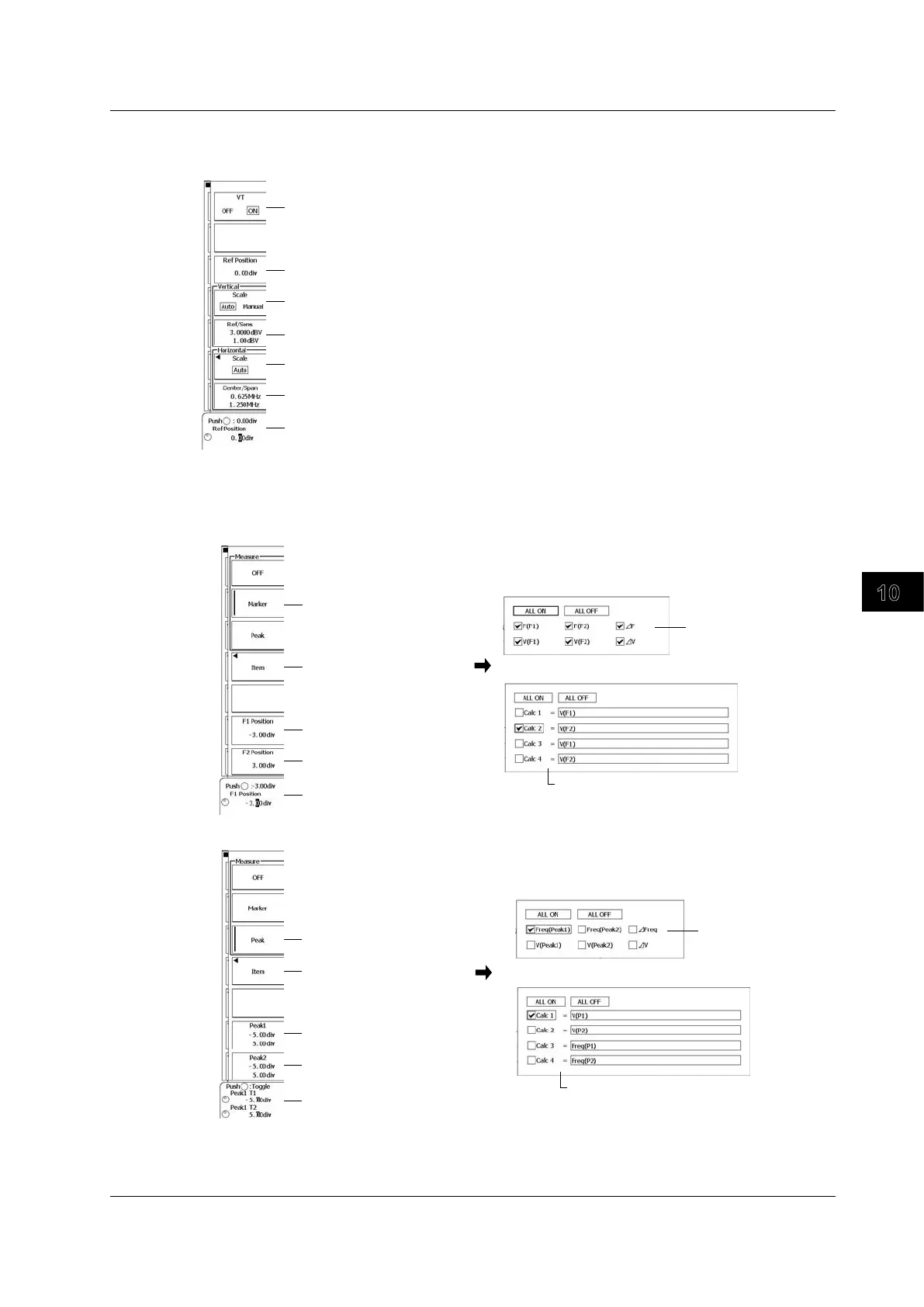

Setting the Vertical and Horizontal Scale Values (Display Setup)
Press the Display Setup soft key to display the following menu.
Turns the source waveform display on and off
Set the vertical-axis reference position (using the jog shuttle).
Set the vertical-axis scale (Auto, Manual).
Manually set the vertical-axis scale value (using the jog shuttle).
Set the horizontal-axis scale (Auto, Center/Span, Left/Right).
Manually set the horizontal-axis scale value (using the jog shuttle).
Set the vertical-axis reference position, the vertical-axis scale value, and the horizontal-axis
scale value.
Configuring FFT Waveform Measurement (Measure)
Press the Measure soft key. The menu that appears varies according to the cursor type.
Marker Cursors (Marker)
Select Marker.
Press to set measurement
items.
Set the F1 cursor position
(using the jog shuttle).
Set the F2 cursor position
(using the jog shuttle).
Set the F1 and F2 cursor positions.
Set the items that
you want to measure.
When You Press Basic
When You Press Calc
See section 10.1.
Peak Cursors (Peak)
Select Peak.
Press to set measurement
items.
Set the measurement time range
for Peak1 (using the jog shuttle).
Set the measurement time range
for Peak2 (using the jog shuttle).
Set upper and lower limits (T1 and T2)
for the measurement time ranges of
Peak1 and Peak2.
Set the items that
you want to measure.
When You Press Basic
When You Press Calc
See section 10.1.
10.5 Performing FFT Analysis
