Connection Procedure

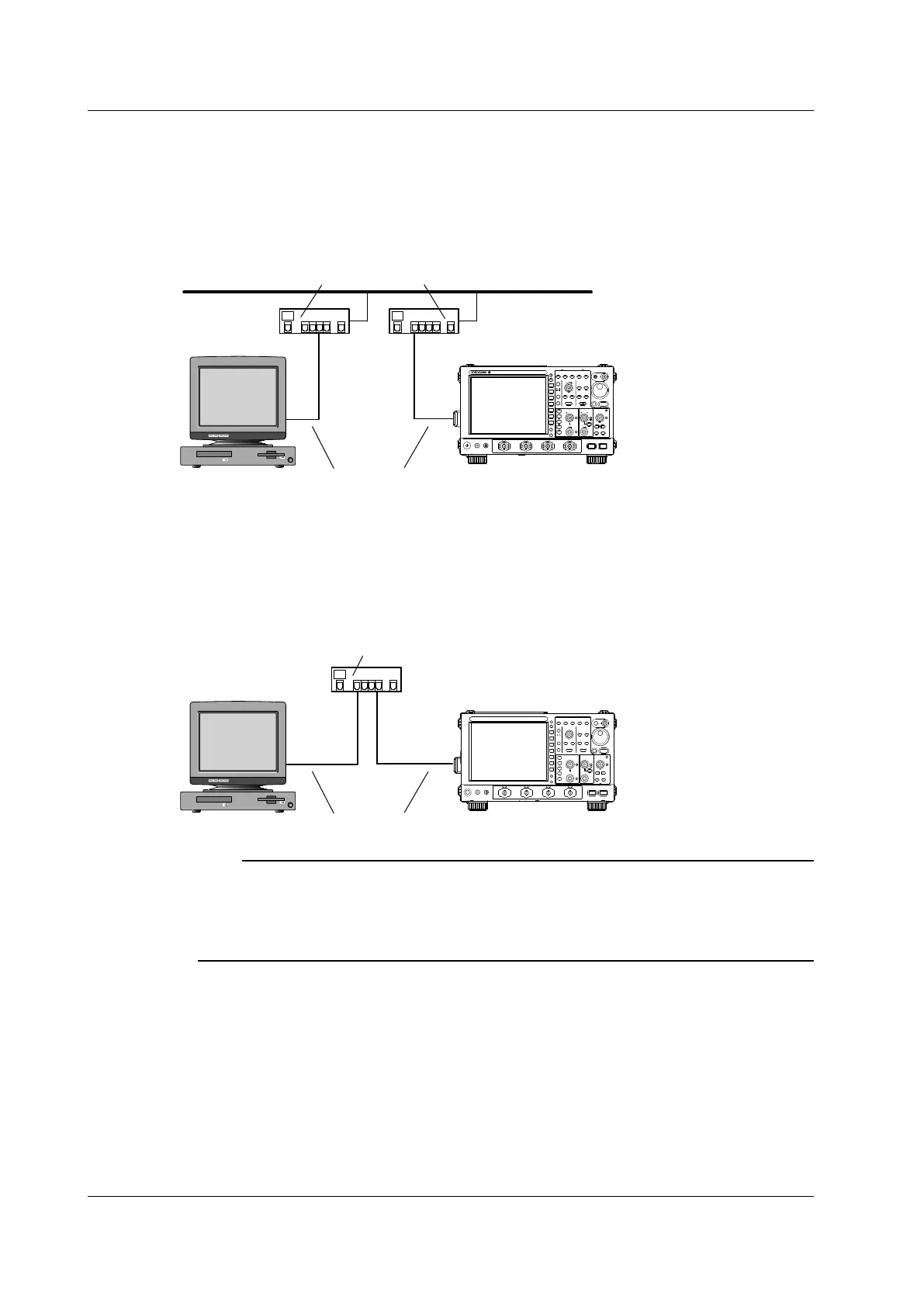

To Connect to a PC over a Network
1.
Turn off the DL6000/DLM6000.
2.
Connect one end of a UTP (or STP) cable to the ETHERNET 100BASE-TX port on the rear panel.
3.
Connect the other end of the UTP (or STP) cable to a hub or router.
4.
Turn on the DL6000/DLM6000.
Hub or router that supports 100BASE-TX
Straight UTP or STP cable
PC
PRINT
FILE
UTILITY
DISPLAY ACQUIRE
X - Y
VERTICAL
POSITION
PUSH
ODIV
PUSH
FINE
SCALE
HORIZONTAL
POSITION
TIME/DIV
PUSH
50%
0 s
TRIGGER
LEVEL
TRIG’D
PUSH
50%
ZOOM
EDGE ENHANCED
MODE B TRIG
ACTION
GO / NO-GO
ZOOM1 ZOOM2
SEARCH
4321
RUN / STOP
SHIFT
DELAY
1
2
3
4
LOGIC
ESC
CLEAR
SNAP
CURSOR
MEASURE
ANALYSIS
MATH/REF
FFT
AUTO
SETUP
SETUP
MENU
HISTORY
SINGLE
REST SET
DL6000/
DLM6000
To Connect to a PC through a Hub or Router
1.
Turn off the DL6000/DLM6000 and the PC.
2.
Connect one end of a UTP (or STP) cable to the ETHERNET 100BASE-TX port on the rear panel.
3.
Connect the other end of the UTP (or STP) cable to a hub or router.
4.
Connect the PC to the hub or router in the same way.
5.
Turn on the DL6000/DLM6000.
Hub or router that supports 100BASE-TX
Straight UTP or STP cable
PC
Note
• When you connect a PC to the DL6000/DLM6000 through a hub or router, the PC must have an auto
switching 10BASE-T/100BASE-TX network card.
• Use straight UTP or STP cables that are category 5 or better.
• Do not connect the DL6000/DLM6000 to a PC directly. Direct communication without a hub or router is
not guaranteed to work.
14.1 Connecting the DL6000/DLM6000 to a Network
