Event Delay

The DL6000/DLM6000 will trigger when the specified relationship is established between the set

time and the time interval from the occurrence of event 1 to the first occurrence of event 2. If the

specified relationship is not established, the DL6000/DLM6000 will search for the time conditions

again after event 1 occurs.

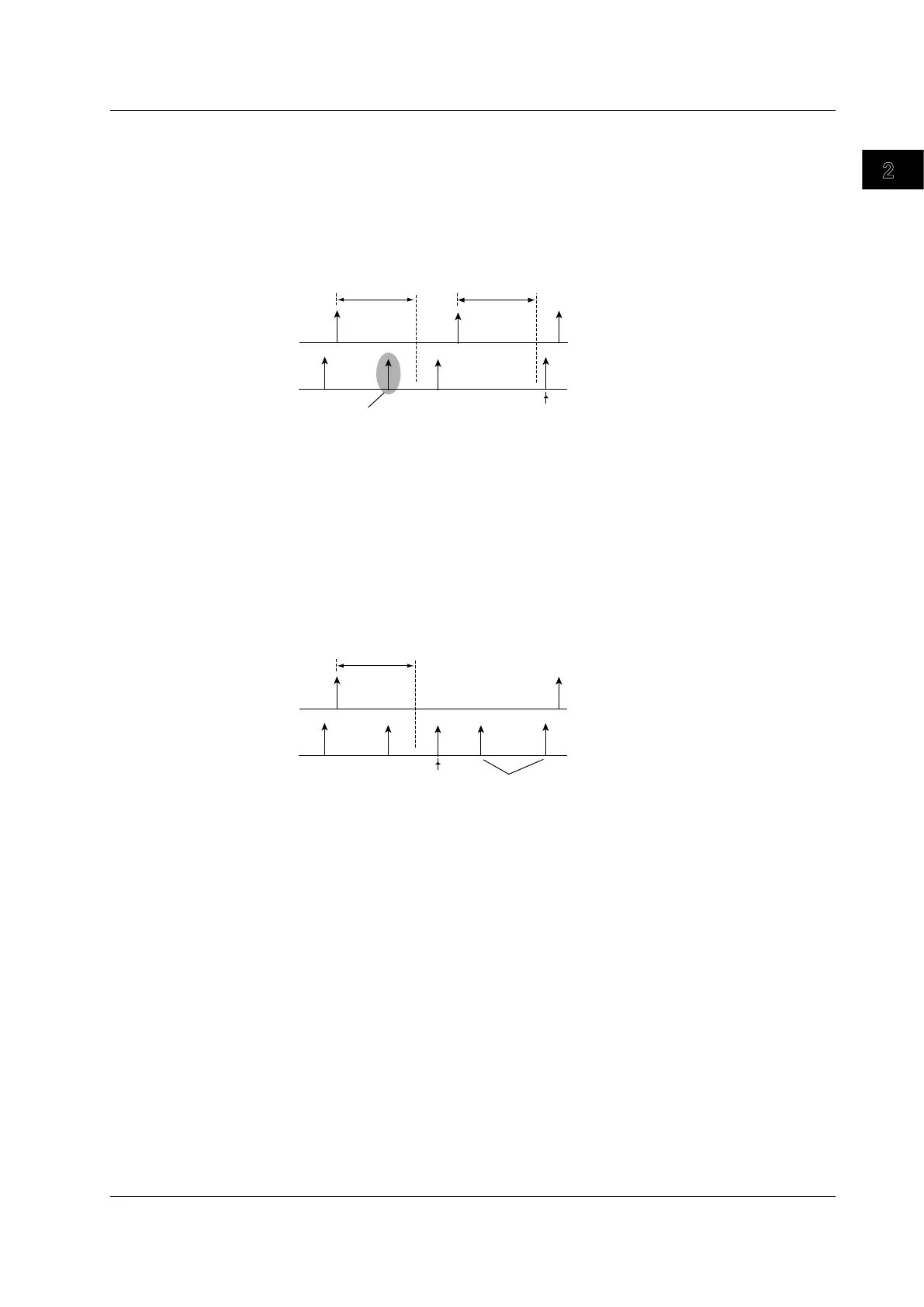

The following is an example for when the specified relationship

is “More than.

”

Event 1

Reference time

Trigger

Event 2

Reference time

Because event 2 occurred within the

reference time, the DL6000/DLM6000

will begin determination again starting

with the next event 1.

Determination

starts here

More than

Event Sequence

The DL6000/DLM6000 will trigger when the specified relationship is established between the set

time and the time interval from the occurrence of event 1 to the first occurrence of event 2. If the

specified relationship is not established, the DL6000/DLM6000 will ignore the first occurrence of

event 2 and wait until event 2 occurs at a time that satisfies the time conditions.

The following is an example for when the specified relationship

is “More than.

”

Event 1

Reference time

Event 2

Trigger

No triggering

More than

B Trigger (BTRIG)

The DL6000/DLM6000 can trigger on the combination of trigger A (condition A) and trigger B (condition

B).

The trigger conditions you set using the EDGE or ENHANCED key are the trigger A conditions. The

trigger conditions you set using the B TRIG key are the trigger B conditions. The trigger type for trigger

B is fixed at Edge.

Trigger Combination (Combination)

Set how to combine the trigger A and B conditions.

• OFF: The DL6000/DLM6000 only triggers on the trigger A conditions (the trigger B

conditions are not used).

• A

Delay B: After the trigger A conditions are met and the specified amount of time elapses, the

DL6000/DLM6000 triggers when the trigger B conditions are met.

  

                         B(N): After the trigger A conditions are met, the DL6000/DLM6000 triggers when the trigger

B conditions are met N times.
