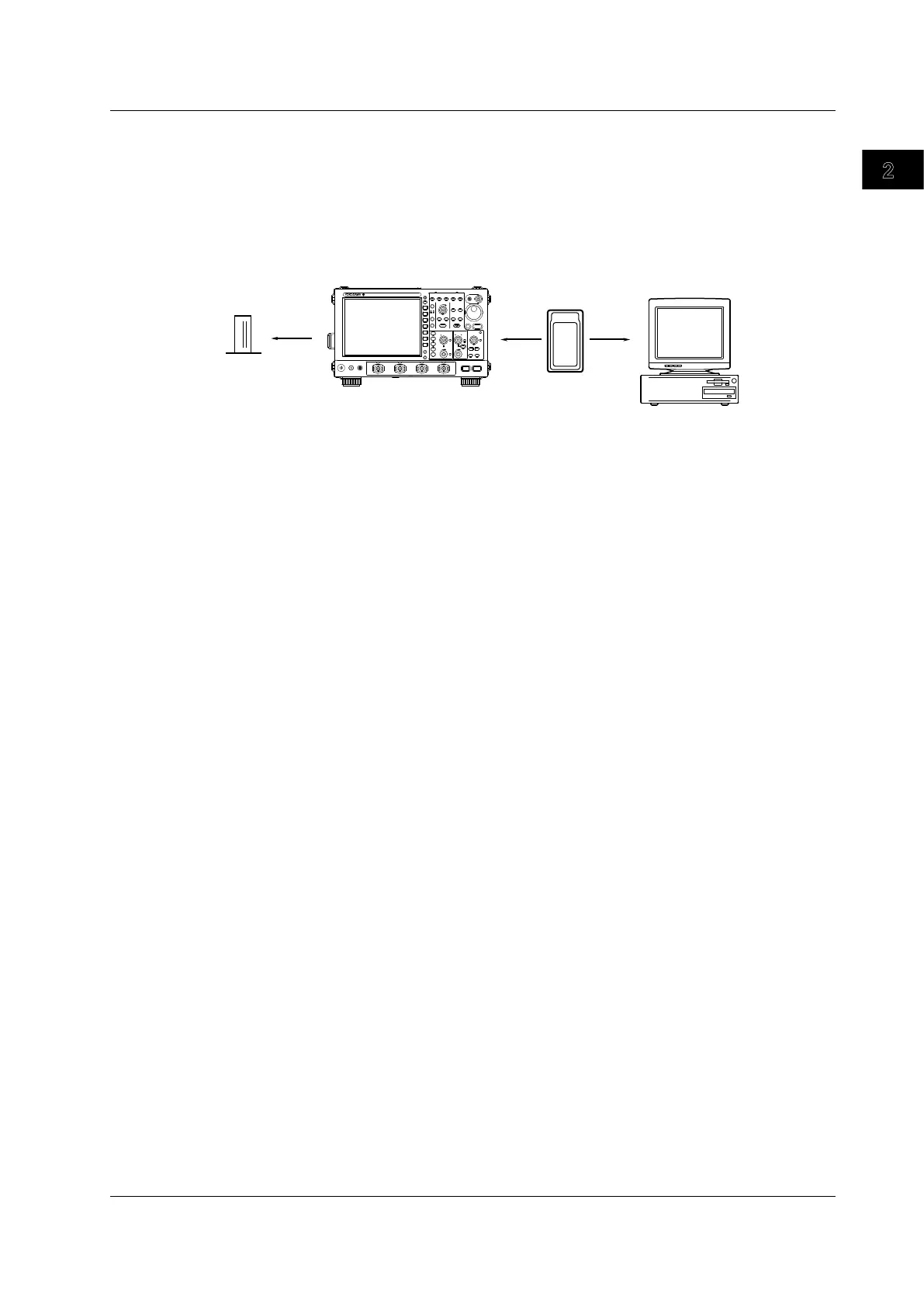

The DL6000/DLM6000 can save and load various types of data to the following kinds of storage
media.
• PC cards (standard)
• External USB devices (USB memory cards, hard drives, etc.)
• Network drives (on models with the Ethernet interface option)
PC card
Hard drive or
other device
PC
PRINT
FILE
UTILITY
DISPLAY
ACQUIRE
X - Y
VERTICAL
POSITION
PUSH
ODIV
PUSH
FINE
SCALE
HORIZONTAL
POSITION
TIME/DIV
PUSH
50%
0 s
TRIGGER
LEVEL
TRIG’D
PUSH
50%
ZOOM
EDGE
ENHANCED
MODE B TRIG
ACTION
GO / NO-GO
ZOOM1 ZOOM2
SEARCH
4321
RUN / STOP
SHIFT
DELAY
1
2
3
4
LOGIC
ESC
CLEAR
SNAP
CURSOR
MEASURE
ANALYSIS
MATH/REF
FFT
AUTO
SETUP
SETUP
MENU
HISTORY
SINGLE
REST SET
DL6000/
DLM6000
Saving and Loading Setup Data, Measured Data, and Waveform
sections 13.4 to 13.9 for the procedures
You can save and load setup data, measured data, snapshot data, and accumulated waveform data to
a selected storage medium.
section 13.11 for the procedure
You can save screen capture data to a selected storage medium. You can save the screen capture
data in BMP, PNG, or JPEG format. This enables you to paste the image data into a document that
you have created using DTP software.
section 13.6 for the procedure
You can save automated measurements of waveform parameters, accumulated waveform histograms,
FFT analysis waveforms, and serial bus signal analysis results to a selected storage medium.
