9-8
IM DLM4038-02EN

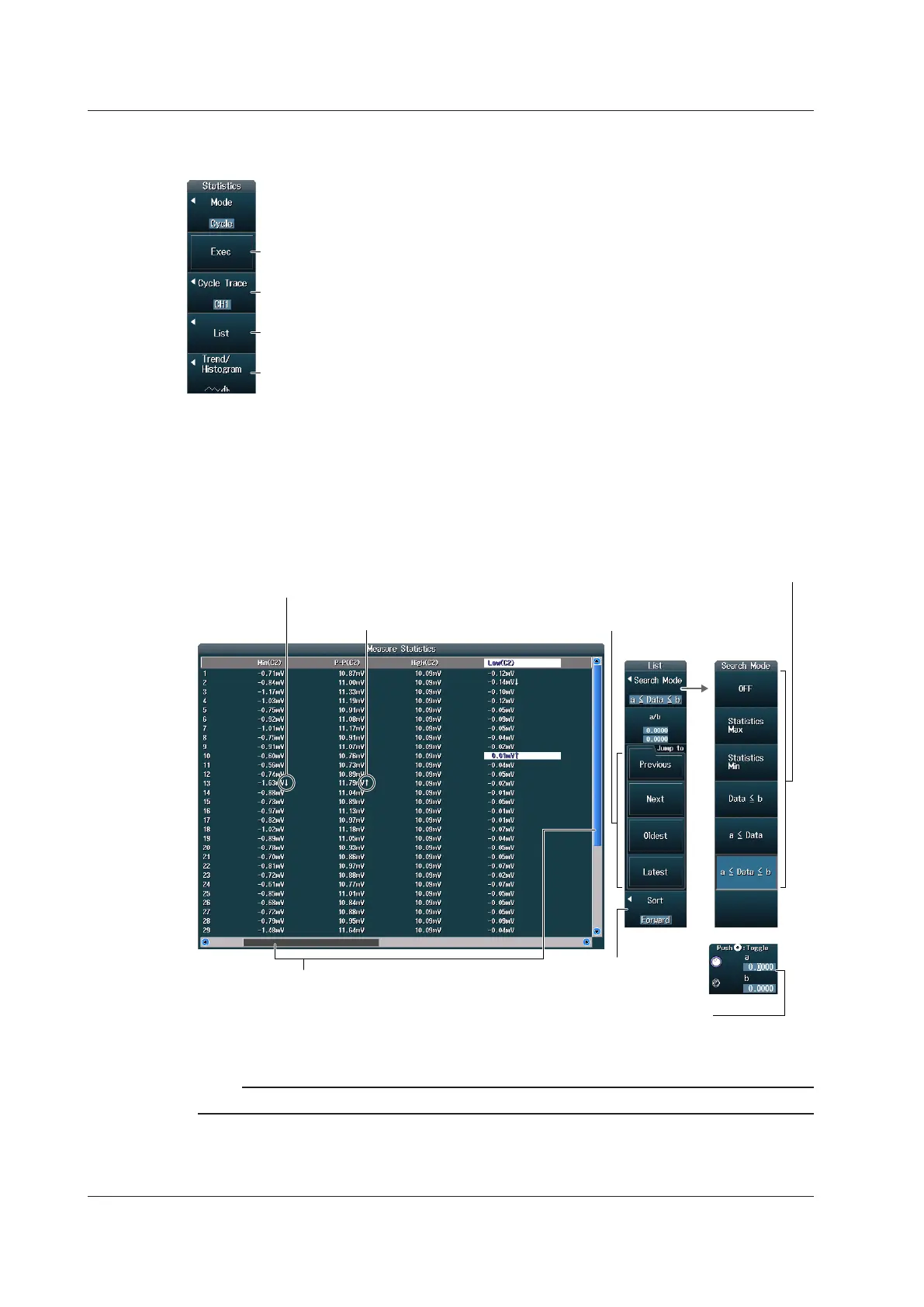

Setting Cyclic Statistical Processing (Cycle)
Press the Cycle soft key to display the following menu.
► the trend and histogram menus for normal statistical processing on the previous page
Configure the trend display or the histogram display.
Configure the list display.
Set the source waveform used to determine the period
(Own, CH1 to CH8, LOGIC(L),
*
LOGIC(A|B),
*
Math1 to Math4).
Execute statistical processing.
* You can select CH8 or LOGIC(L), depending on which channel
’s corresponding key (CH8 or L) is illuminated.
Specify the channel that you want to measure in advance by pressing either the CH8 key or the L key.
LOGIC(A|B) is available on models with the /L16 option.
Setting the List Display (List)
Press the List soft key to display the following menu.
When a scroll bar appears, you can move the SET key
left and right or up and down to move the highlighted
position and scroll through the displayed items.
↓: Displayed by the minimum value of each
measurement item
↑: Displayed by the maximum value of
each measurement item
(OFF, Statistics Max, Statistics
Min, Data≤b, a≤Data, or a≤Data≤b).
Set the value of a and b
(only when Search Mode is set to
Data≤b, a≤Data, or a≤Data≤b).
Select the sort method
(Forward or Reverse).
Jumps to and highlights
the specified destination
Note
You can highlight a measured value and then press SET to zoom in on the corresponding waveform position.
9.2 Processing Statistics on Automatically Measured Values
