Configuring the Trend Display (Trend)

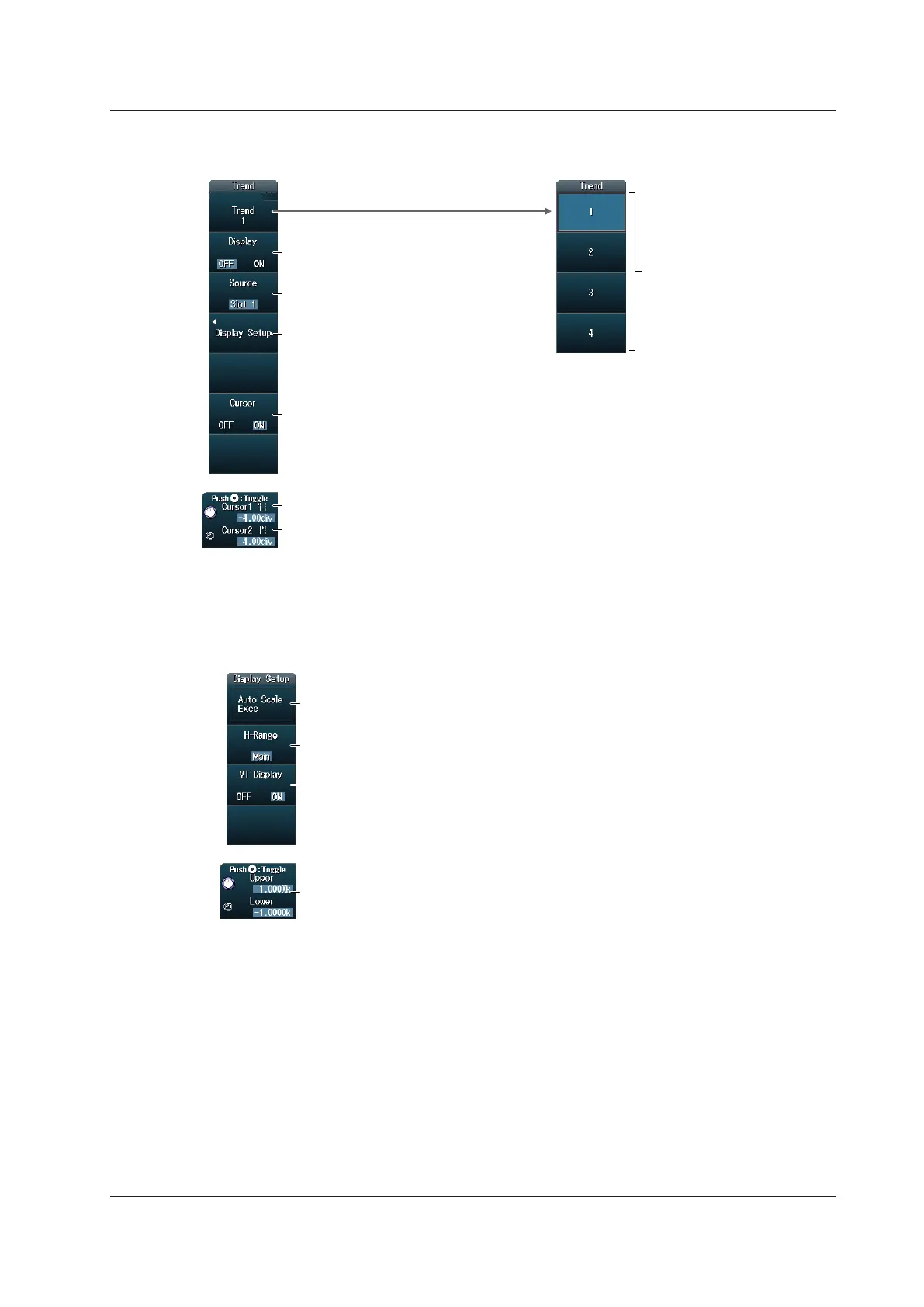

Press the Trend soft key to display the following menu.
Turns cursor measurement on or off
Turn the trend display on or off.
Set the display source (Slot1 to Slot6).
*
Configure the display.
• Cursor1 position
• Cursor2 position
When cursor measurement is on
Set the cursor positions.
Select which trend to set
(Trend1 to Trend4).
* The selectable range of display source varies depending on the number-of-slots setting on the
Setup menu (page 12-33).
Configuring the Display (Display Setup)
Press the Display Setup soft key to display the following menu.
Set the range to display the trend of
(Main, Zoom1, Zoom2).
Set the vertical scale of the
trend display.
Turns the VT waveform display
on or off
Executes auto scaling
Executing Automatic Scaling
Press the Auto Scale Exec soft key.
The upper and lower limits are set so that the difference between the maximum data value and
minimum data value in the window selected with H-Range covers 80% of the vertical scale of the
Trend window.
