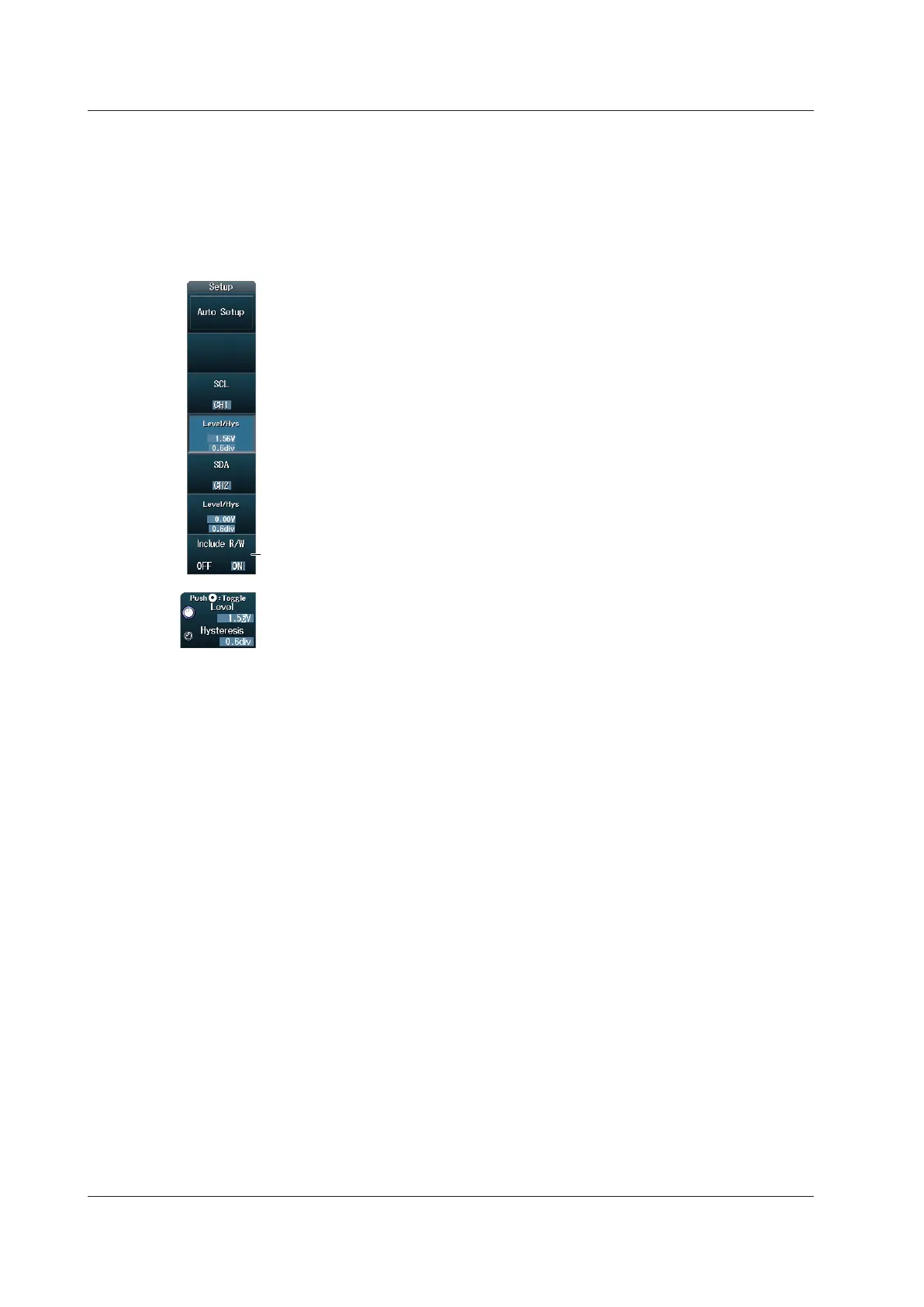

R/W Bit Inclusion (Include R/W)
Specify whether to include the R/W bit (ON) or omit it (OFF) when setting or displaying the address.
This setting affects the display and configuration of the address pattern in the following situations.
• When the search type is Adr Data or General Call (when Second Byte is Master Adr) and the search
conditions are being set (Address in the Condition Setup screen)
• When the decode display is visible
• When the 1st and 2nd address boxes on the list display are visible
Select whether to include the R/W bit.
ON: Include the R/W bit when setting or displaying the address pattern.
OFF: Omit the R/W bit when setting or displaying the address pattern.
12.9 Analyzing and Searching I2C Bus Signals (Option)
