Setting the List Display (List)
Press the List soft key on the SEARCH I2C menu to display the following menu.
Set the analysis
number.
Set the data
number.
Set the list size and the display position (Full Screen, Half(Upper), Half(Lower)).

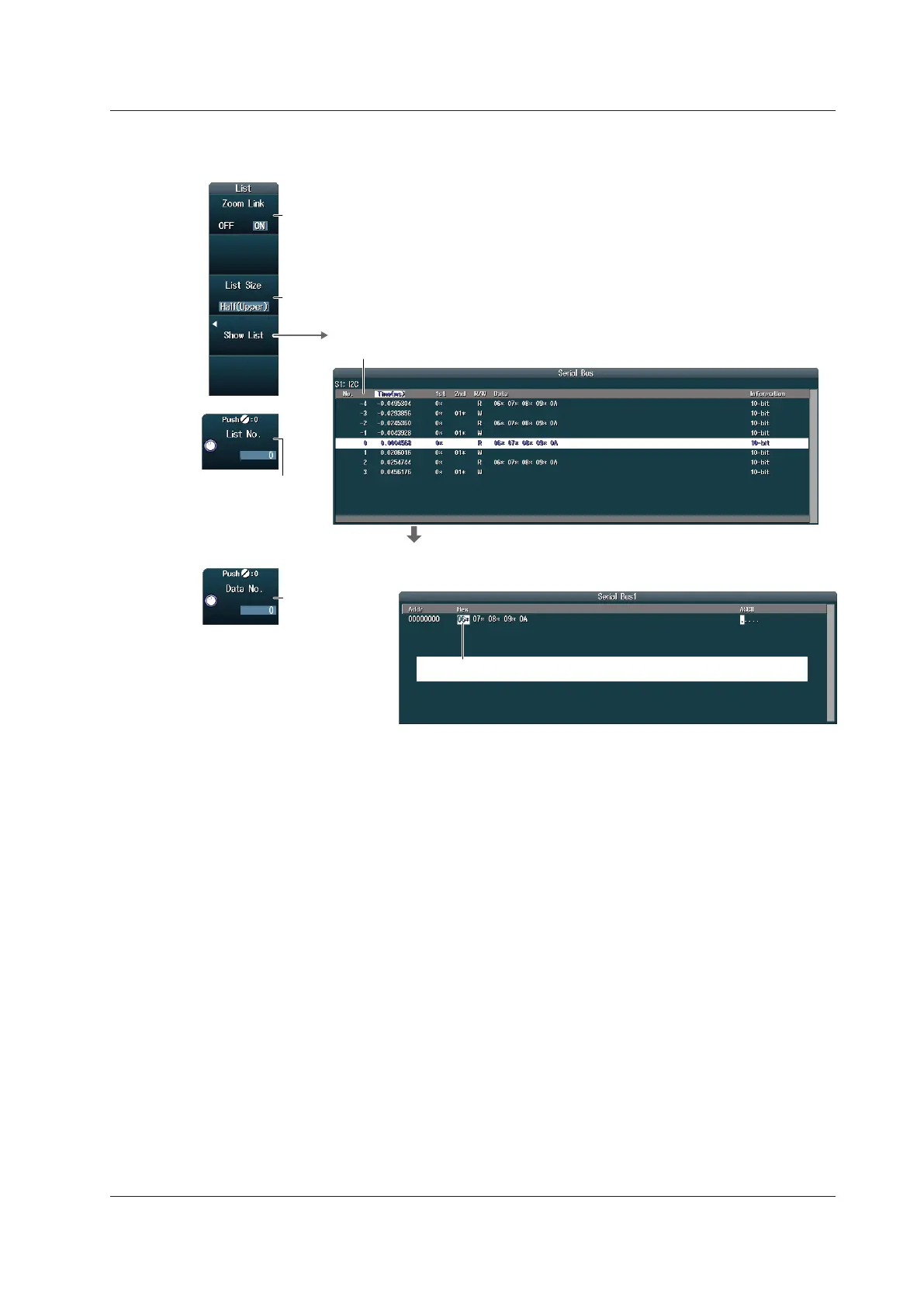

Lists the analysis results
Analysis number
Turns zoom linking on or off
When You Press SET
The data that corresponds to the selected data number is highlighted.
This is the detailed list of analysis results that is displayed
when you press SET.
All data for the specified analysis number is displayed.
Data before the trigger position (on the left side of the waveform display) is assigned analysis
numbers in descending order (-1, -2, and so on). Data after the trigger position (on the right side of the
waveform display) is assigned analysis numbers in ascending order (0, 1, 2, and so on).
