12-55
IM DLM4038-02EN

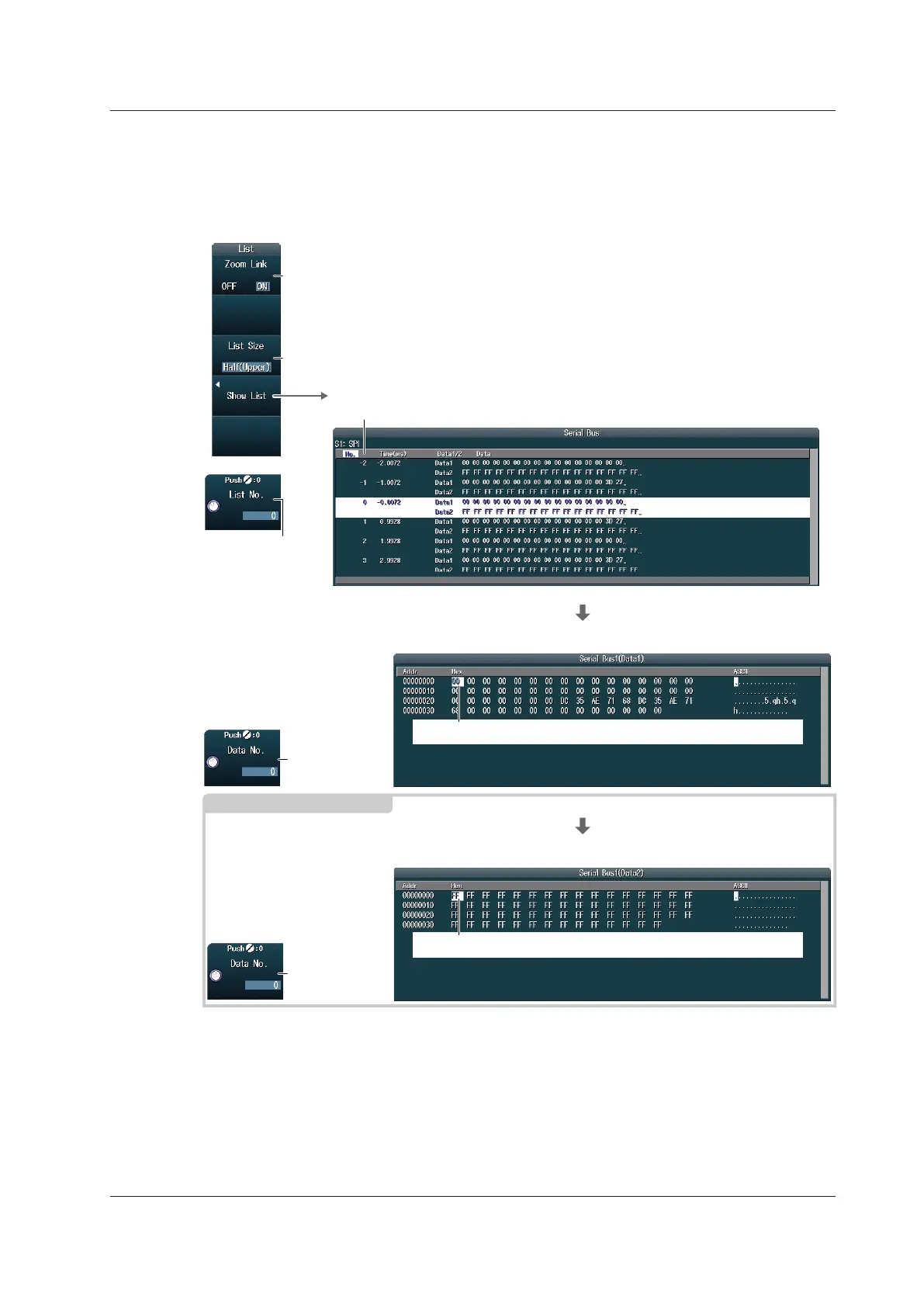

Setting the List Display (List)
Press the List soft key on the SEARCH SPI menu to display the following menu.
When the wiring system is set to 3 Wire in the wiring system settings shown on page 12-52, the
contents of Data1 are displayed in a list. When the wiring system is set to 4 Wire, the contents of
Data1 and Data2 are displayed in a list.
When Wiring System Is 4 Wire
Set the analysis
number.
Set the data
number.
Set the data
number.
Set the list size and the display position (Full Screen, Half(Upper), Half(Lower)).
Lists the analysis results
Analysis number
Turns zoom linking on or off
When You Press SET
When You Press SET Twice
The data that corresponds to the selected data number is highlighted.
The data that corresponds to the selected data number is highlighted.
Detailed List for Data1
All data for the specified analysis number is displayed.
Detailed List for Data2
All data for the specified analysis number is displayed.
Data before the trigger position (on the left side of the waveform display) is assigned analysis
numbers in descending order (-1, -2, and so on). Data after the trigger position (on the right side of the
waveform display) is assigned analysis numbers in ascending order (0, 1, 2, and so on).
12.10 Analyzing and Searching SPI Bus Signals (Option)
