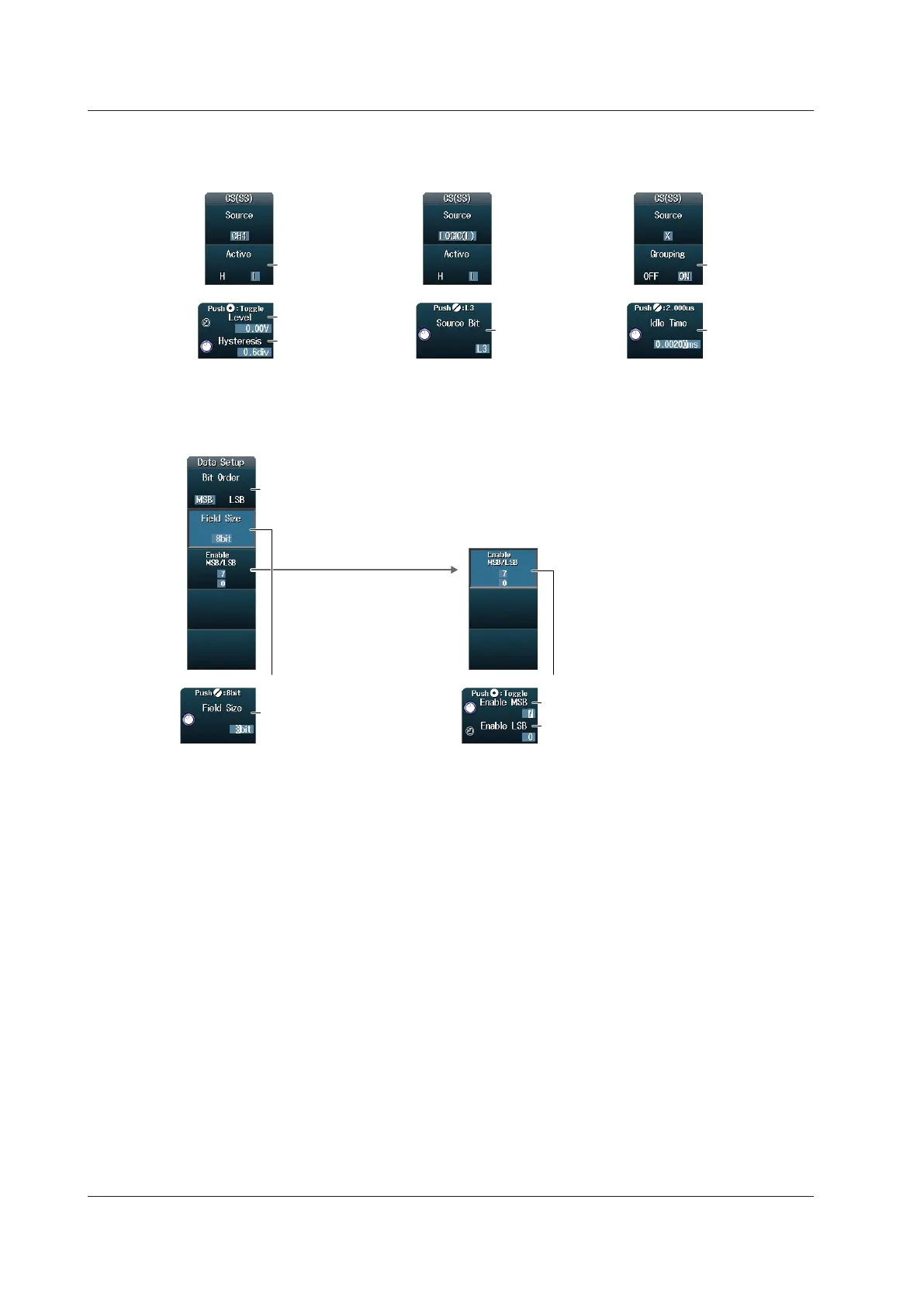

Setting the Chip Select Source (CS(SS))
When the Source is CH1 to CH8
or Math1 to Math4
When the Source Is LOGIC(L)
or LOGIC(A|B)
When the Chip Selector
Source Is X (No source)
Set the source bit
(L0 to L7, A0 to A7,
B0 to B7).*
Set the level used to
detect source states.
Set the active state
(H, L).
Set the idle time.
Turn grouping
on or off.
Set the hysteresis.
* A0 to A7 and B0 to B7 are available on models with the /L16 options.
Setting the Data Format (Data Setup)
Press the Data Setup soft key to display the following menu.
Set the bit order (MSB, LSB).
Set the field size.
• Field size
Set the enabled bit range.
• MSB
• LSB
12.10 Analyzing and Searching SPI Bus Signals (Option)
