YOKOGAWA DLM4000 Series User Manual

14-12
IM DLM4038-02EN

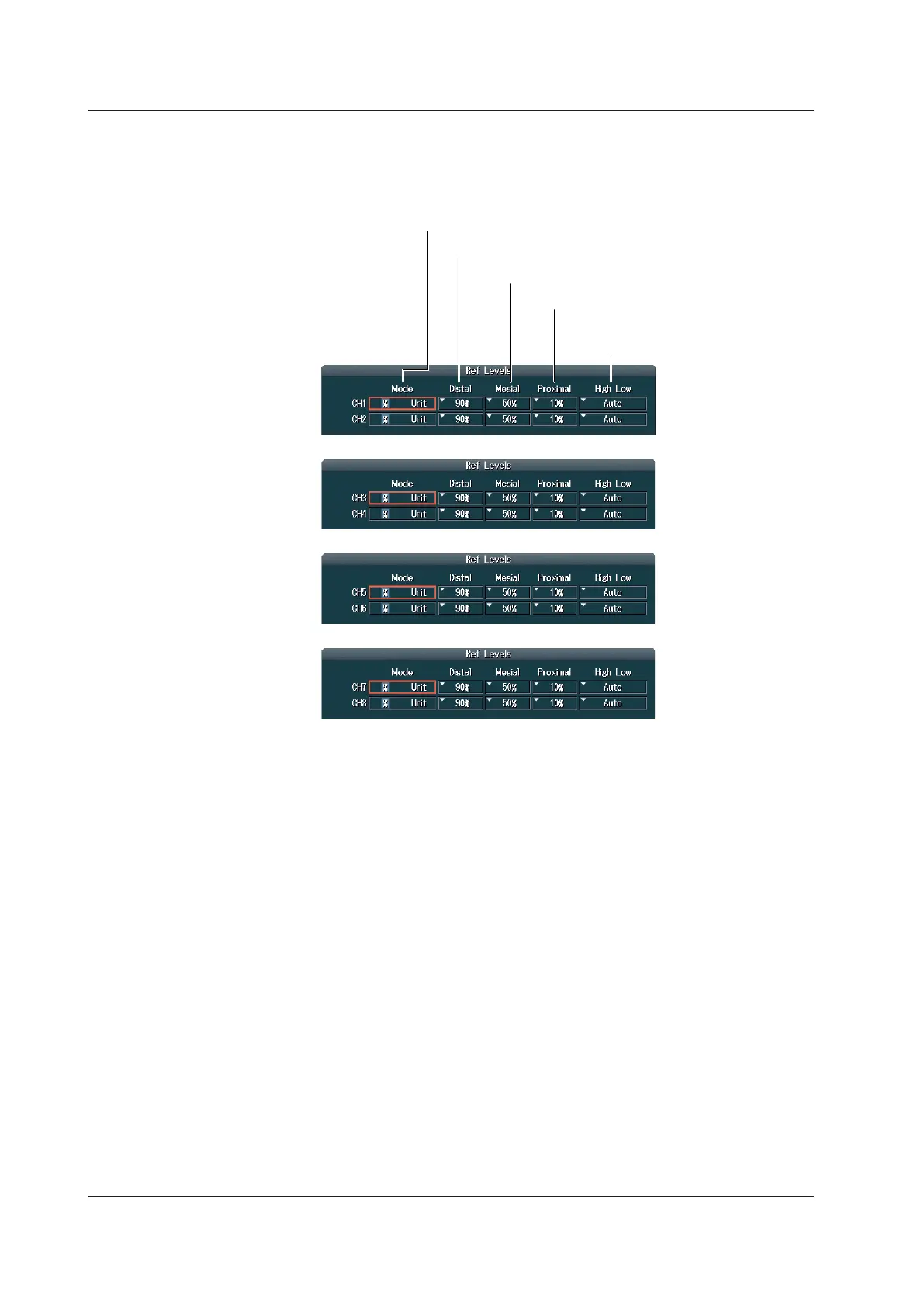

Setting the Reference Levels for Time Measurements (Ref Levels)
Press the Ref Levels soft key. Depending on the power measurement that is selected (Power
Measurement1 to Power Measurement4), the following screen appears.
Power Measurement1
Power Measurement2
Power Measurement3
Power Measurement4
Set the proximal value (using the jog shuttle).
Set the mesial value (using the jog shuttle).
Set the distal value (using the jog shuttle).
Set the unit for the distal, mesial, and proximal
reference levels (% or Unit).
Set the mode for determining high and
low levels (Auto, Max-Min, Histogram).
Setting the Measurement Location Indicator (Indicator)
1.
Press the Indicator soft key.
You can set Indicator to OFF (the measurement location indicator is not displayed) or display a setup menu
with the items whose check boxes you have selected in “Setting the Measurement Items (Item Setup).”
2.
Use the jog shuttle or the SET key to select the item whose measurement location you want to
indicate.
The measurement location of the item you specify is indicated by a cursor.
14.6 Measuring Power
