YOKOGAWA DLM4000 Series User Manual

2-16
IM DLM4038-02EN
Setting the Time Width Mode (Mode)
Set what kind of relationship between the length of time the state condition is met or not met and the
specified reference times (Time1 and Time2) will cause the DLM4000 to trigger.
More than: Triggers when the period during which the state condition is met or not met is longer than
reference time Time1 and the condition changes
Less than: Triggers when the period during which the state condition is met or not met is shorter than
reference time Time1 and the condition changes
Between: Triggers when the period during which the state condition is met or not met is longer than
Time1 but shorter than Time2 and the condition changes
OutOfRange: Triggers when the period during which the state condition is met or not met is shorter than
Time1 or longer than Time2 and the condition changes
TimeOut: Triggers when the period during which the state condition is met or not met is longer than
reference time Time1

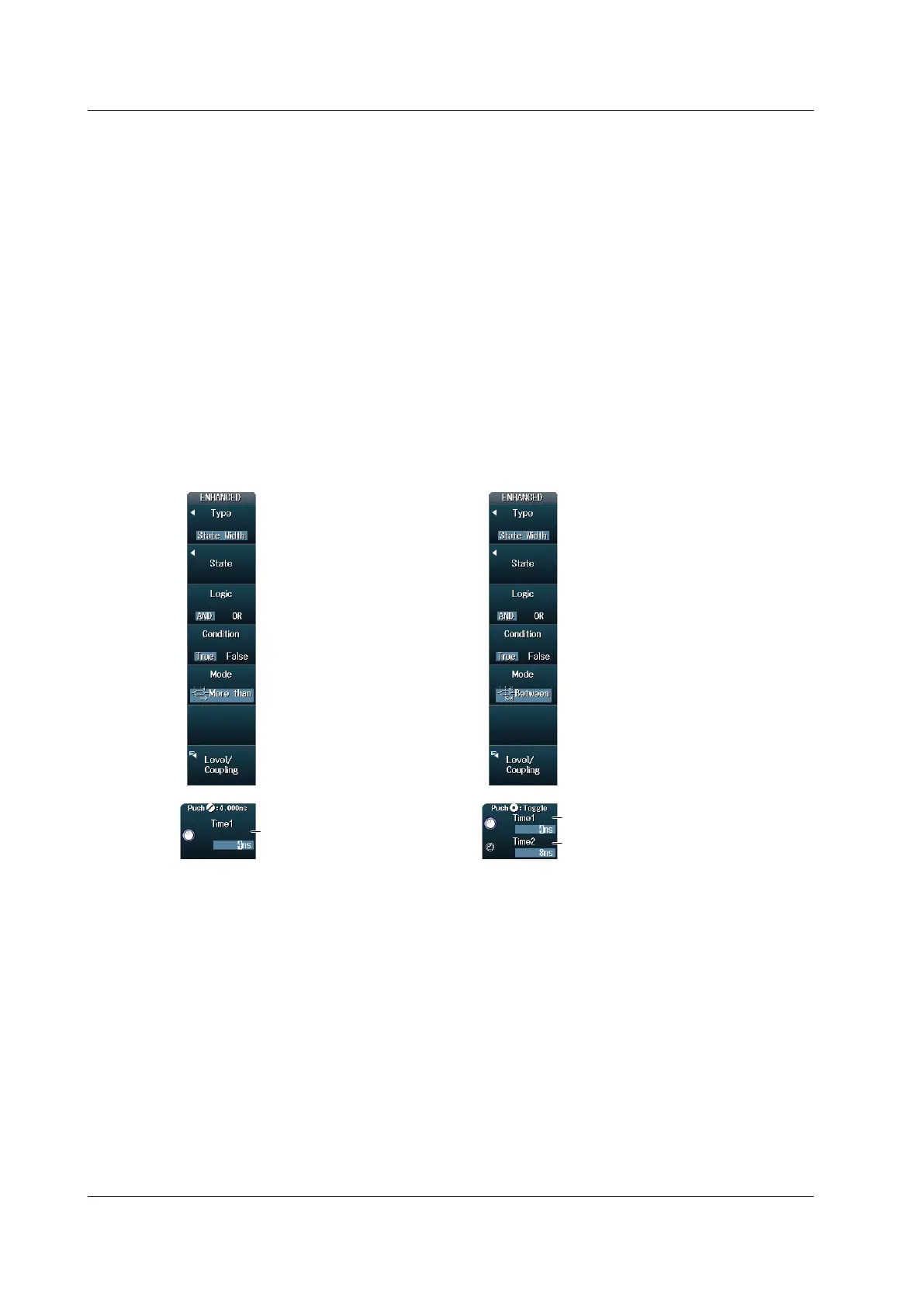

Setting the Reference Times (Time1 and Time2)
When the Time Width Mode Is More than,
Less than, or TimeOut
When the Time Width Mode is Between
or OutOfRange
Set reference time Time1.
Set reference time Time1.
Set reference time Time2.
2.8 Triggering on State Width
