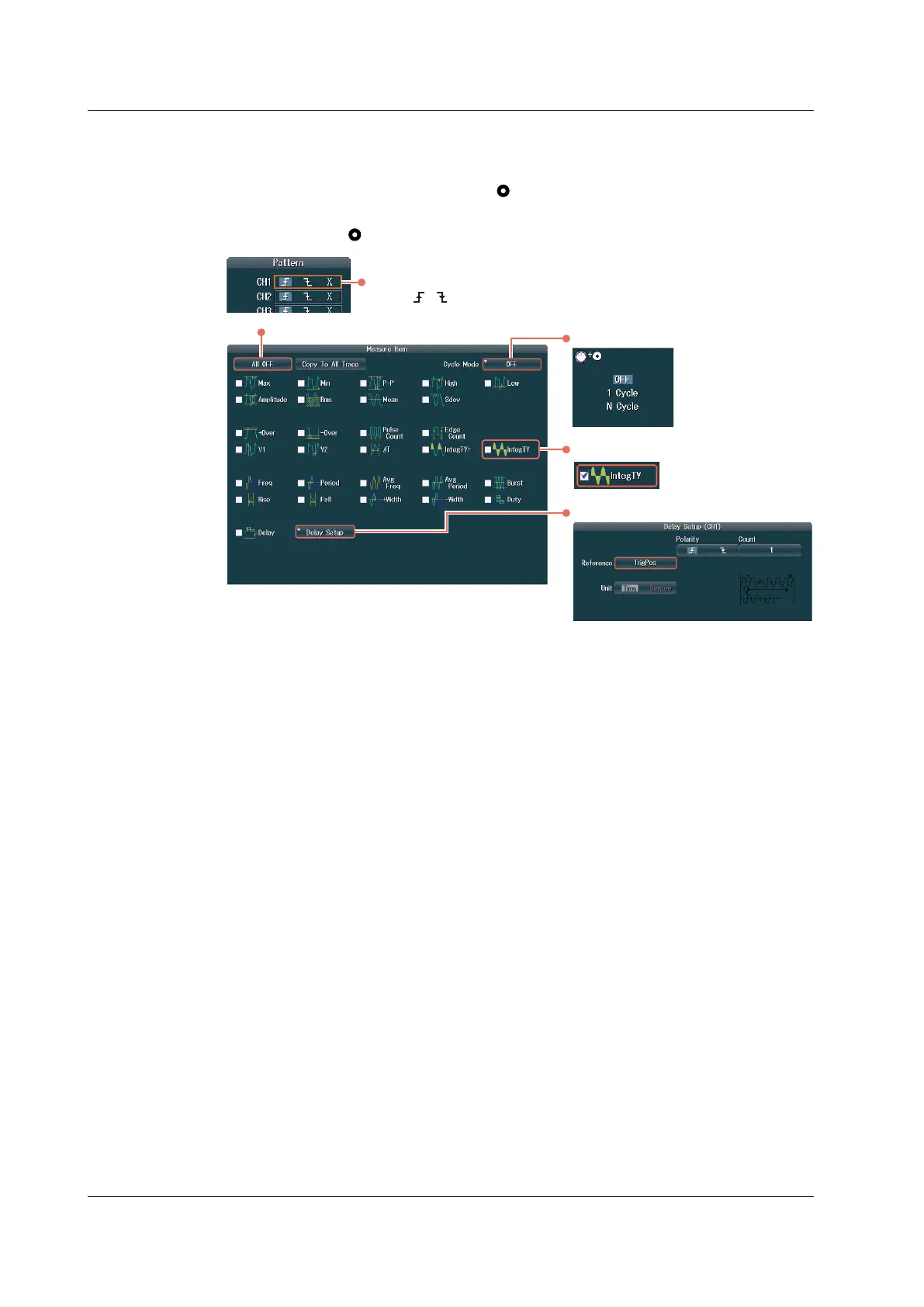

How to Enter Values in Setup Dialog Boxes
1.
Use the keys to display the appropriate setup dialog box.
2.
Turn the jog shuttle, or move the SET key ( ) up, down, left, or right to move the cursor to the
appropriate item.
3.
Press the SET key ( ). The operation varies depending on the selected item.
Displays a selection menu
Selects the item that the cursor is on
Selects or clears the check box
Displays a setup dialog box
Switches the selected item
(Select , , or X.)
How to Clear Setup Dialog Boxes
Press ESC to clear the setup dialog box from the screen.
Scroll Operation
If a vertical or horizontal scroll bar is shown on the screen, you can move the SET key up and down or
left and write to scroll.
Key and Jog Shuttle Operations
