YOKOGAWA DLM4000 Series User Manual

2-44
IM DLM4038-02EN
Trigger Type (Mode)
Sync Mode
Press the Mode soft key and then the Sync soft key.
The DLM4000 triggers on the rising edge of sync pulses.
Start Bit Mode
Press the Mode soft key and then the Start Bit soft key.
The DLM4000 triggers on start bits.
Data Mode

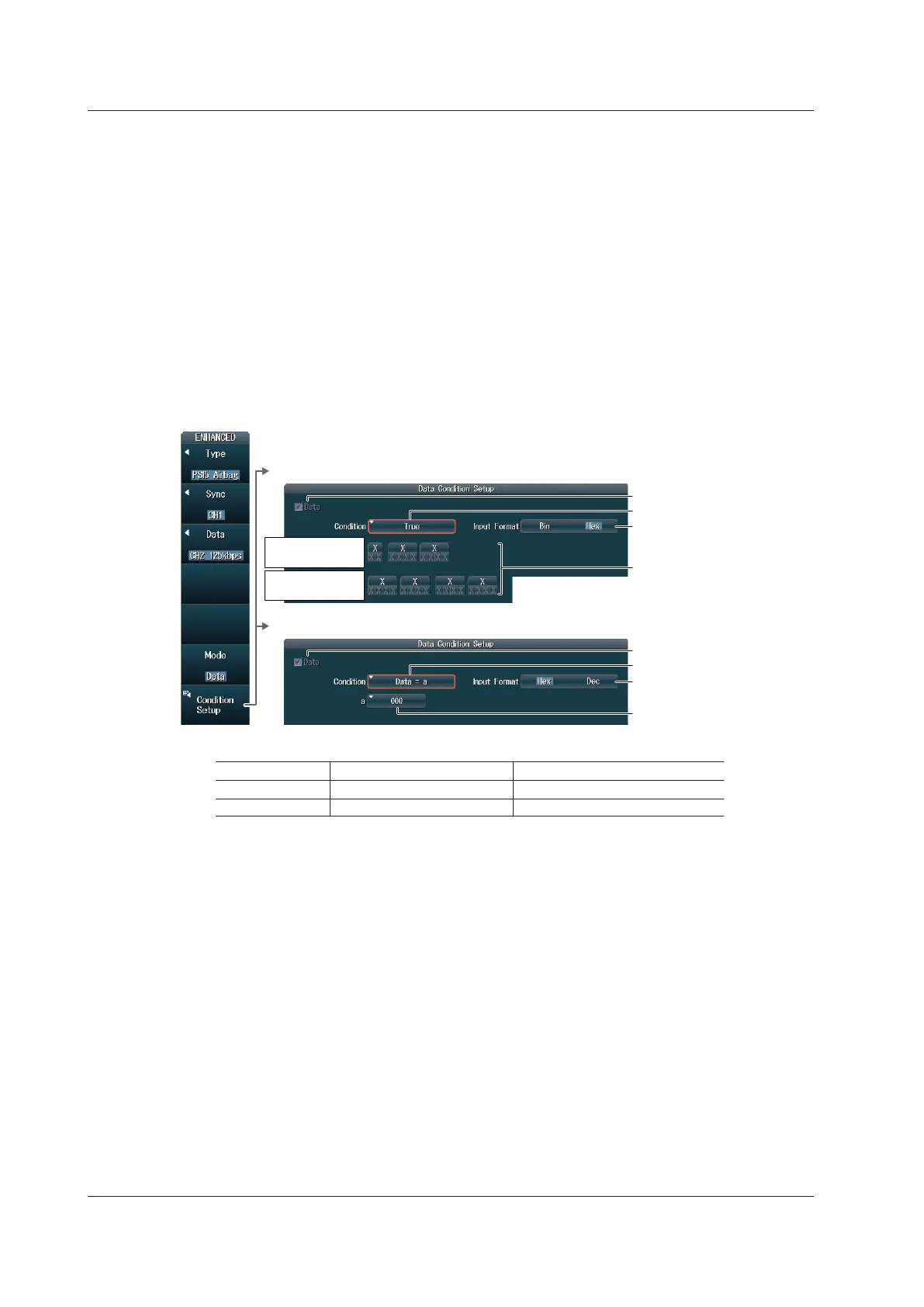

Setting Trigger Conditions (Condition Setup)
Press the Mode soft key, the Data soft key, and then the Condition Setup soft key to display the
following screen.
• When the Comparison Condition Is True
• When the Comparison Condition Is Data = a
Set the data pattern input
format.
Set the data pattern.
Set the comparison condition.
Data (always selected)
Set the input format of
reference value a.
Set reference value a.
Set the comparison condition.
Data (always selected)
When data
length* is 10bit
When data
length* is 16bit
Setting Reference Value a
Data length
*
10bit 16bit
Input format Hex Dec Hex Dec
Selectable range 200 to 1FF –512 to 511 8000 to 7FFF –32768 to 32767
* Set the data length on the data frame source menu on the previous page.
2.14 Triggering on PSI5 Airbag Signals (Option)
