Electrical Angle (Electrical Angle)

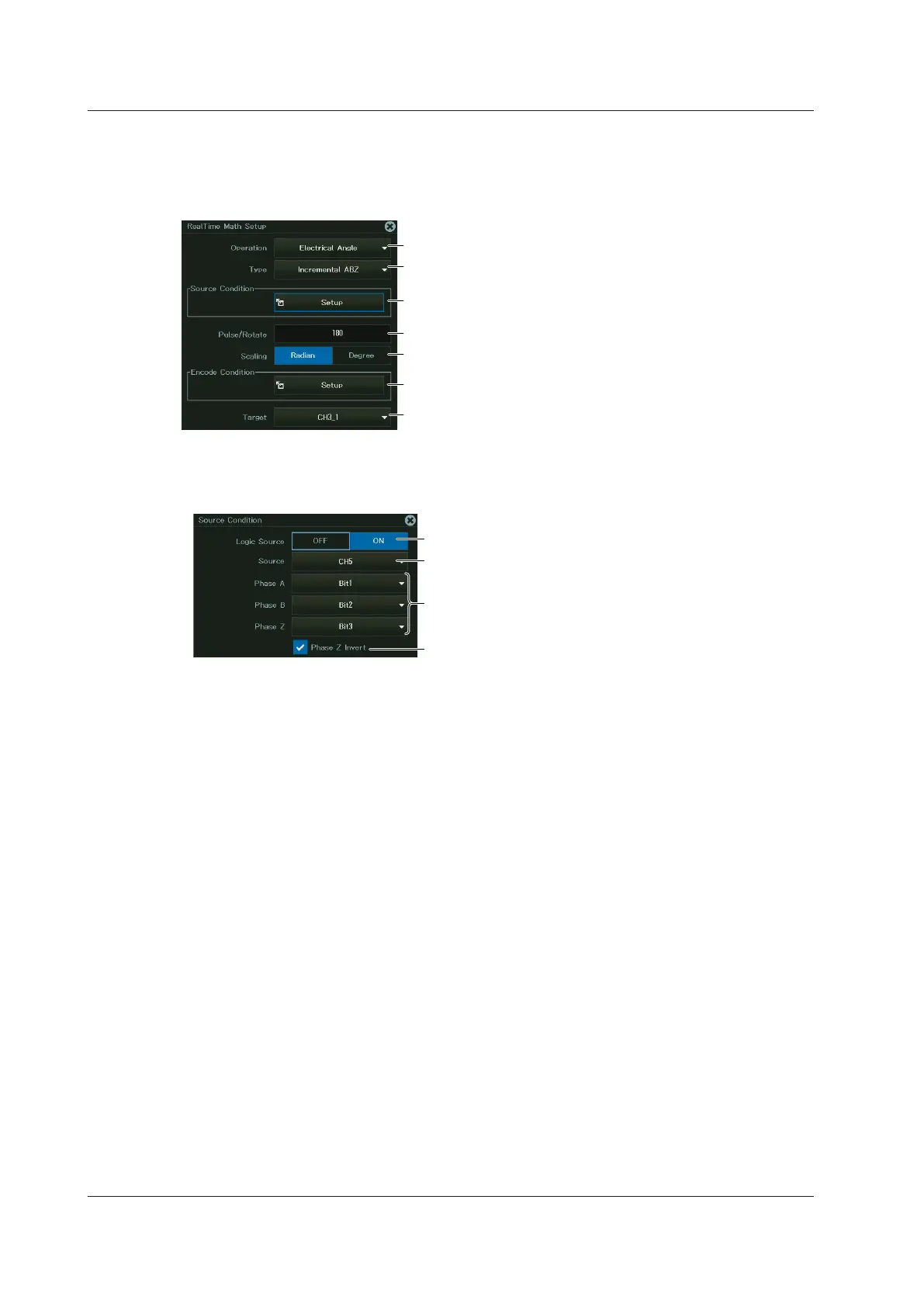

The following screen appears when you select the electrical angle function.
When the Encode Type Is Set to Incremental ABZ, Incremental AZ, Incremental AB, or
Incremental A
Set the encode type II Incremental ABZ, Incremental AZ,
Incremental AB, or Incremental A.
Select Electrical Angle.
See “Setting the Source Conditions.”
Set the number of pulses per rotation.
See “Setting the Encoding Conditions.”
Select the target (CH1 to CH16,¹ RTmath1 to RTmath15²).
Select the scaling (Radian, Degree).
1: You can select channels in which input modules that support basic arithmetic are installed.
2: You can select channels whose numbers are smaller than the channel you are editing.
Setting the Source Conditions
Set the source channel (input channel of a logic module).
(Only the channels with logic modules installed are displayed.)
The logic source is fixed to ON.
Select the bits of logic signals of phases A, B, and Z
(Bit1 to Bit8).
Select the check box when the Z-phase input is inverted.
16.1 Configuring Real Time Math
