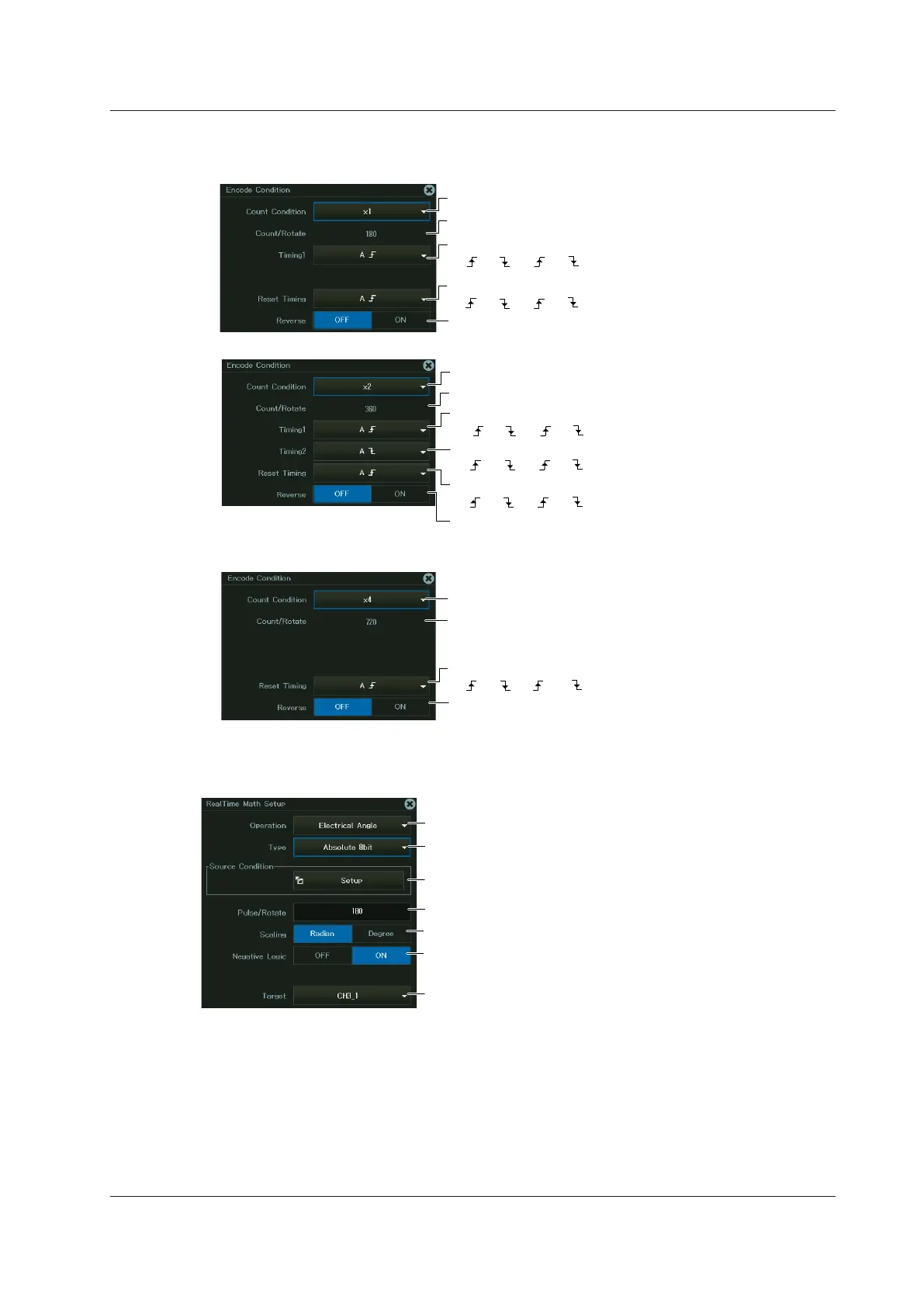

Setting the Encoding Conditions
When the encoding type is Incremental ABZ or Incremental AB and the count condition is x2
Set the count condition to x2.
Select the edge to reset the value on
(A , A , B , B , Z Level²)
Turns rotation direction inversion on or off
When the count condition is x1
When the encoding type is Incremental ABZ or Incremental AB and the count condition is x4
When the encoding type is Incremental AZ or Incremental A and the count condition is x2
Set the count condition to x1.
Turns rotation direction inversion on or off
Select the edge to count pulses on
1
(A , A , B , B )
1 Can be set when the Encoding Type is Incremental ABZ or Incremental AB
2 Can be set when the Encoding Type is Incremental ABZ or Incremental AZ
Select the edge to count pulses on
(A , A , B , B )
Select the edge to count pulses on
(A , A , B , B )
Select the edge to reset the value on¹
(A , A , B , B , Z Level²)
Set the count condition to x2 or x4.
Turns rotation direction inversion on or off
Select the edge to reset the value on¹
(A , A , B ,¹ B , Z Level²)
Number of counts per rotation
Number of counts per rotation
Number of counts per rotation
When the Encode Type Is Set to Absolute 8bit, Absolute 16bit, or Gray Code
Set the encode type to Absolute 8bit, Absolute 16bit, or
Gray Code.
Select Electrical Angle.
See “Setting the Source Conditions.”
Set the number of pulses per rotation.
Turns negative logic on or off
Set the target.
Set the vertical scale unit (Radian, Degree).*
* This setting is shared with the Rotary Angle setting.
