Setting the Linear Scaling (Linear Scale)
5.

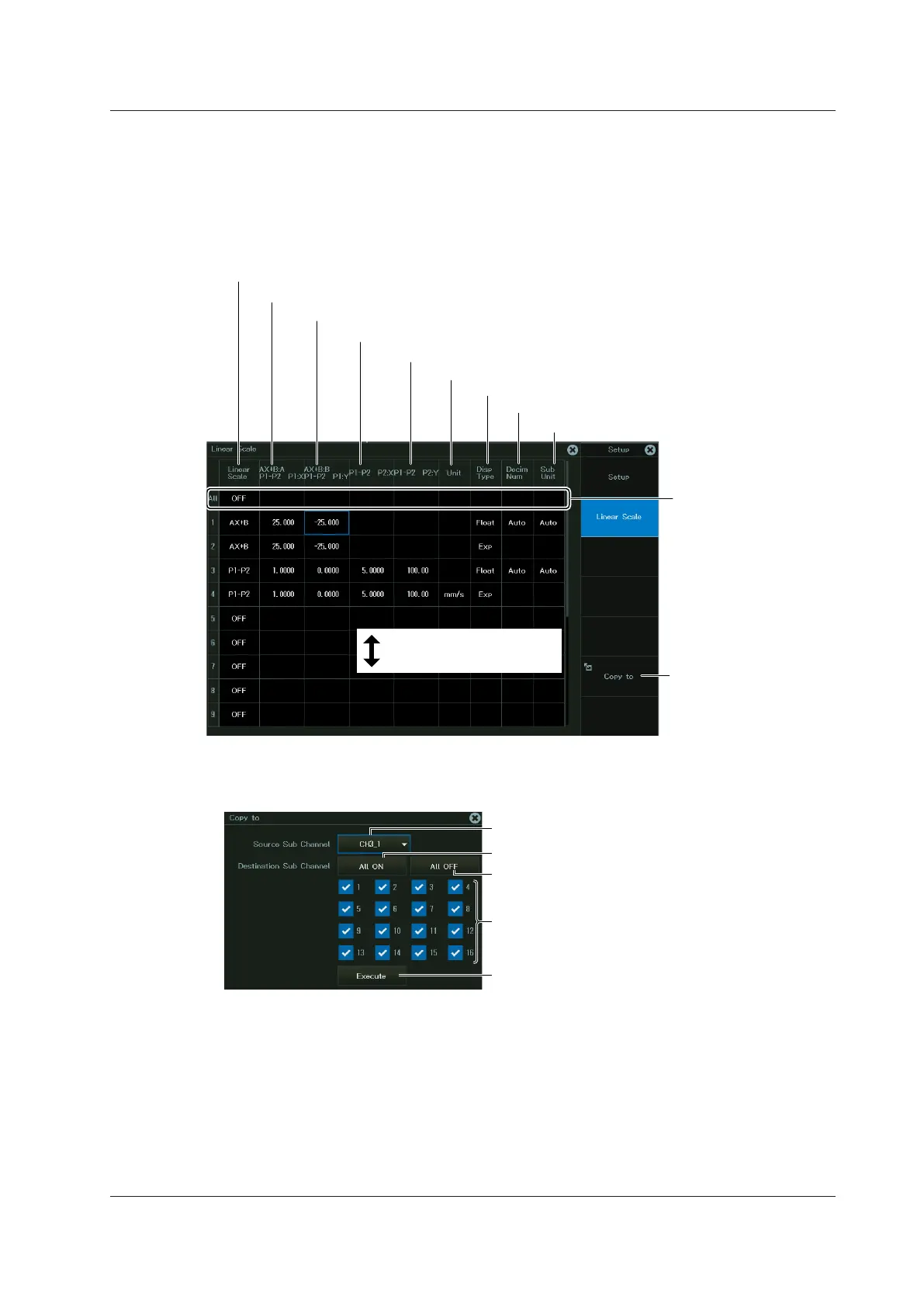

Tap Linear Scale, or press the soft key. A linear scaling setup screen appears. For
details on the settings, see “Linear Scaling” in section 2.1.
6.
Tap the items of each sub channel. Use the displayed list (options) or input box to set the
items.
Unit prefix
Number of decimal places
Display mode
Unit
Scaled value of point P2
Measurement value of point P2
Offset value B or scaled value of point P1
Scaling coefficient A or measured value at point P1
Linear scaling mode
To set all the sub
channels to the same
setting, change the
settings in the All row.
Slide to display channels
that do not fit in the screen.
See “Copying
Channels.”
Copying Channels (Copy to)
7.
Tap Copy to, or press the soft key. The following screen appears.
Press to select all sub channels.
Press to clear all sub channels.
Select the sub channels that
you want to copy to.
Starts copying
Select the source sub channel.
The setup and linear scale settings are copied.
2.2 Configuring Voltage Measurements (on 16-CH temperature/voltage input modules)
