YOKOGAWA ScopeCorder DL950 User Manual

2-53
IM DL950-02EN

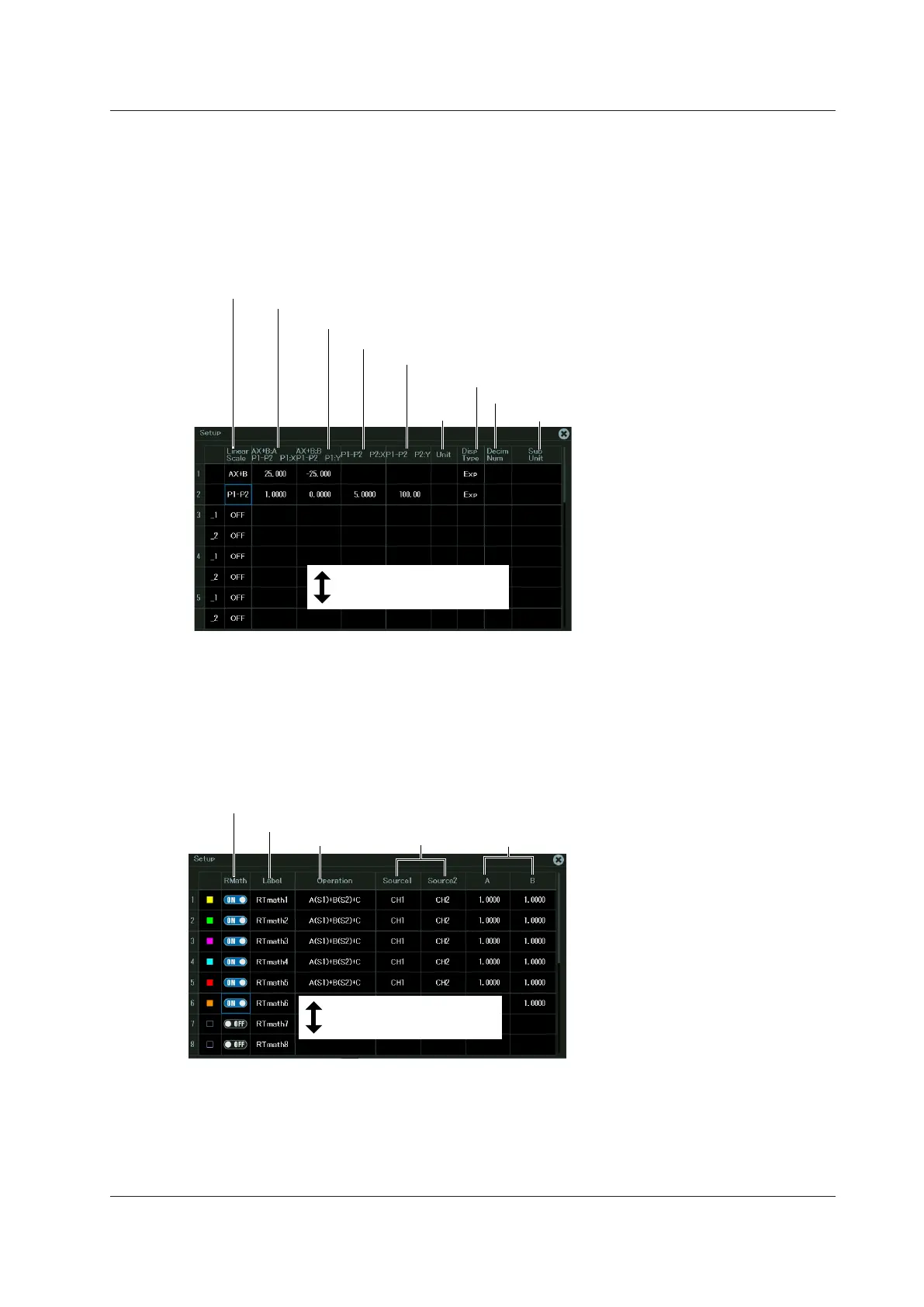

Setting the Linear Scaling (Linear Scale)
2.
Tap Linear Scale, or press the soft key. The following screen appears.
For details on the settings, see the explanation of the measurement items in section 2.1 and
later.
3.
Tap the items of each channel. Use the displayed list (options) or input box to set the items.
Scaled value of point P2
Linear scaling mode
Offset value B or scaled value of point P1
Scaling coefficient A or measured value at point P1
Measurement value of point P2
Unit
Display mode
Slide to display channels
that do not fit in the screen.
Number of decimal places
Unit
Unit prefix
Configuring Real Time Math Settings (RealTime Math) (/G03, /G05
option)
2.
Tap RealTime Math, or press the soft key. The following screen appears.
3.
Tap the items of each channel. Use the displayed list (options) or input box to set the items.
For details on real time math, see chapter 16.
Turns real time math on or off
Equation
Display label
Source channels
Slide to display channels
that do not fit in the screen.
Constants
2.12 Displaying the All Channel Setup Menu
