CELL-DYN

3/35 Sample Loader TS Guide 9140234B-June 1997

VERIFICATION PROCEDURES

VP - 3.12 Platen to Laser Shield Check

3 - 48

Book TOC

Go Back

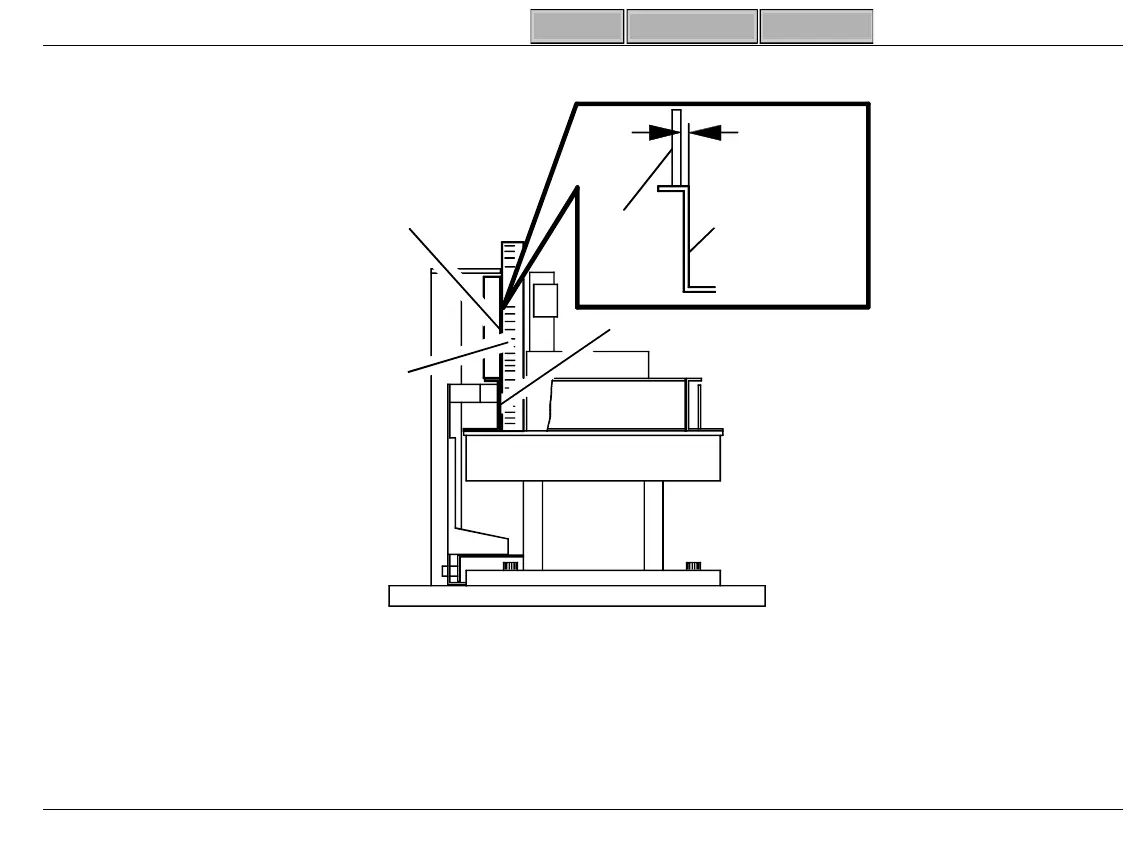

Figure 3-21 Laser Shield Check

--- END ---

End View of Loader

Barcode

Window

Platen

Wall

.050-.060"

(1.25-1.5mm)

Insert Feeler

Gau

e (.050-.060")

Between Strai

e and Barcode

Window

Platen Wall

Strai

SL-168B
