CELL-DYN
®
3/35 Sample Loader TS Guide 9140234B-June 1997
VERIFICATION PROCEDURES
VP - 3.17 X-Axis Solenoid to Rack Guide Adjustment
3 - 58
3
Search
Book TOC
Go Back
f. Check Left Rack Guide in same manner. Remember to stop Solenoids before drivin
g
to left
(Limit) Sensor.
g
. Repeat check (“VP - 3.8 Rack to Laser Shield Check” (Pa
g
e 3-39).
h. Repeat
Steps 2a-2g
for Left (Limit) Sensor.

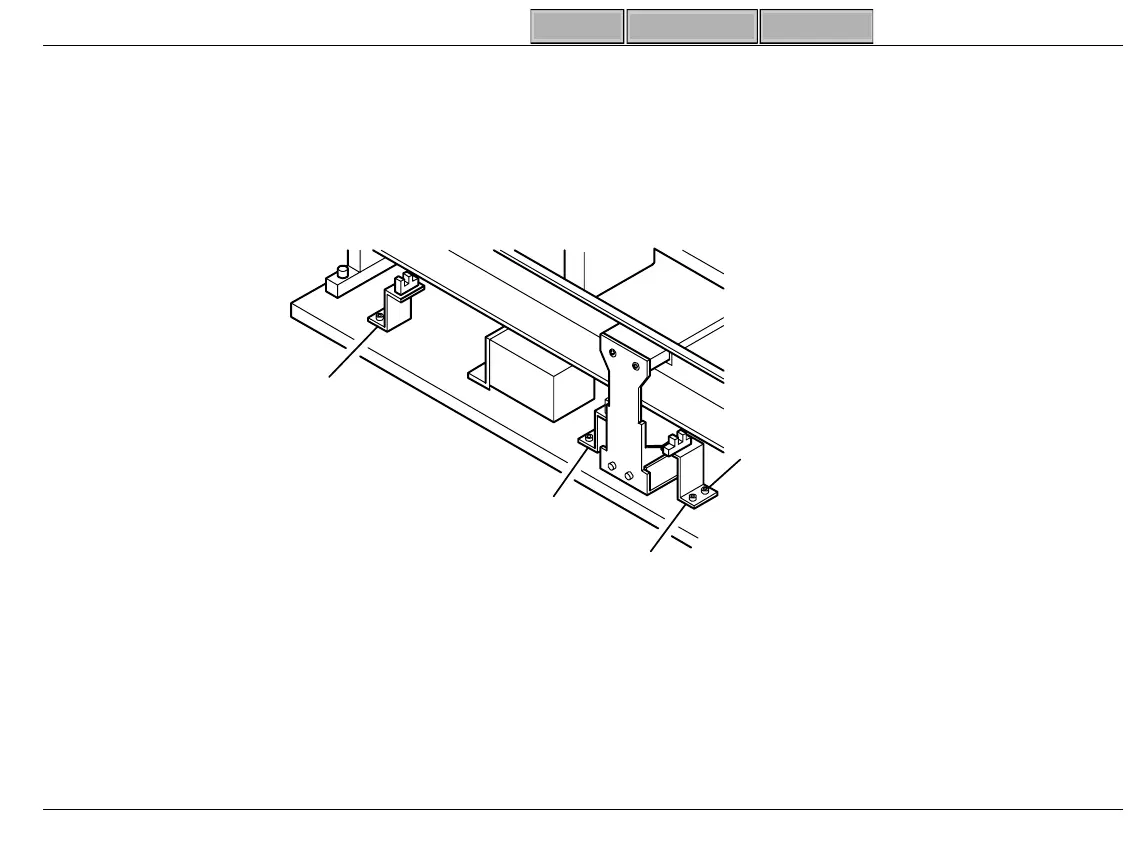

Figure 3-26 X-Axis Sensors
--- END ---
Ri
g
ht End
Sensor
(Home)
Left End
Sensor
(Limit)
Slowdown
Sensor
DO NOT
ADJUST
Loosen (2)
Allen Screws
(2.5mm)
SL-173B
