CELL-DYN

3/35 Sample Loader TS Guide 9140234B-June 1997

VERIFICATION PROCEDURES

VP - 6.3 Mixing Home Sensor Check/Adjustment

3 - 90

Book TOC

Go Back

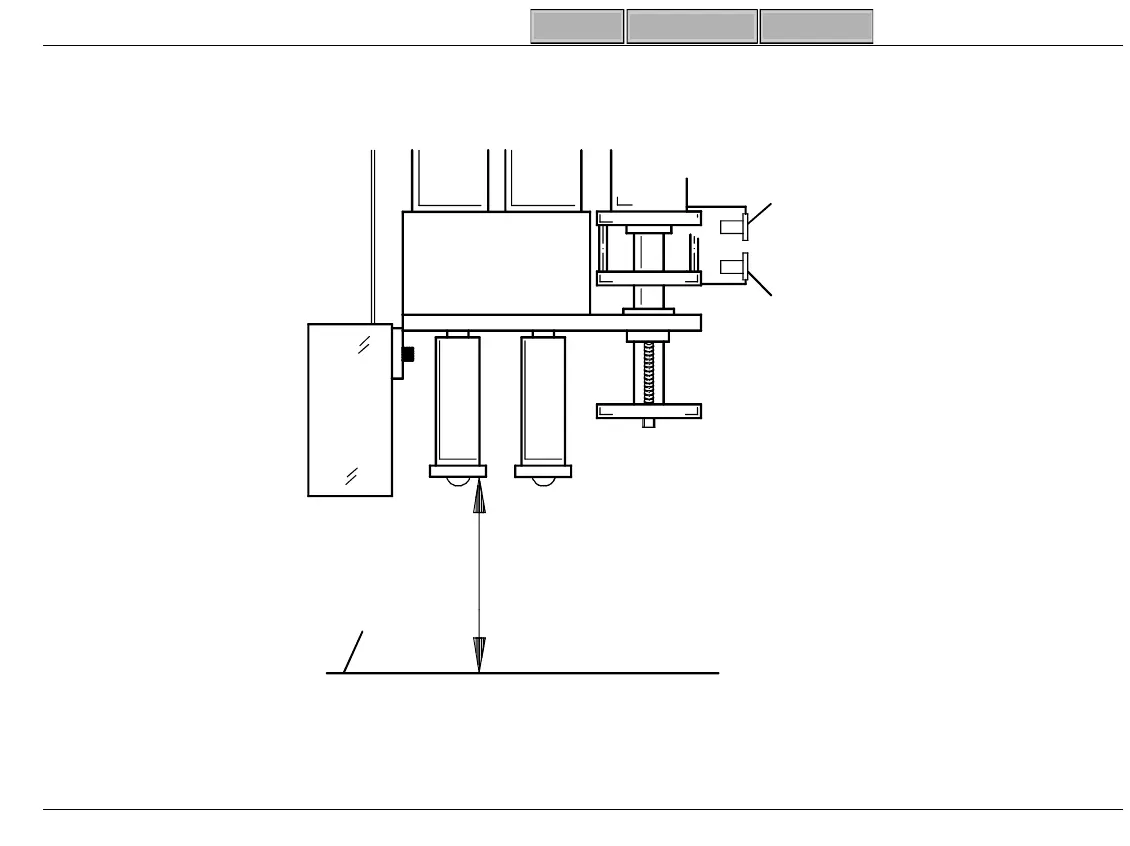

Figure 3-44 Mix Paddle to Platen Clearance

--- END ---

Mountin

Screws on

Opposite Side of

Sensor Mountin

Bracket

Limit

Sensor

Home

Sensor

Adjust Home Sensor To Set

Mix Paddle - Platen Clearance

E & F= 3.8 in. (96.5mm)

G= 3.5 in. (90.0mm)

Platen Surface

SL-222
