CELL-DYN
®
3/35 Sample Loader TS Guide 9140234B-June 1997
VERIFICATION PROCEDURES
VP - 9.2 Vent Wash Block Check/Adjustment- (F Loader Only)
3
Search
Book TOC
Go Back

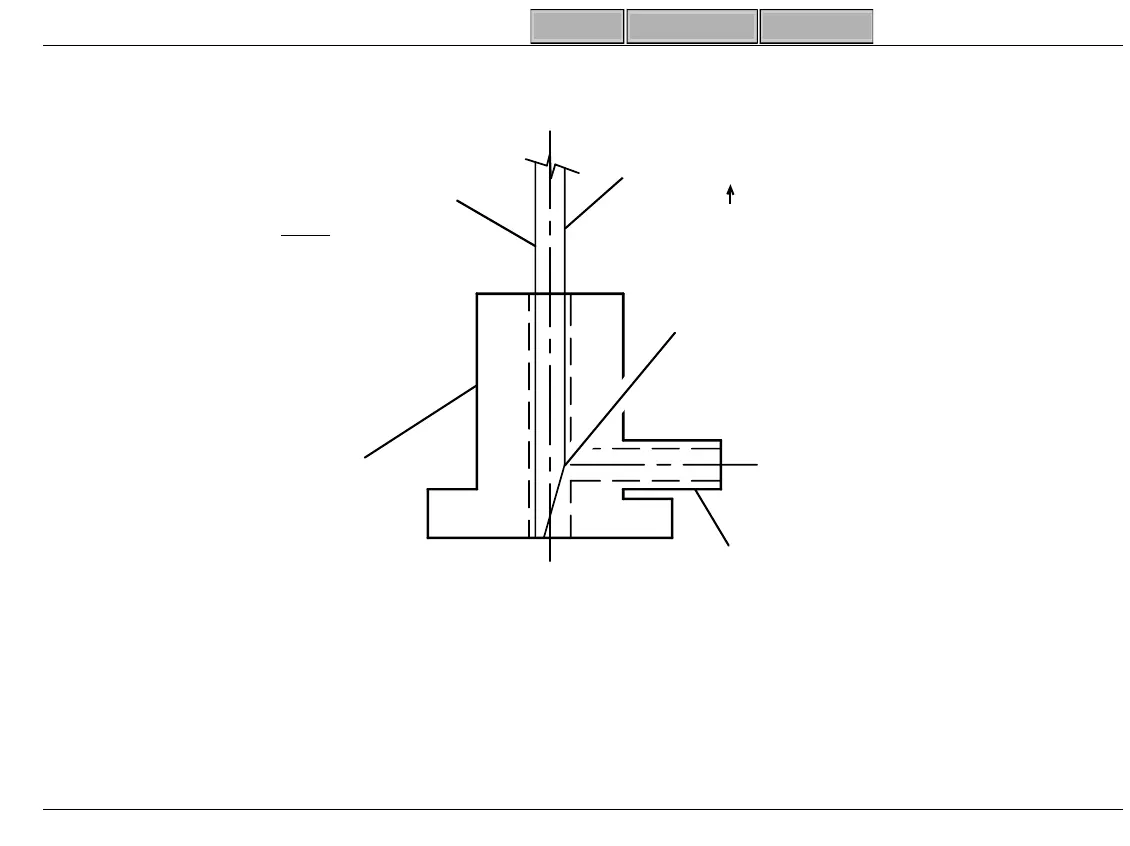

Figure 3-69 Vent Needle Orientation
3. Set up check accordin
g
to Fi
g
ure 3-70, Pa
g
e-3-131.
4. Verify Needle is centered in tool.
SL-273
Needle at
Home (N )
Vent Needle
Has Hole at
Bottom of Probe
NOT
at Side
Vent Wash
Block
Wash Port
Needle Hole
Faces Wash Port
