CELL-DYN
®
3/35 Sample Loader TS Guide 9140234B-June 1997
VERIFICATION PROCEDURES
VP - 10.2 Tube Positioning Arm Alignment
3 - 140
3
Search
Book TOC
Go Back

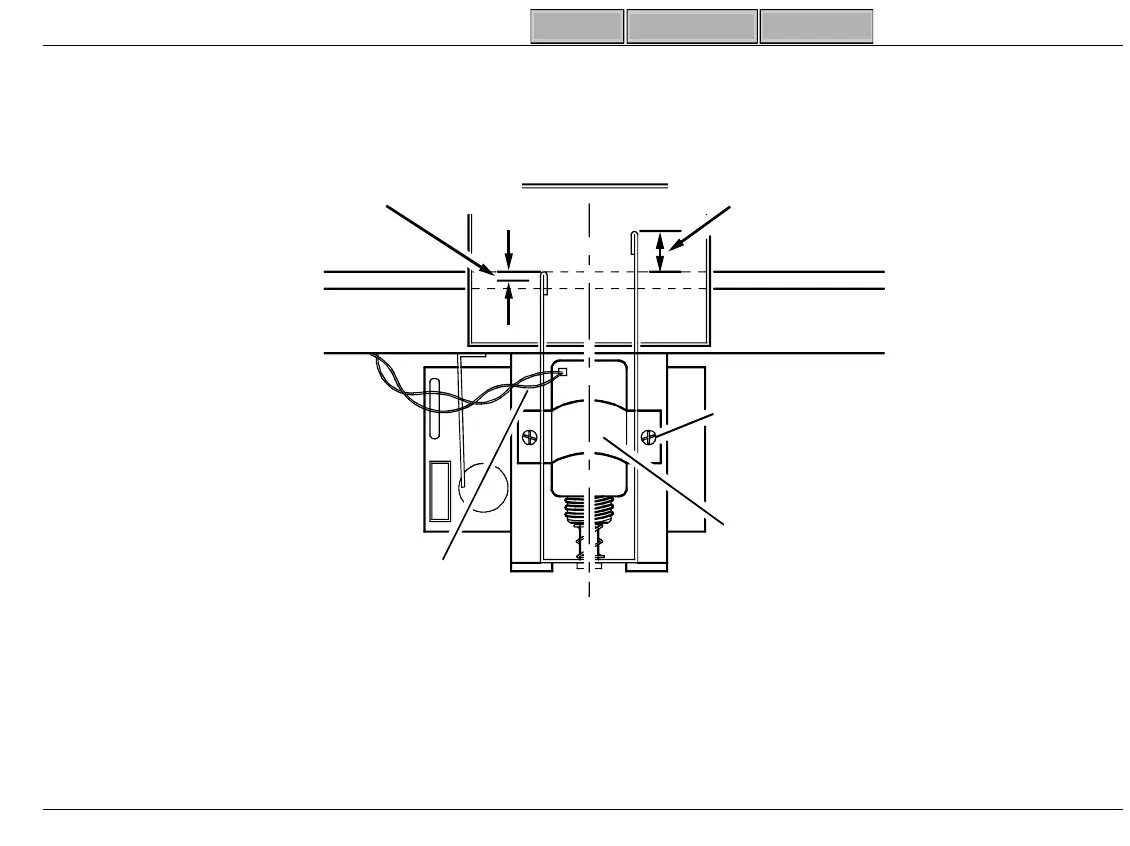

Figure 3-75 Tube Positioning Arm Dimensions
--- END ---
Loosen Solenoid
Clamp Screw
Solenoid Strai
g
ht
in Clamp
C
L
Platen Wall
Tower
Top View - From Rear of Instrument
SL-217C
Wires Not
Dama
g
ed
Clamp
Flush or Slightly
Recessed from Platen
Wall (Non-Energized)
0.32-0.40in (8-10mm)
from Platen Wall
(Energized)
[NON- CE MARK]
F Sample Loader
