CELL-DYN

3/35 Sample Loader TS Guide 9140234B-June 1997

VERIFICATION PROCEDURES

VP - 14.1 Y-Axis Operation Check/Adjustment

3 - 162

Book TOC

Go Back

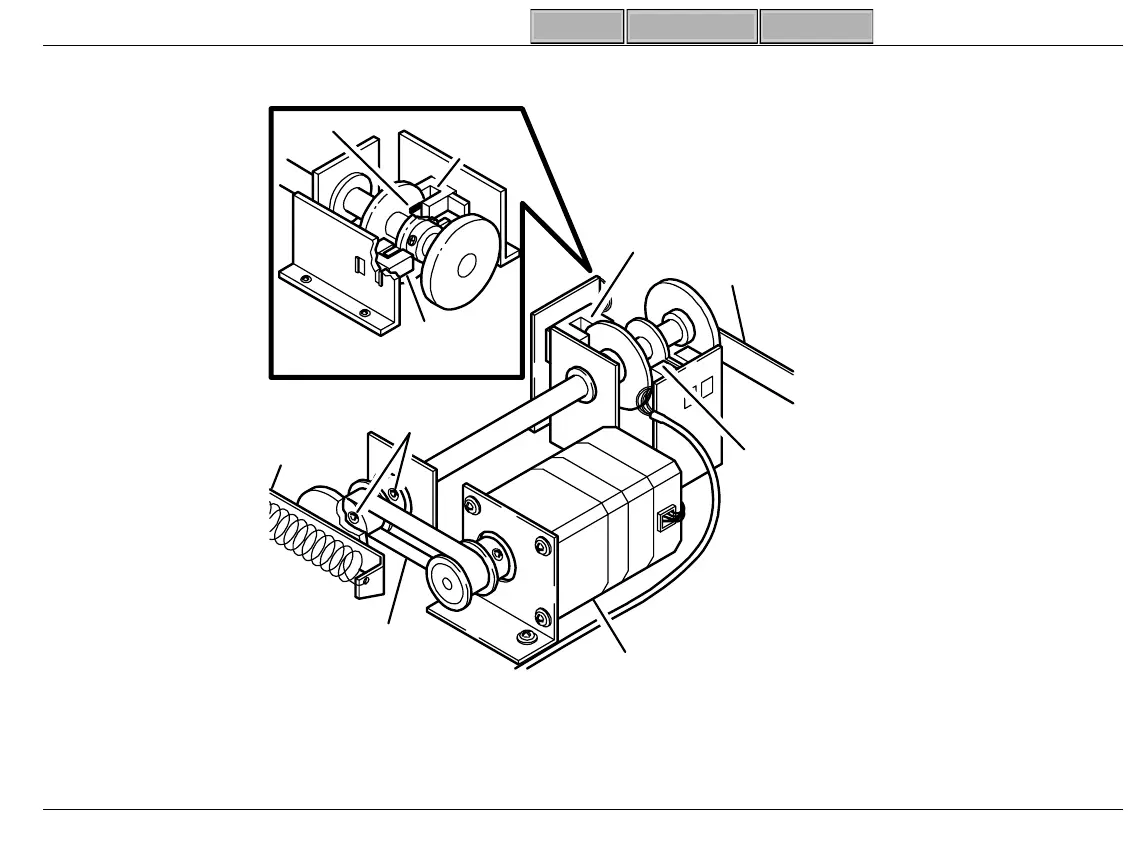

Figure 3-86 Y-Axis Alignment

END

SL-119D

Rear

Connecting

Bar

Front

Connecting

Bar

Slot

Motor

Limit

Sensor

Home

Sensor

Home

Sensor

Limit

Sensor

Loosen

Set Screws

Belt

Main Page

PROPRIETARY INFORMATION2
