Commonly Used Procedures 6
Agilent Nano Indenter G200 User’s Guide 6-17

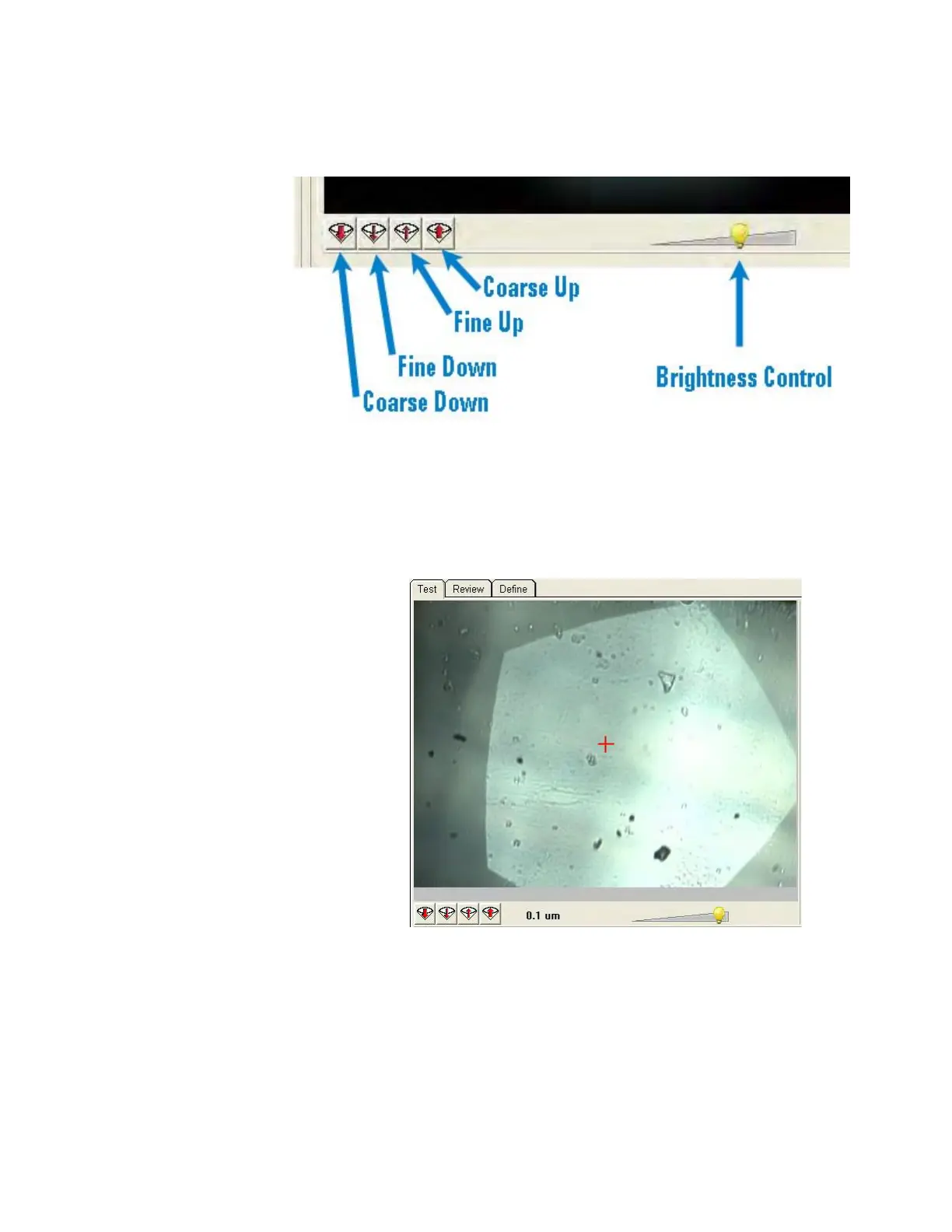

Figure 6-25Microscope focus and brightness controls
When the image is in focus, it should appear as shown in Figure 6-26.
Figure 6-26Image in focus
21 Find a location on the sample that is free of contaminants and dust.
To move the viewing area, place the cursor over the red crosshairs in
the center of the video image, click, and slowly drag the cursor in the
direction of the area you want to view.
