Quick Start Guide 2
Agilent Nano Indenter G200 User’s Guide 2-15
9 Locate your sample. Avoid touching the sample with your fingers,
using tweezers if necessary.
10 Place the sample on the microscope slide and press down on the
sample with wooden contacts so that it seats in the epoxy, as shown
in
Figure 2-17.

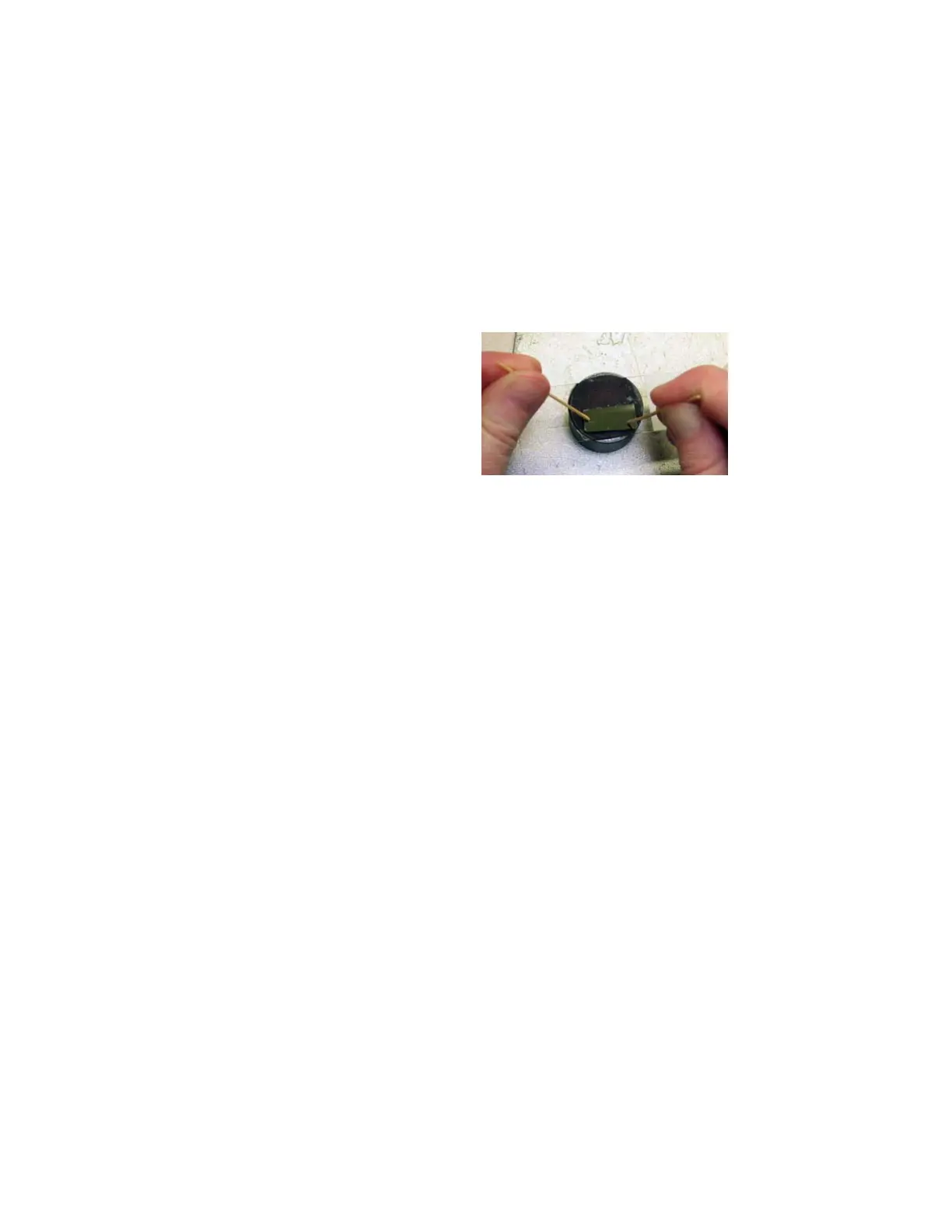

Figure 2-17Seating the sample in epoxy
11 Allow the epoxy to fully cure.
To remove the sample or microscope slide from the sample disk and
reuse the sample disk for subsequent testing, heat the sample disk on a
heating element and remove the sample after the crystalbond has
melted. You can leave the remaining crystalbond on the sample disk for
the next sample.
