Quick Start Guide 2
Agilent Nano Indenter G200 User’s Guide 2-20
1 The levers for adjusting the microscope apertures are located on the
front of the machine. Adjust the aperture levers to their widest
(top-most) settings, as shown in
Figure 2-23.

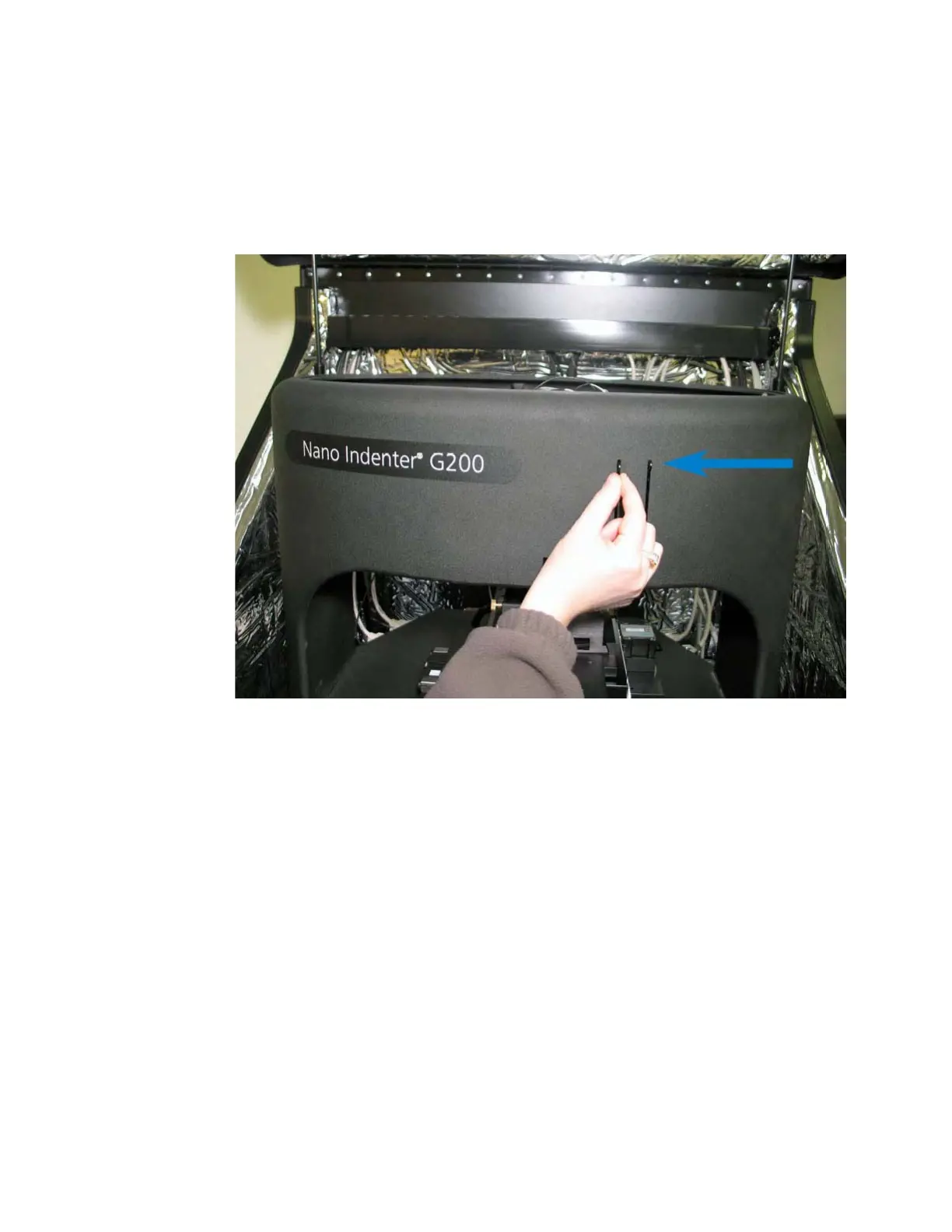

Figure 2-23Adjust microscope aperture levers to top position
Make sure that the Nano Video HandSet mode shows the video image
(not the schematic template of the sample tray). If the schematic
template is shown in the handset area, right-click in the area and select
Nano Video HandSet from the resulting pop-up menu.
2 Adjust the brightness control under the handset area in NanoSuite
(shown in
Figure 2-24 on page 2-21) all the way to the brightest
setting.
If the system is idle for a while, the light bulb icon in the brightness
control will dim and deactivate. To activate the control, click on it.
