Quick Start Guide 2
Agilent Nano Indenter G200 User’s Guide 2-21

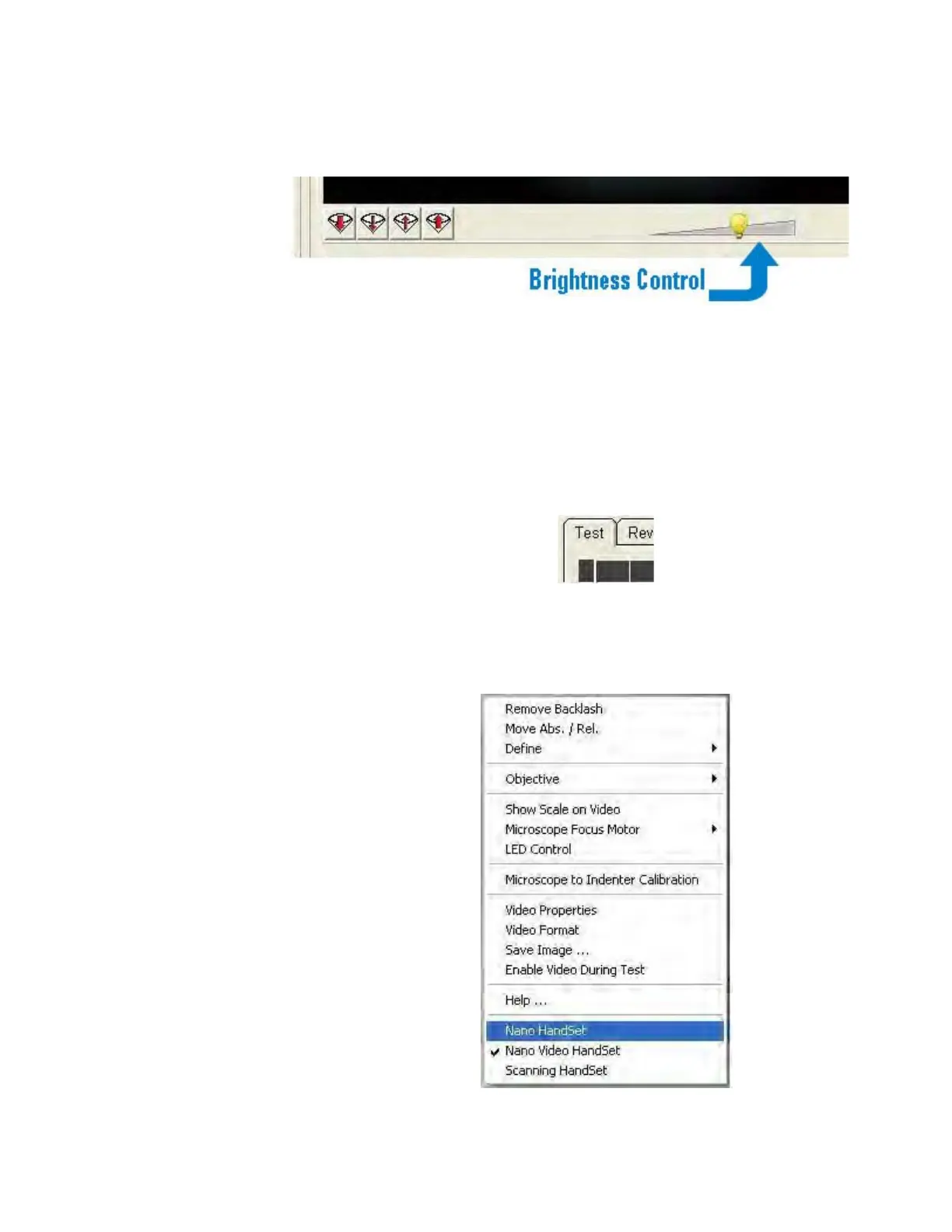

Figure 2-24Adjust brightness control to highest setting
Use NanoSuite to position the center sample (reference sample) under
the microscope.
3 In NanoSuite, click the Test tab as shown in Figure 2-25.
Figure 2-25Select Test tab in NanoSuite
4 In the handset area in the left panel, right-click and select Nano
HandSet from the resulting pop-up menu, as shown in
Figure 2-26.
Figure 2-26Select Nano Handset from right-click meu
