Agilent Technologies Nano Indenter G200 User Manual

Quick Start Guide 2
Agilent Nano Indenter G200 User’s Guide 2-22

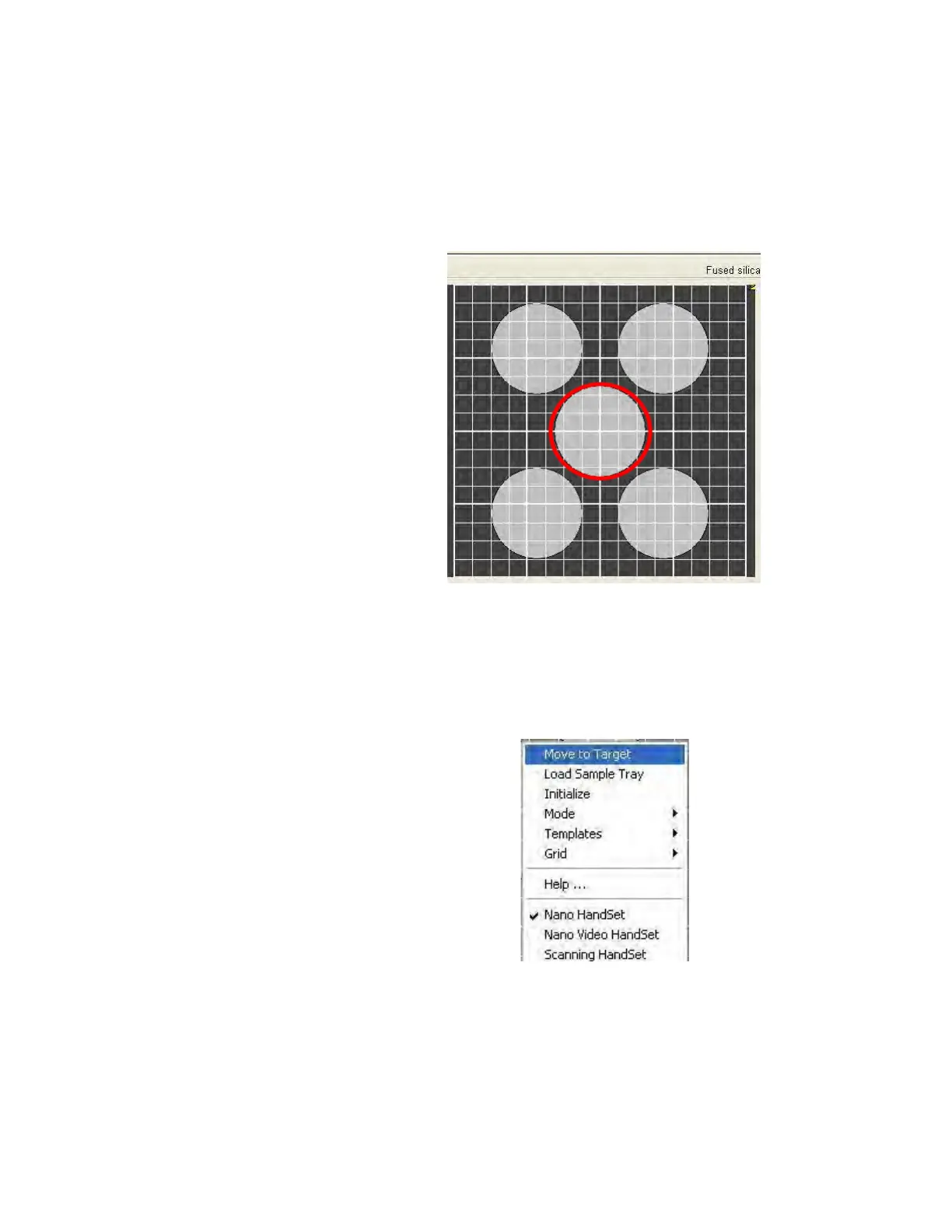

5 Click on the center circle in the schematic map, circled in red in
Figure 2-27, which corresponds to the center (reference) sample in
the sample tray.
Figure 2-27Nano Handset schematic map with center sample circled in
red
6 Right-click anywhere on the schematic map and select Move to
Target from the resulting pop-up menu, as shown in
Figure 2-28.
Figure 2-28Select Move to Target from right-click menu
7 Visually confirm that the microscope is over the center sample disk
in the sample tray. The microscope does not have to be directly over
the sample at this point.

Agilent Technologies Nano Indenter G200 Specifications

General

Brand	Agilent Technologies
Model	Nano Indenter G200
Category	Laboratory Equipment
Language	English
