Agilent Technologies Nano Indenter G200 User Manual

NanoSuite Explorer D
Agilent Nano Indenter G200 User’s Guide D-49
3 Select 1-NanoSuite Training > Thin Film Sample 2 from the
Filename drop-down menu as shown in
Figure D-59.

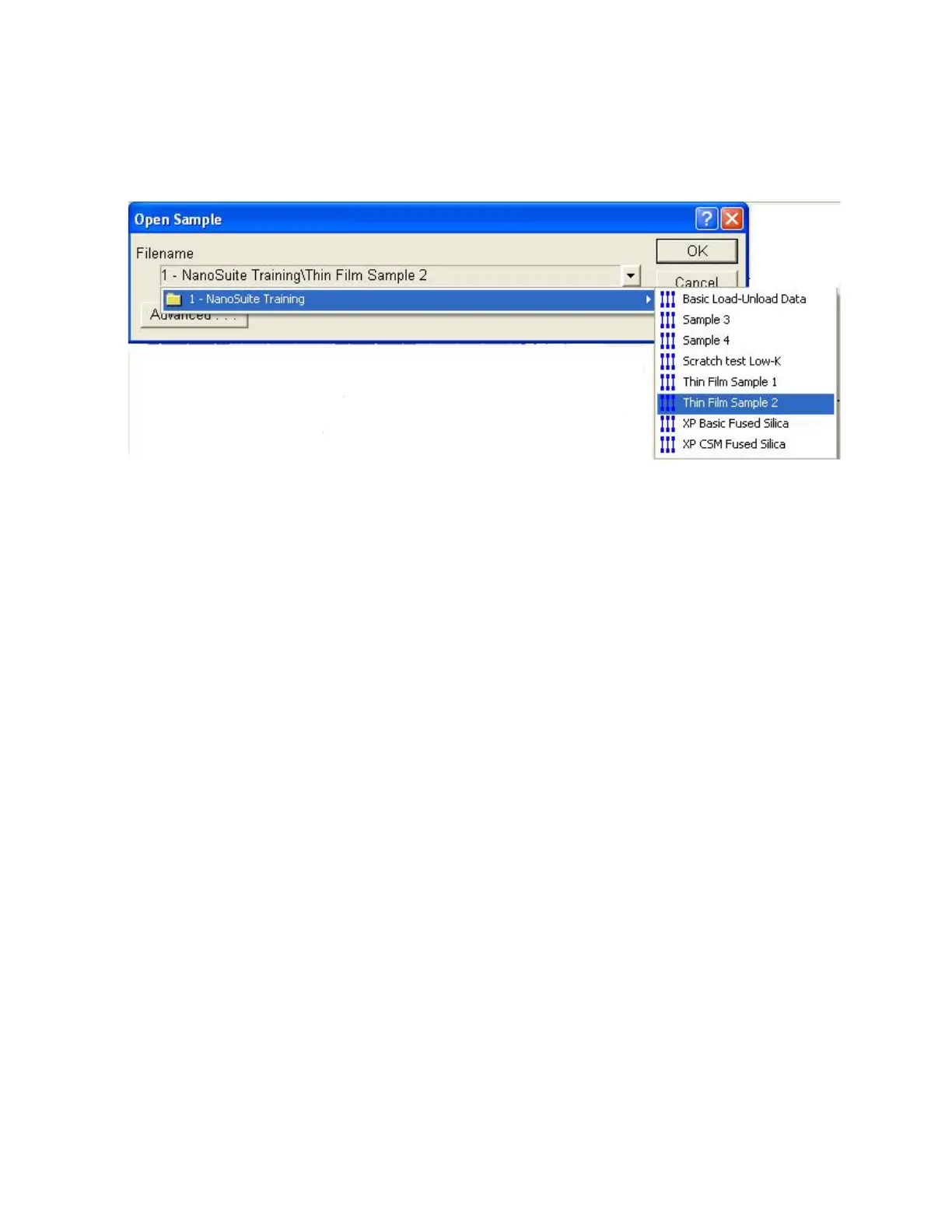

Figure D-59Open Sample dialog box
4 Click OK.
5 Choose Method > Save Method As....
6 In the Save Method File As dialog box, append -strainrate to the
end of the current filename.
7 In the Save Method File As dialog box, click the Create New Folder
icon.
8 Save the new folder as Modified Methods and press Enter.
9 Double-click on the Modified Methods folder to open it.
10 In the Save Method File As dialog box, click Save.
11 Click the Define tab to reveal the Define page.
12 Click the Configuration tab.
13 Click the Channels folder.
14 In the Settings pane, click on the row for the Displacement Into
Surface channel.
15 Right-click on that row and select Copy from the menu, as shown in
Figure D-60 on page D-50.
