NanoSuite Explorer D
Agilent Nano Indenter G200 User’s Guide D-53
48 Select Save Method from the Method menu.
49 Click the Review tab to reveal the Review page.
50 Select Recalculate Sample from the Tools menu.

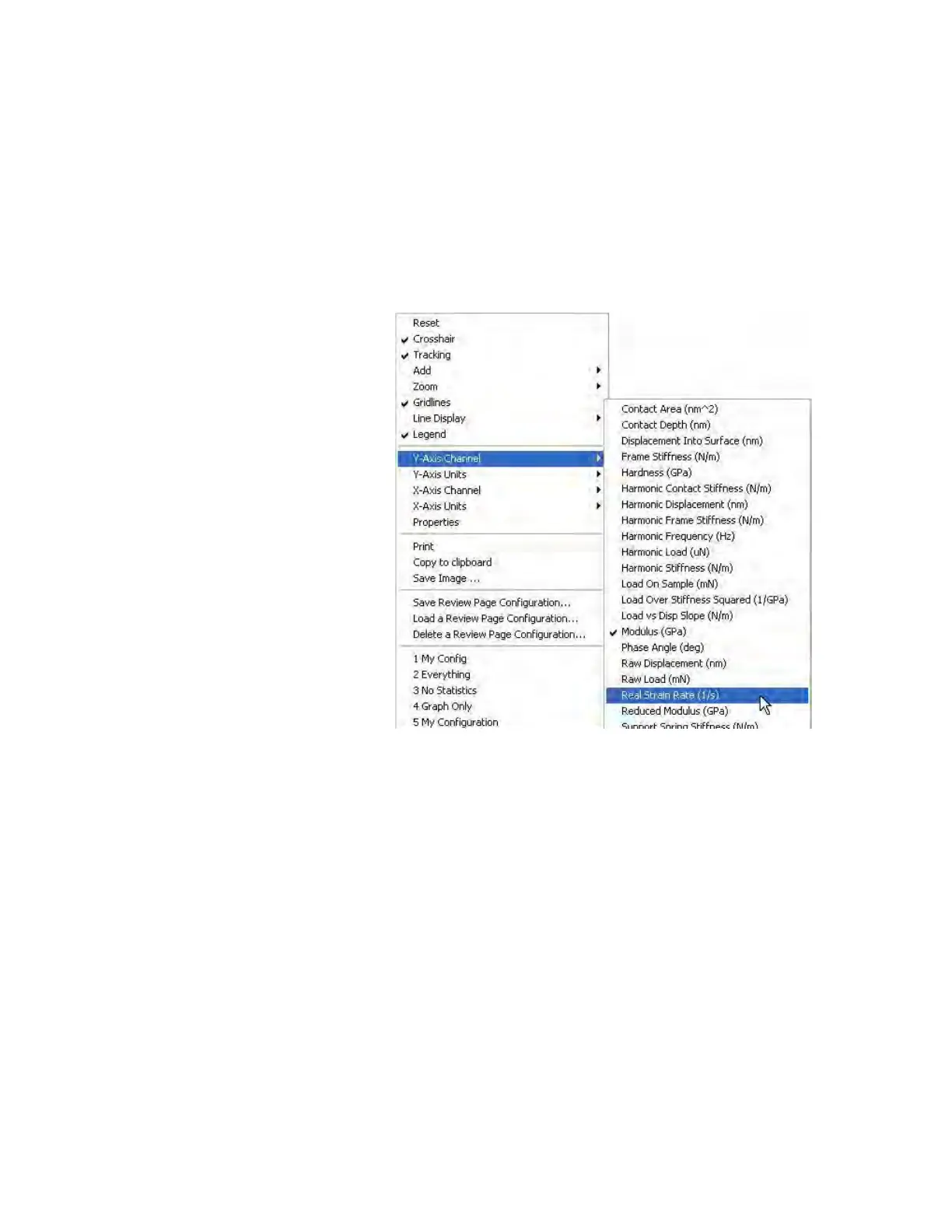

51 Right-click on the graph and select Y-Axis Channel > Real Strain
Rate (1/s) from the resulting pop-up menu, as shown in
Figure D-65.
Figure D-65Set Y-Axis Channel to Real Strain Rate
52 Right-click in the Legend pane and select Select all Tests from the
resulting pop-up menu.
53 Click and drag a zoom box around the data at the bottom of the graph
as many times as you need to reveal the data, as shown
Figure D-66
on page D-54.
