Scratch Testing E
Agilent Nano Indenter G200 User’s Guide E-5

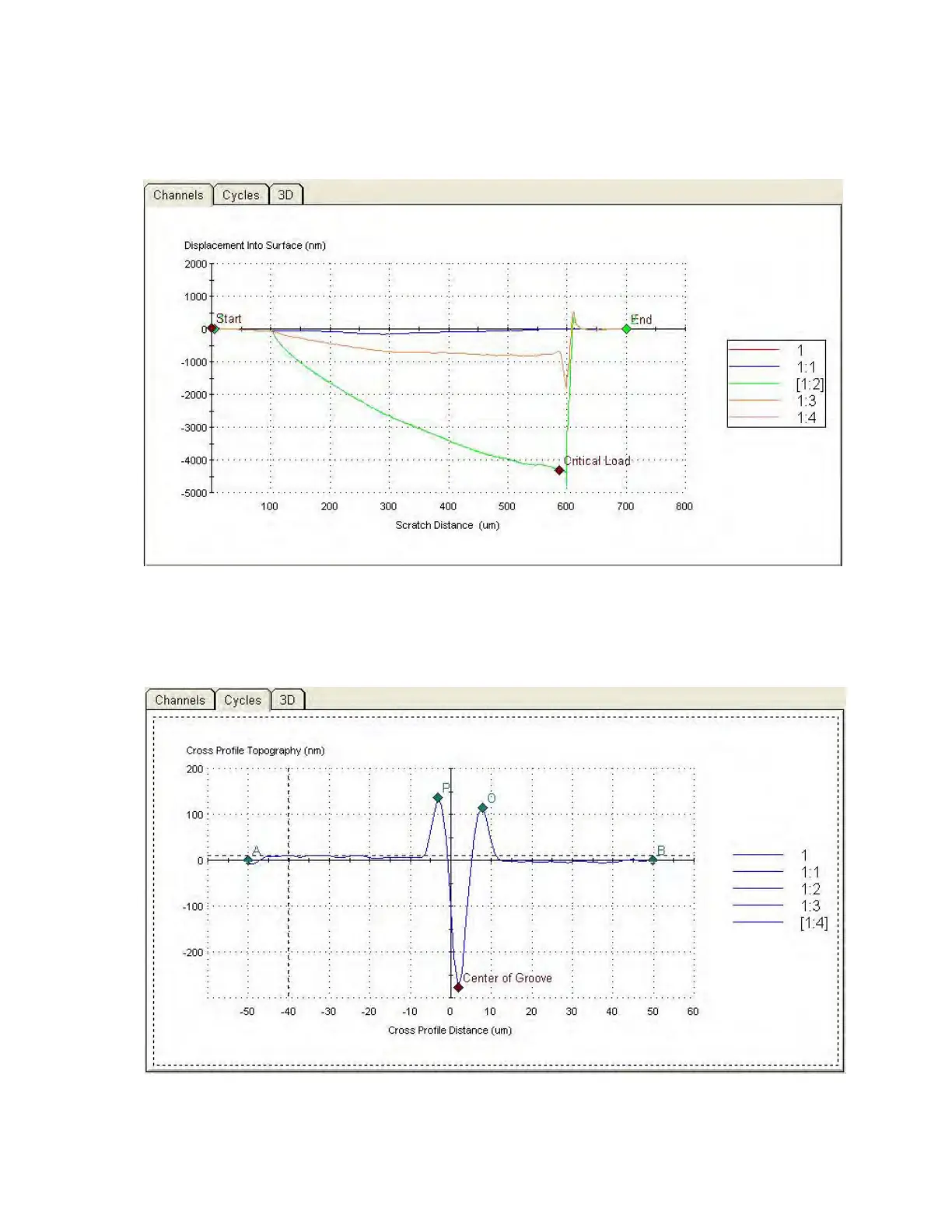

Figure E-4Default scratch testing graph
8 Click the Cycles tab. A graph similar to the one shown in Figure E-5
will display.
Figure E-5Default cross profile topography plot
