9 While watching the handset area in NanoSuite,
a Turn the height-adjustment thumbwheel for the rear left sample
disk from the right to the left to raise the sample disk in the
sample tray.
b Simultaneously lower the right aperture lever to maintain a
medium-brightness image in the handset area.
c Continue to adjust the height-adjustment thumbwheel and the
right aperture lever until the surface of the sample comes into
focus.
When the sample height is properly adjusted, the outline of the camera
aperture (five-sided iris) can be clearly seen, as shown in
Figure 2-32.

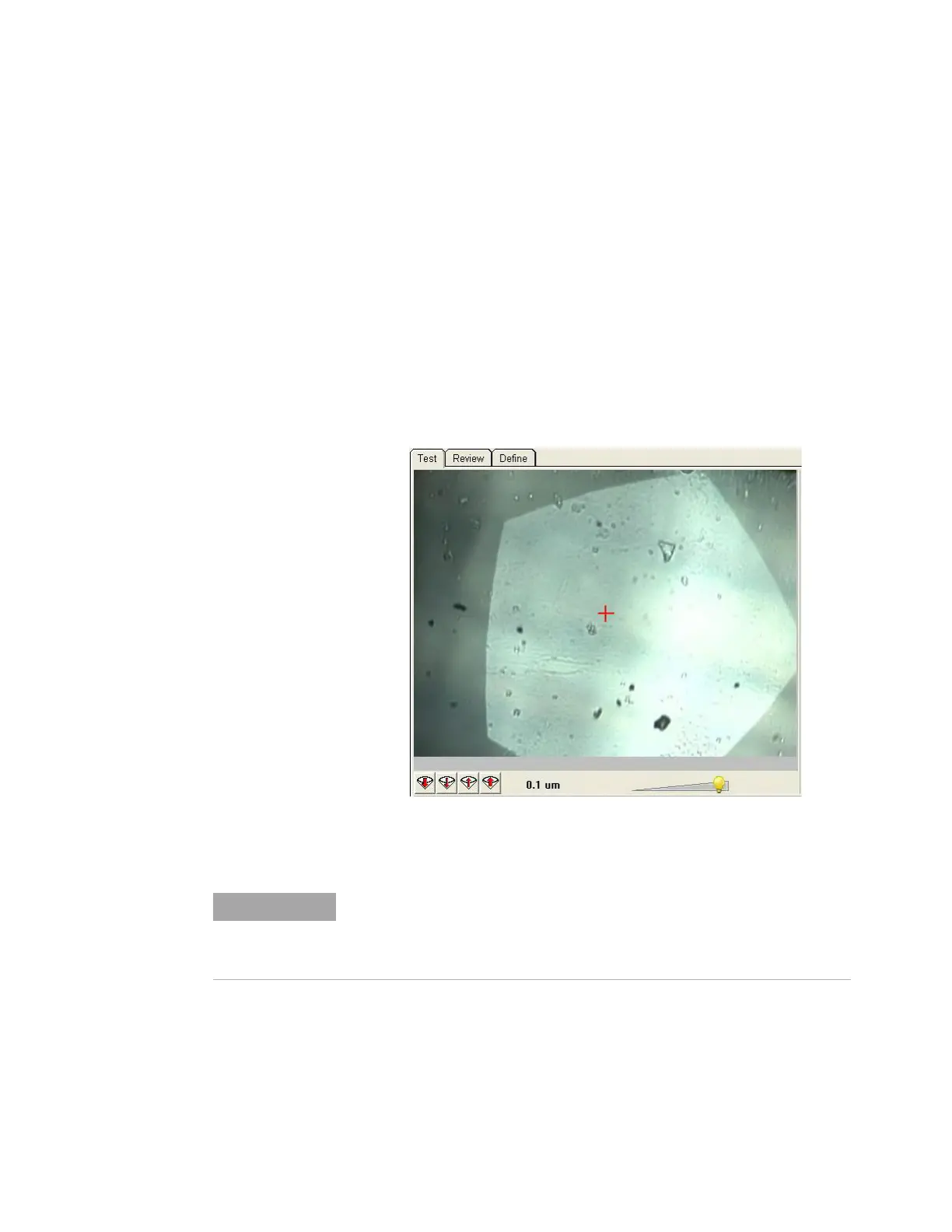

Figure 2-32Camera aperture outine visible in Nano Video Handset
10 Securely lock the sample into the sample tray by fully tightening the
brass thumbscrew next to the rear left sample disk hole.
11 Repeat this procedure for other samples, going clockwise in the
sample tray.
If you overshoot the height adjustment (that is, you adjust the height
past the point of focus), then start the height-adjustment procedure over.
Height adjustment should always proceed by moving the sample
upward.
