ASTRO VG Series User Manual

Chapter 4 INTERFACE SETTINGS
199

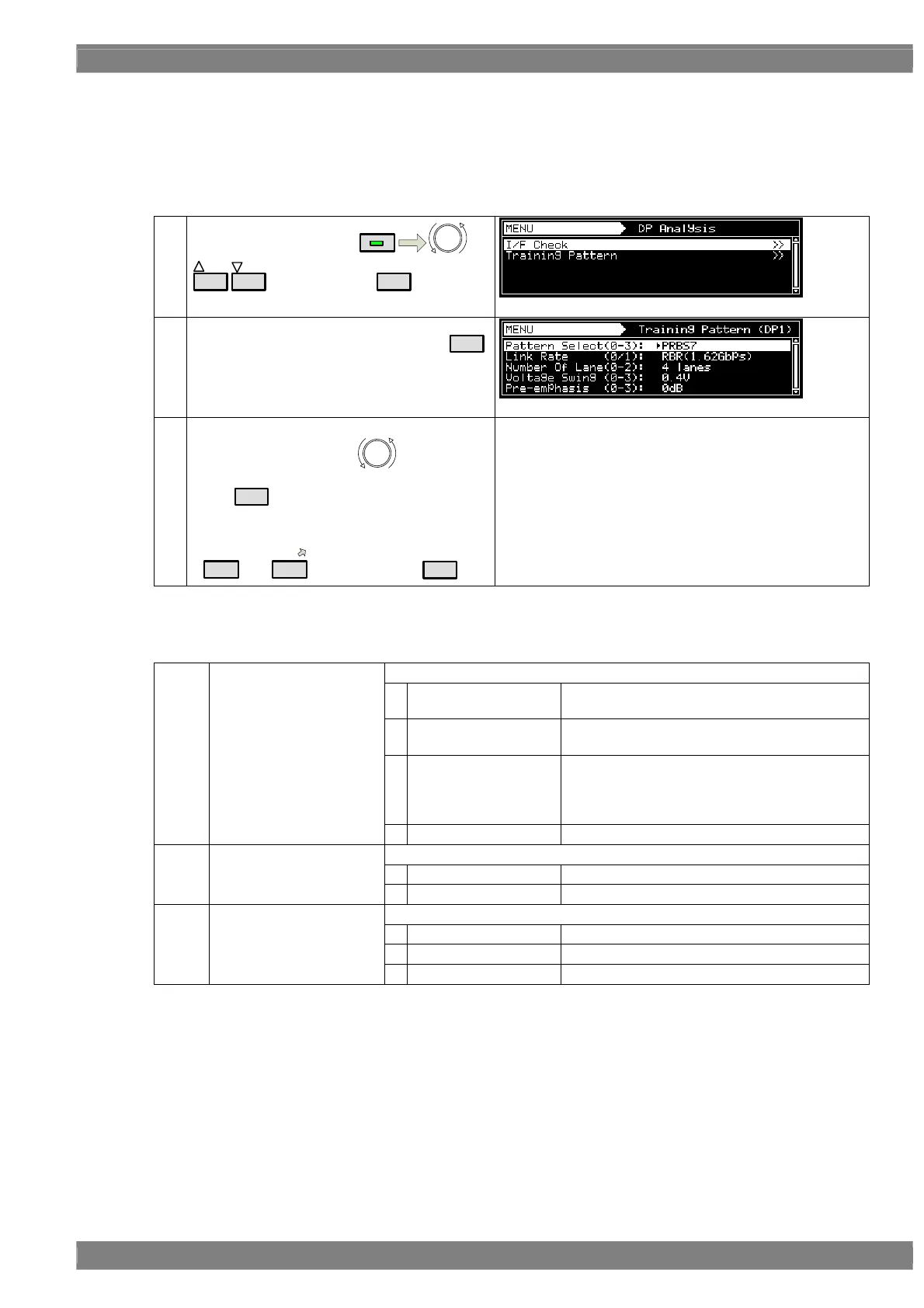

c) Training Pattern mode
This mode optionally outputs the “D10.2 pattern”, “PRBS-7 pattern” and other training patterns used to check
DisplayPort interface conformance during link training, etc.
* These patterns are not video patterns, and are instead patterns used for evaluation on the DisplayPort
interface. Therefore, non-DisplayPort output and DisplayPort output that is not selected by “a) Setting the port
to be used” remain as the video output displayed thus far.
(1)
Select DP Analysis using
MENU
or
INC
DEC
, and then press
SET
.
(2)
Select Training Pattern, and then press
SET
.
(3)
<Selecting each function>
Select the functions using
, and then
press
SET
.
Alternatively:
Select the functions using the number keys
(
0/STATUS
to
9/F
), and then press
SET
.
For further details on each function, refer to <Training
Pattern mode setting parameters> in this section.
<Training Pattern mode setting parameters>
The following settings can be made in Training Pattern mode.
This sets the pattern.
0
D10.2 (TP1)
The D10.2 test pattern (Link Training Pattern1)
is output.
1
EQ (TP2)
The Link Training Pattern2 (Channel
Equalization Sequence) is output.
2
Symbol Error Rate
The Symbol Error Rate Measurement Pattern is
output.
(This pattern is output only, and the error rate is
not measured.)
(1)
Pattern Select (0-3)
3
PRBS7
The PRBS7 pattern is output.
This sets the link rate.
0
HBR (2.7Gbps)
Output at the link rate “HBR (2.7 Gbps)”.
(2)
Link Rate (0/1)
1
RBR (1.62Gbps)
Output at the link rate “RBR (1.62 Gbps)”.
This sets the number of output lanes.
0
1lane
Output on 1 lane.
1
2lanes
Output on 2 lanes.
(3)
Number of Lane (0-2)
2
4lanes
Output on 4 lanes.
