Performing the commissioning
Parameter manual b maXX BM3000
Document no.: 5.12001.07 Baumüller Nürnberg GmbH
68
of 820
3.6

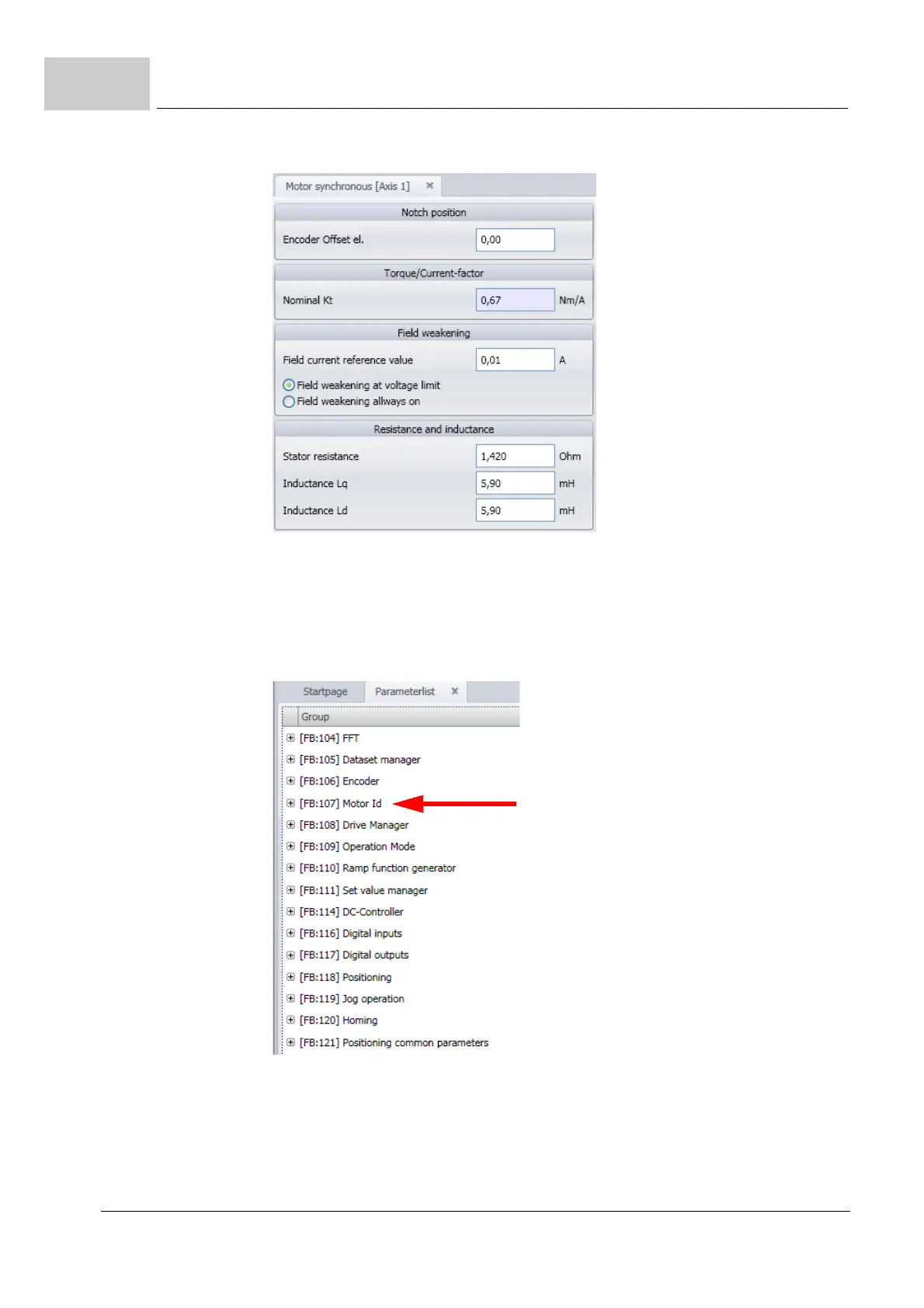

Figure 53: ProDrive: Motor synchronous
Using the parame-
ter list
If you are not using the Baumüller motor database, you can also enter all the motor pa-
rameters using the "Parameter list".
23 Click on the "Parameter list" in the navigation.
24 In der parameter list, click on "Motor Id".
Figure 54: ProDrive: Parameterlist - Motor Id
The following motor parameters must be specified:
m Maximum speed, mech.(Z107.26– Maximum speed, mechanical)
m Number of pole pairs (Z107.19– Pole pairs)
