Baumuller b maXX BM3000 User Manual

Commissioning BM3xxx
Parameter manual b maXX BM3000
Document no.: 5.12001.07
69
of 820
3
m Phase sequence (Z107.38– Motor flags, Bit 0 = 0: counter-clockwise, Bit 0 = 1: clock-
wise)
Now save the entered data.
25 Click on "Dataset management" in the navigation

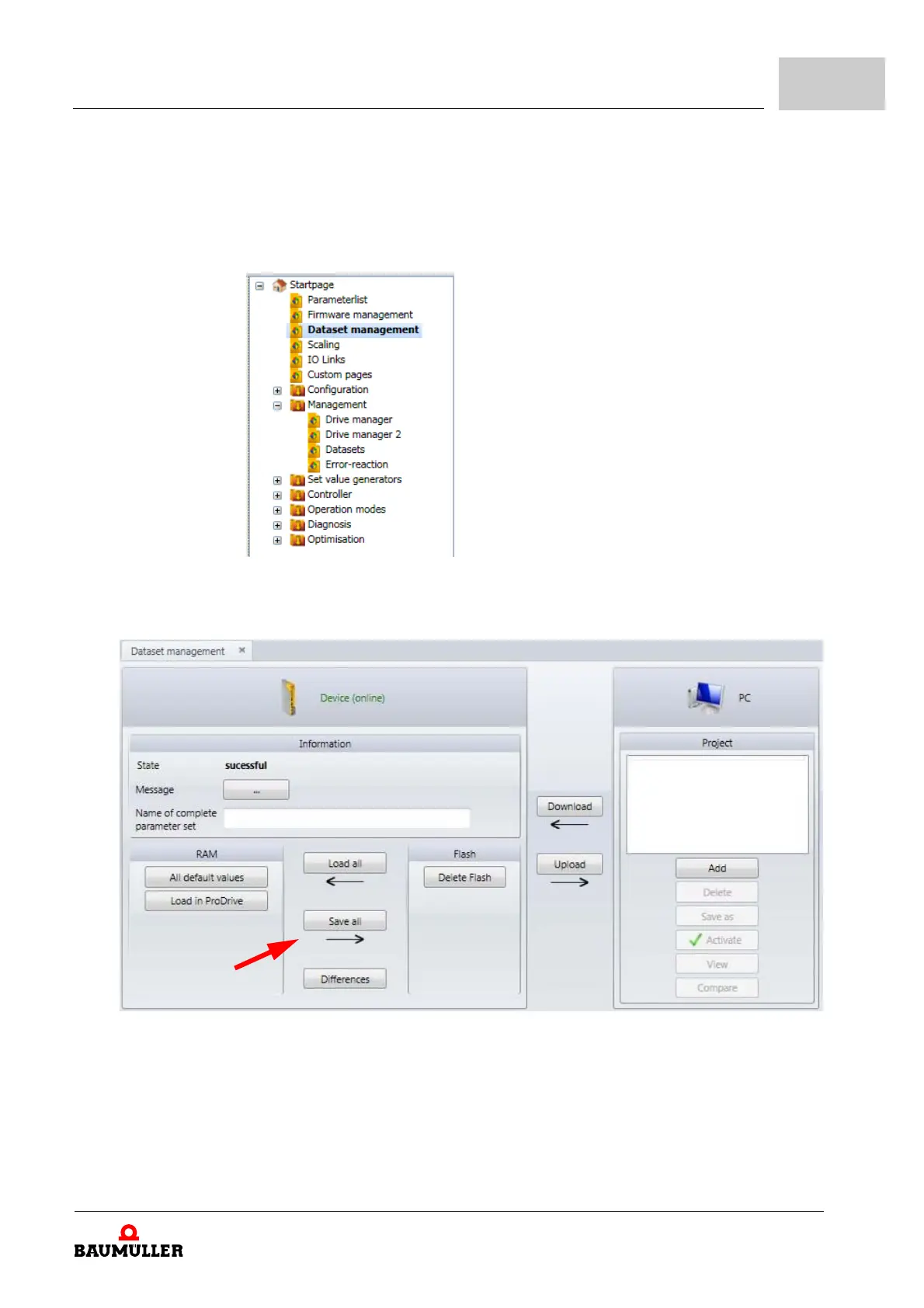

Figure 55: ProDrive Navigation Dataset management
26 Click on the "Save All" button in the Dataset management.
Figure 56: ProDrive: Dataset management
27 Wait until "Successful" is displayed under "Data Set Status"
28 At this point the data set is saved in Flash memory.
29 Disconnect the device from the main power and control voltage supplies.
30 Reconnect the power supplies to the b maXX
®

(main power supply + control voltage).
