INSTALLATION AND STARTUP
1MANUL220 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 5-7
Chapter 5 Entrance and Exit Photo-Eyes
VPS Virtual Positioning System® Photo-Eye

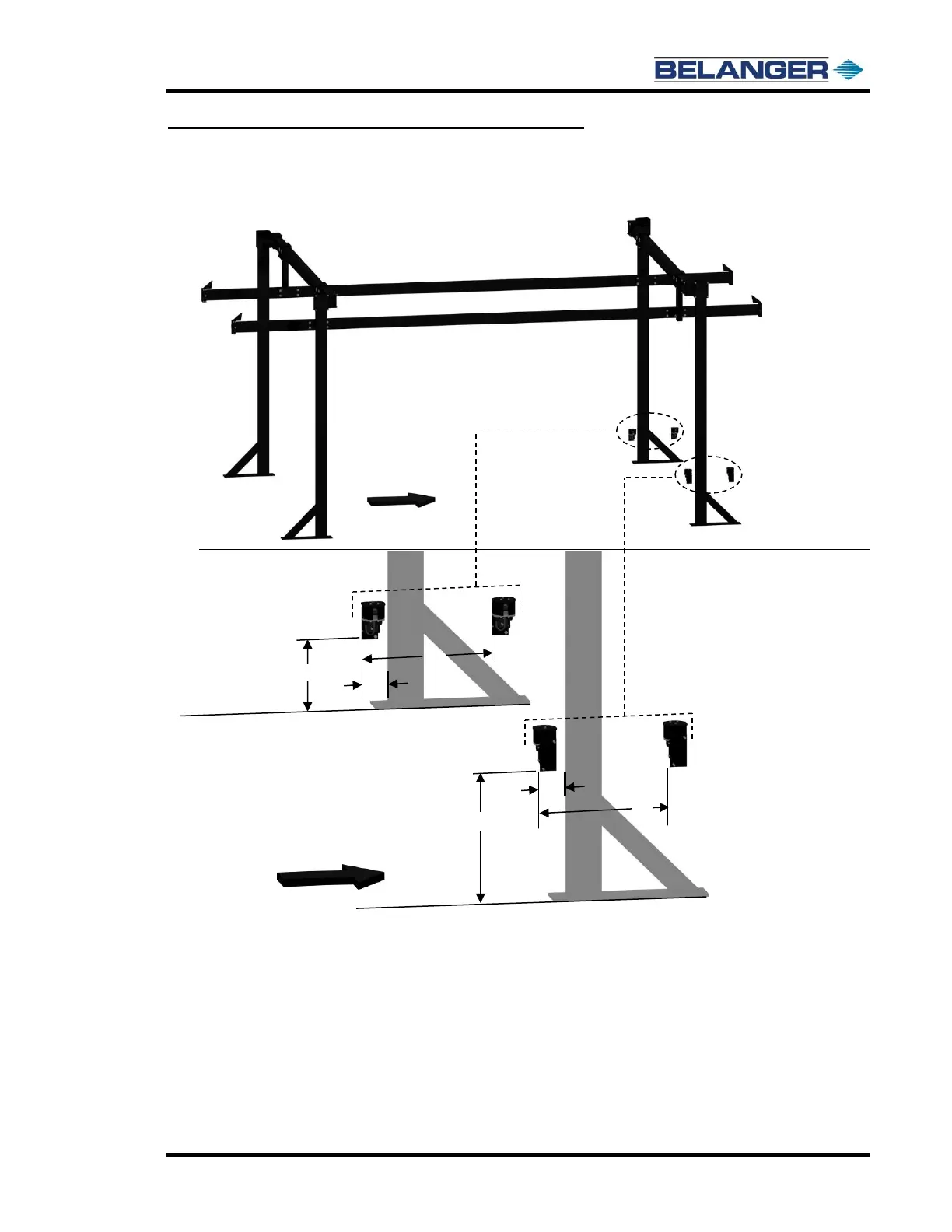

Photo-Eye Placement - 4-Legged Frame
9”
Driver Side,
Exit End
Passenger
Side, Exit End
4”
26”
27-1/2”
24”
8-1/2”
