Chapter 5 Entrance and Exit Photo-Eyes
VPS Virtual Positioning System® Photo-Eye

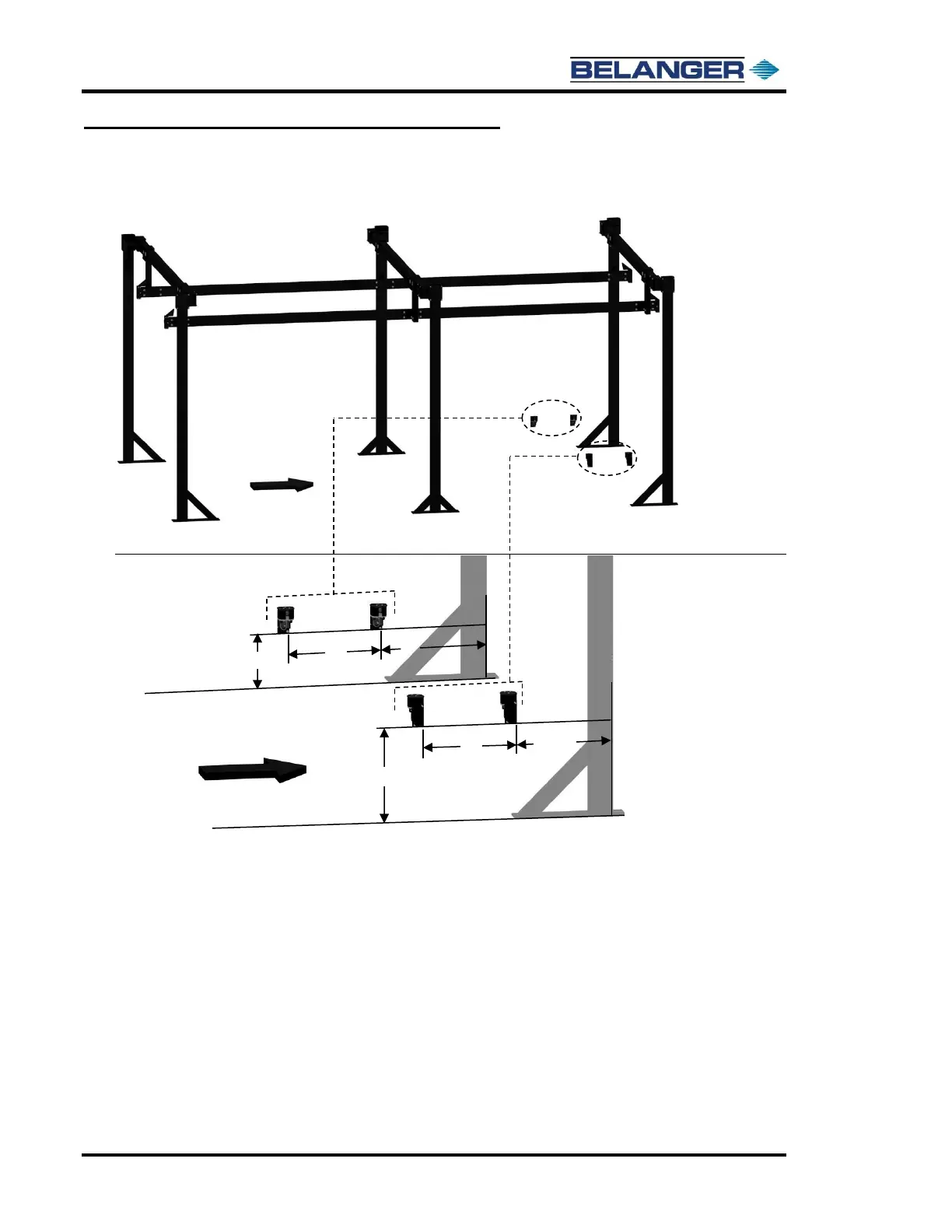

Photo-Eye Placement - 6-Legged Frame
27-1/2”
27-1/2”
24”
9”
26”
Driver Side,
Exit End
Passenger
Side, Exit End
21”
