INSTALLATION AND STARTUP
10-2 Belanger, Inc. ®* PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL220

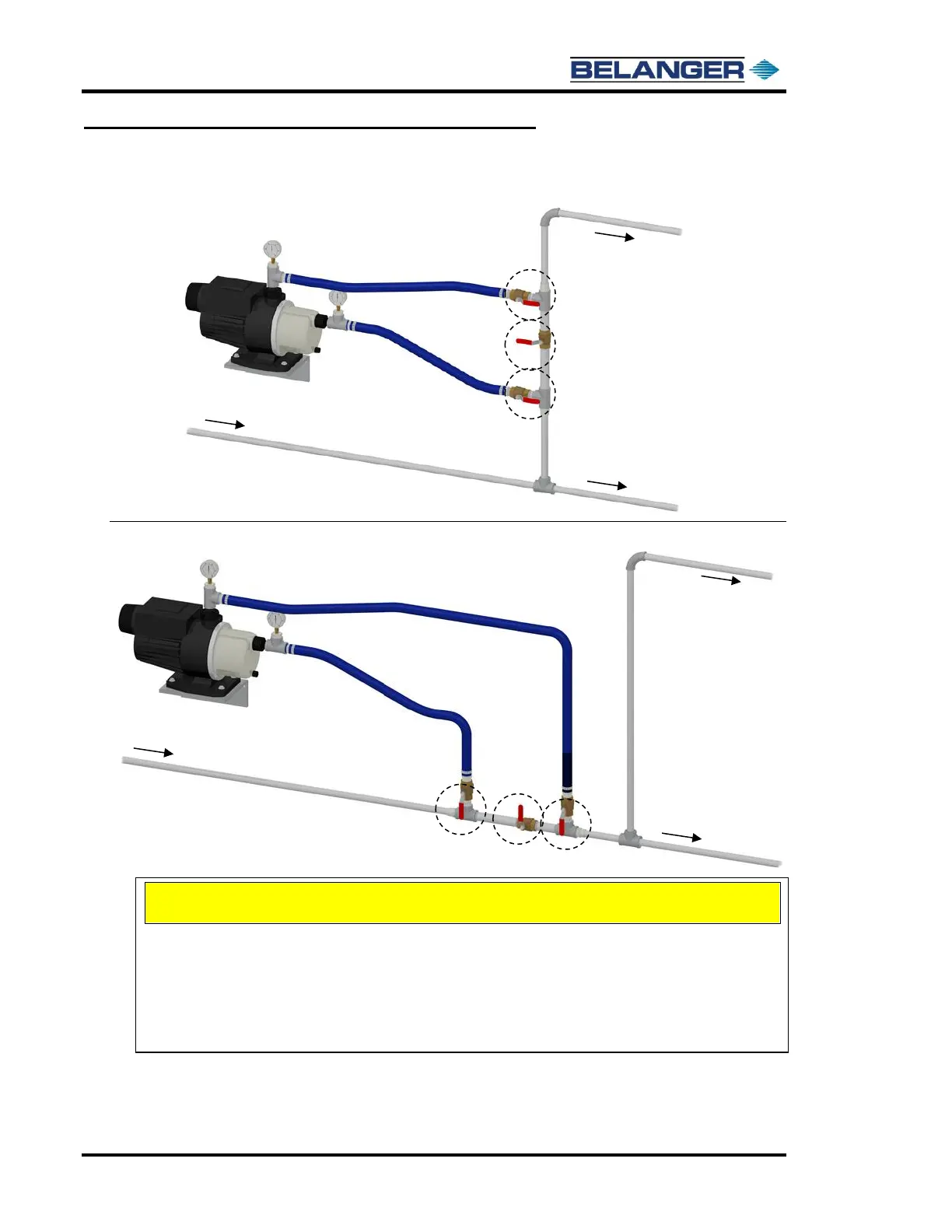

Chapter 10 Booster Pump Assembly Option
Booster Pump
Example 1
Example 2
CAUTION
During typical operation using the Booster Pump, make sure Ball Valves #1 and
#2 are open and #3 is closed.
To bypass the Booster Pump and continue running the wash, for example during
maintenance procedures, make sure that Ball Valves #1 and #2 are closed and #3
is open.
To Optional Wheel Cleaner
Pumping Station
To FreeStyler®
Main Water Feed
To Optional Wheel Cleaner
Pumping Station
To FreeStyler®
Main Water Feed
Applies
additional
pressure to the
FreeStyler®
wash process
only.
Applies
additional
pressure to the
FreeStyler®
wash and the
wheel cleaning
process
Ball Valve #1
Ball Valve #2
Ball Valve #3
Ball Valve #1
Ball Valve #3
Ball Valve #2
