Chapter 15 Wheel Cleaning and CTA Options
Wheel Stingers® and Freestanding CTA

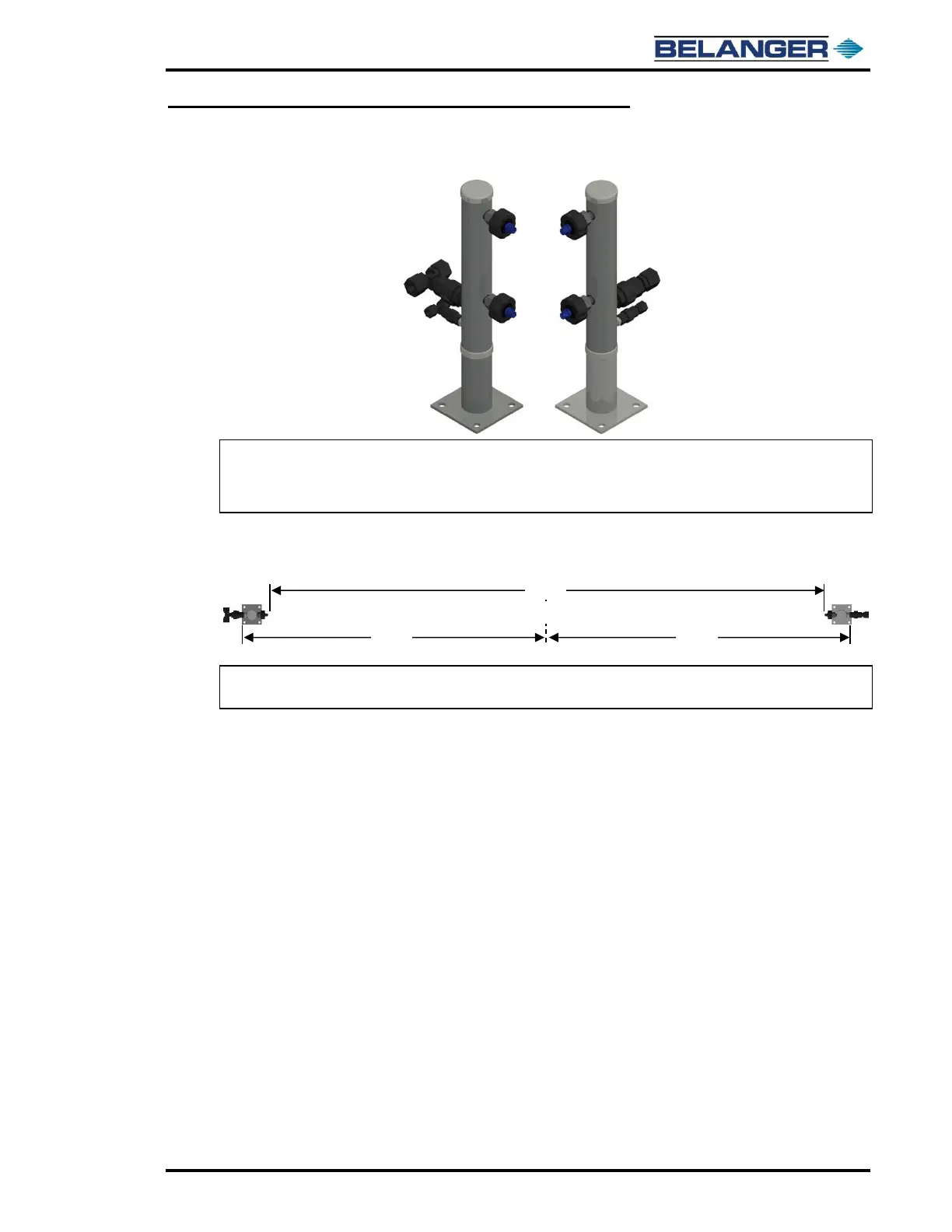

1) Locate the two applicators shown below.
Note: The Primary Applicator has 2 tees mounted into the back and should be positioned on the
equipment room side.
Note: The Secondary Applicator will be mounted on the opposite side of the bay.
2) From the center-line of the equipment the applicators should be mounted 61-1/4” to the
back of the base plate. This should set the nozzles around 112-1/2” apart.
Note: In a drive-through configuration the applicators should not be mounted in the path of the
vehicles.
