INSTALLATION AND STARTUP
17-2 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL220
Chapter 17 Onboard Dryer Options
Overview

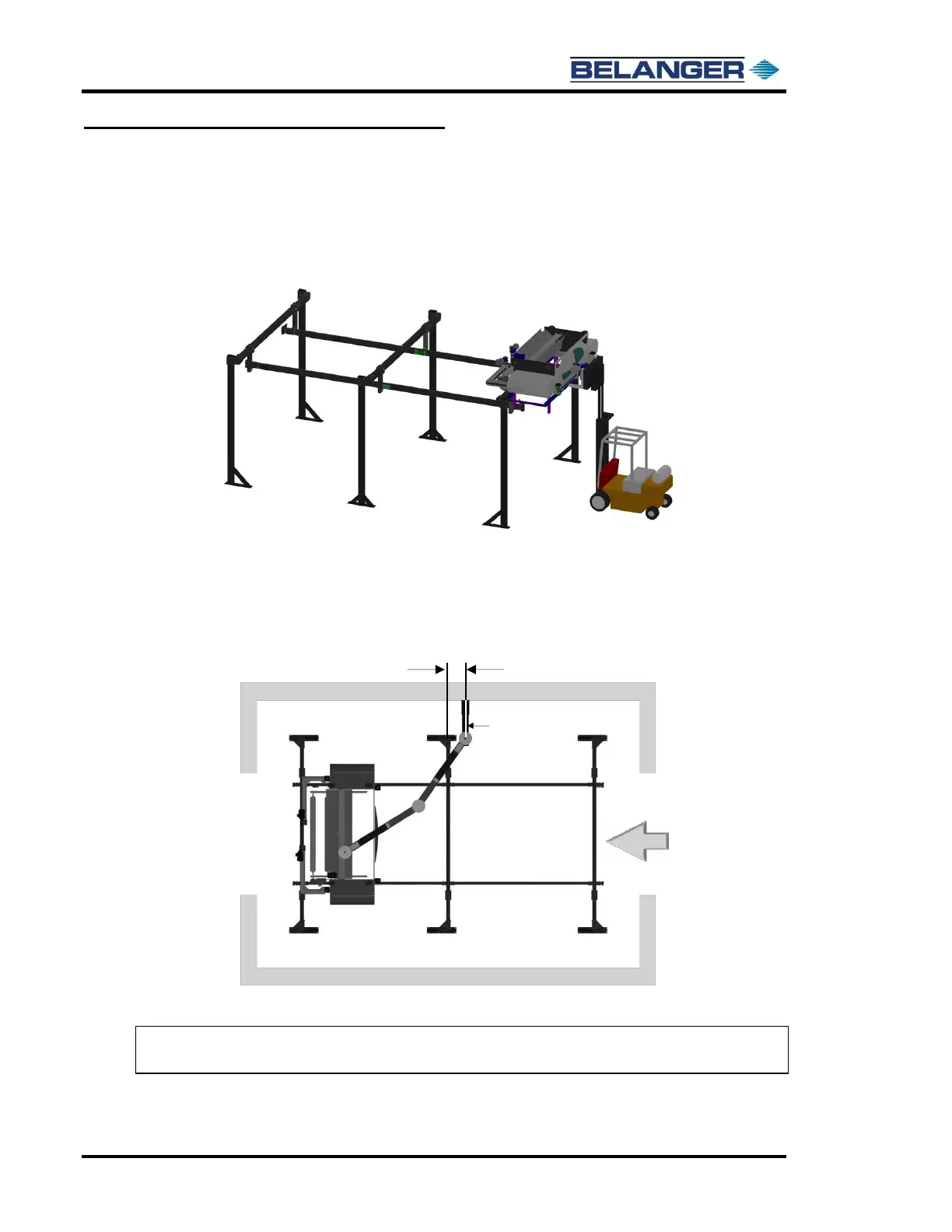

Frame Installation
If you purchased an optional Onboard dryer, then your FreeStyler® will come with a 6-Legged Frame. Follow the
instructions in Chapter 6 – Carriage and Frame to install the frame. The only addition will be another head beam
and two center mount legs which are to be centered on the rails. The Onboard dryer will come installed in the
carriage.
Installing the Boom Mount
If you purchased an optional Onboard dryer, then your FreeStyler® will come with a 6-Legged Frame. Follow the
instructions in Chapter 6 – Carriage and Frame to install the Boom and Boom Mount. Install the Boom Mount for
the 6-Legged Frame in the location shown in the image below.
Note: All the above dimensions are applicable for either Driver side or Passenger
side Boom orientation.
