INSTALLATION AND STARTUP
1MANUL220 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 4-41
Chapter 4 Frame and Carriage Assembly
Optional Deluxe Boom
Routing the Air Lines
1) Take all the gray motor cables and run them through the pipe located to the inside of the boom bend.
Note: The pipe on the inside of the boom bend is designated for the three phase wires only and no
other utilities should run thru this pipe. See the image below.
Note: Route the cables thru each of the five stages listed above and to the equipment room.
2) Take the three yellow junction box wires and run them from the machine back through each section of the
“outside pipe”. See the image below.
3) Take the airlines and connect them in the equipment room.
Route them out to the machine through the outer tube that houses the yellow cables.

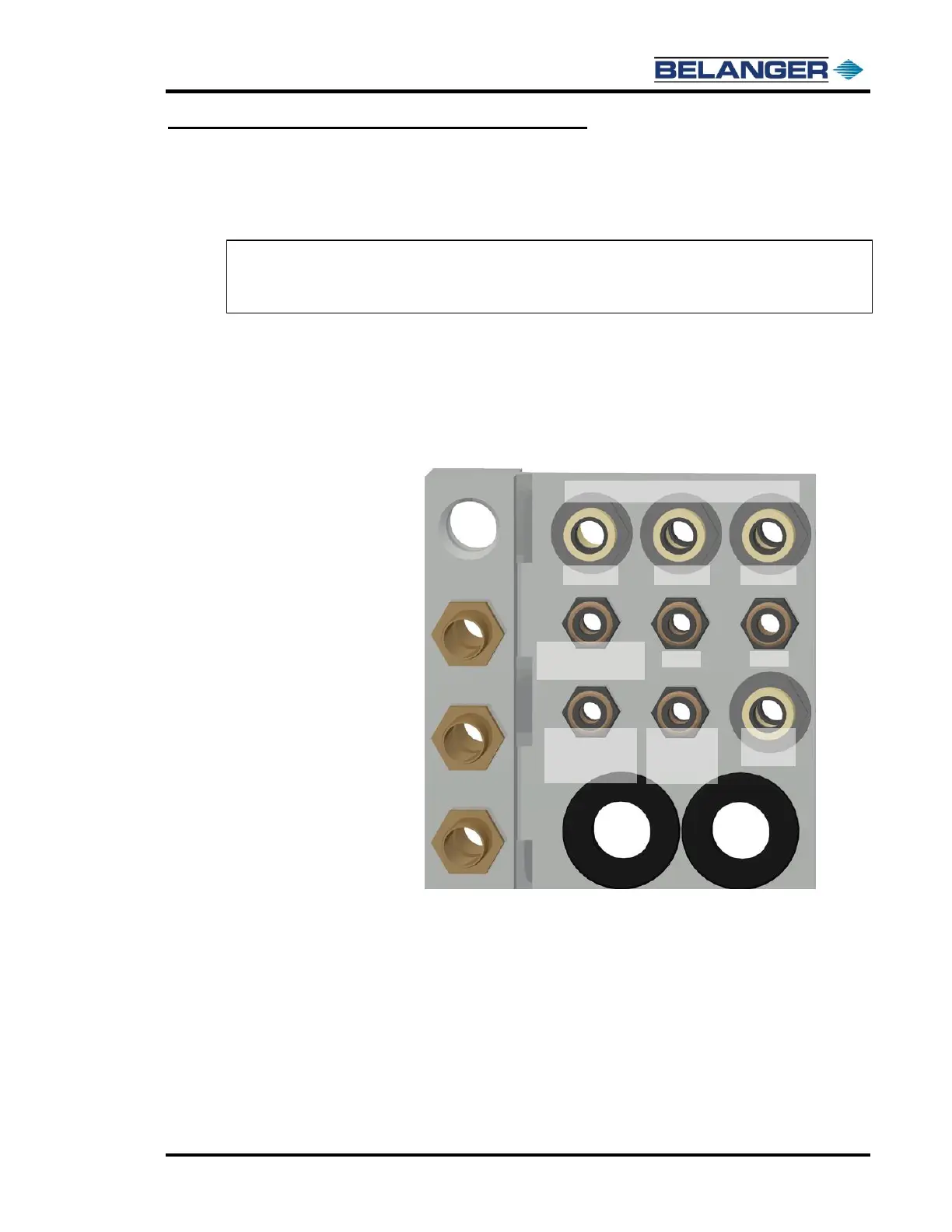

Connect each airline to the proper port as shown below.
