INSTALLATION AND STARTUP
4-40 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL220
Chapter 4 Frame and Carriage Assembly
Optional Deluxe Boom
Bulkhead Block and Utilities

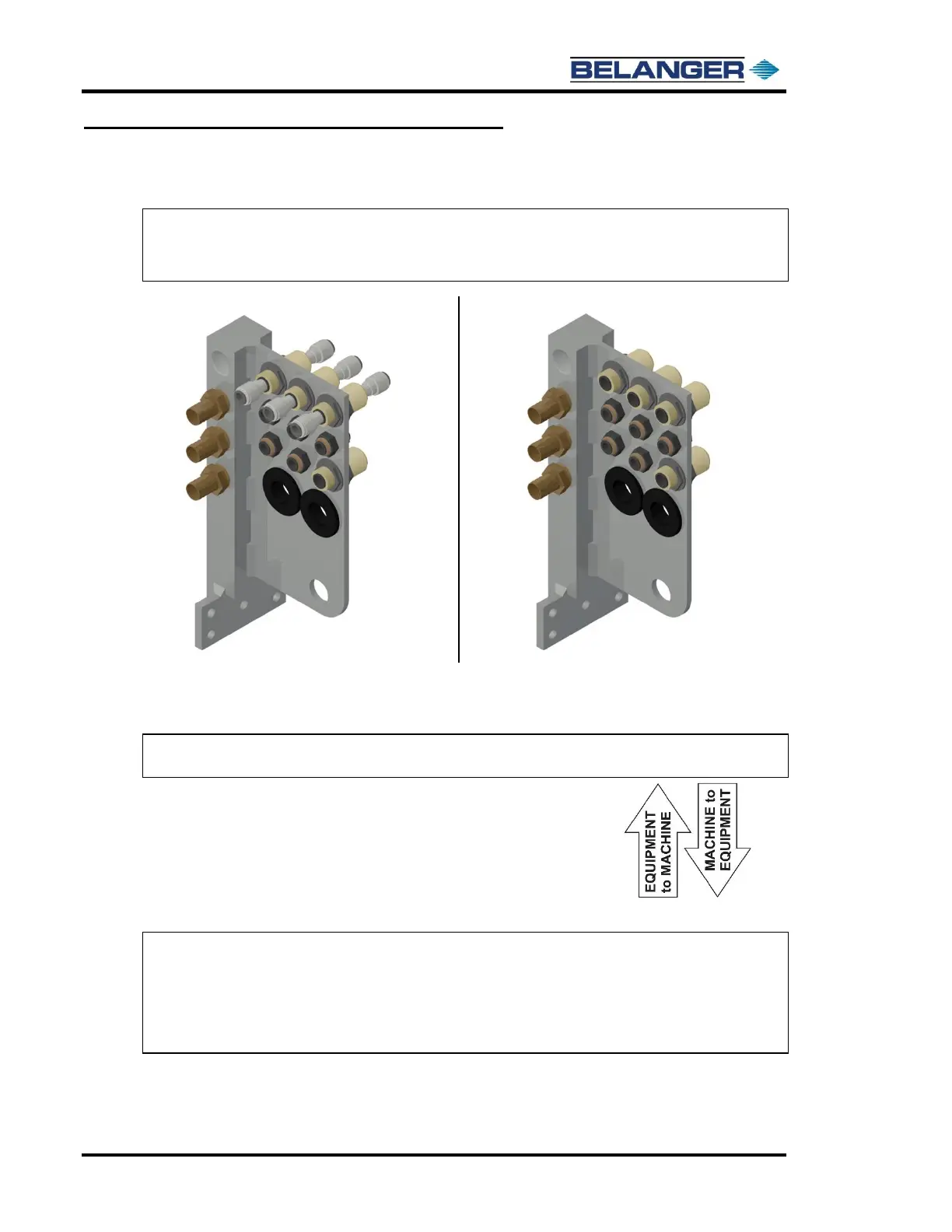

Note: There are two styles of Bulkheads. One for the Pulsatron™ Pump System and one for the
MixStir® Pump System. See the images below.
Note: Utility connections are routed the same way for both styles.
Pulsatron™ Pump Style MixStir® Pump Style
Routing the Air Lines
Note: BEFORE ROUTING THE UTILITY LINES. Please read the next steps in this section to
understand the order and location of the lines.
The lines will need to be routed in the following sequence:
a. Through the 50” section of liquid tight tube
b. Through the machine mounted Boom Arm section (atop the carriage)
c. Through a center sections of liquid tight tube at the center of the boom
d. Through the Wall Mount Boom Arm
e. Finally, through another 28” sections of liquid tight tube located atop the carriage
Note: It is imperative to leave a loop at the area entering the boom and leaving the boom to allow
the utilities to properly bend through the booms motion.
Note: The Boom entrance and exit slack should be checked and adjusted as necessary on the
startup of the machine.
Note: Also leave a little slack in the center area of the boom to allow the hoses to bend properly.
