INSTALLATION AND STARTUP
4-44 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL220
Chapter 4 Frame and Carriage Assembly
Optional Deluxe Boom
Routing the Airlines Over the Boom Utility Capture Assembly

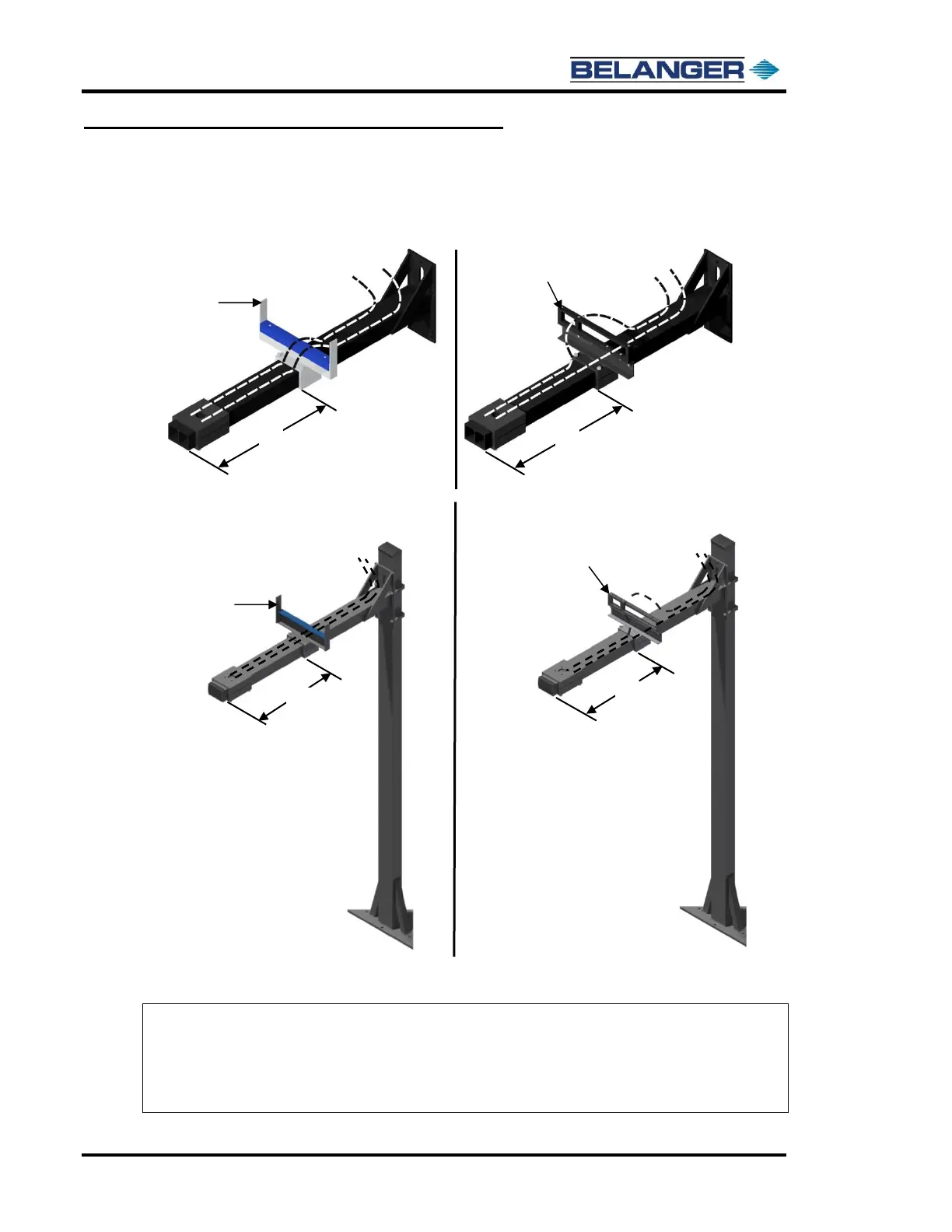

1) Locate the FreeStyler® Boom Utility Capture Assembly and slide it onto the Boom Mount as
shown below. Tighten it at 34” from the end as shown in the images below.
Note: When routing hoses and lines at the Boom and through the Boom Utility Capture Assembly
be sure to leave loops at the ends and slack in the middle to allow for hose bending and
movement through the motion of the machine.
Note: Check all hoses and lines to verify the proper amount of slack while running the first few
test vehicles.
34”
34”
Boom Utility
Capture Assembly
Boom Utility
Capture Assembly
Wall Mount:
Freestanding Mount:
Boom Utility
Capture Assembly
Boom Utility
Capture Assembly
34”
34”
