BONFIGLIOLI Agile User Manual

Parameter descriptions

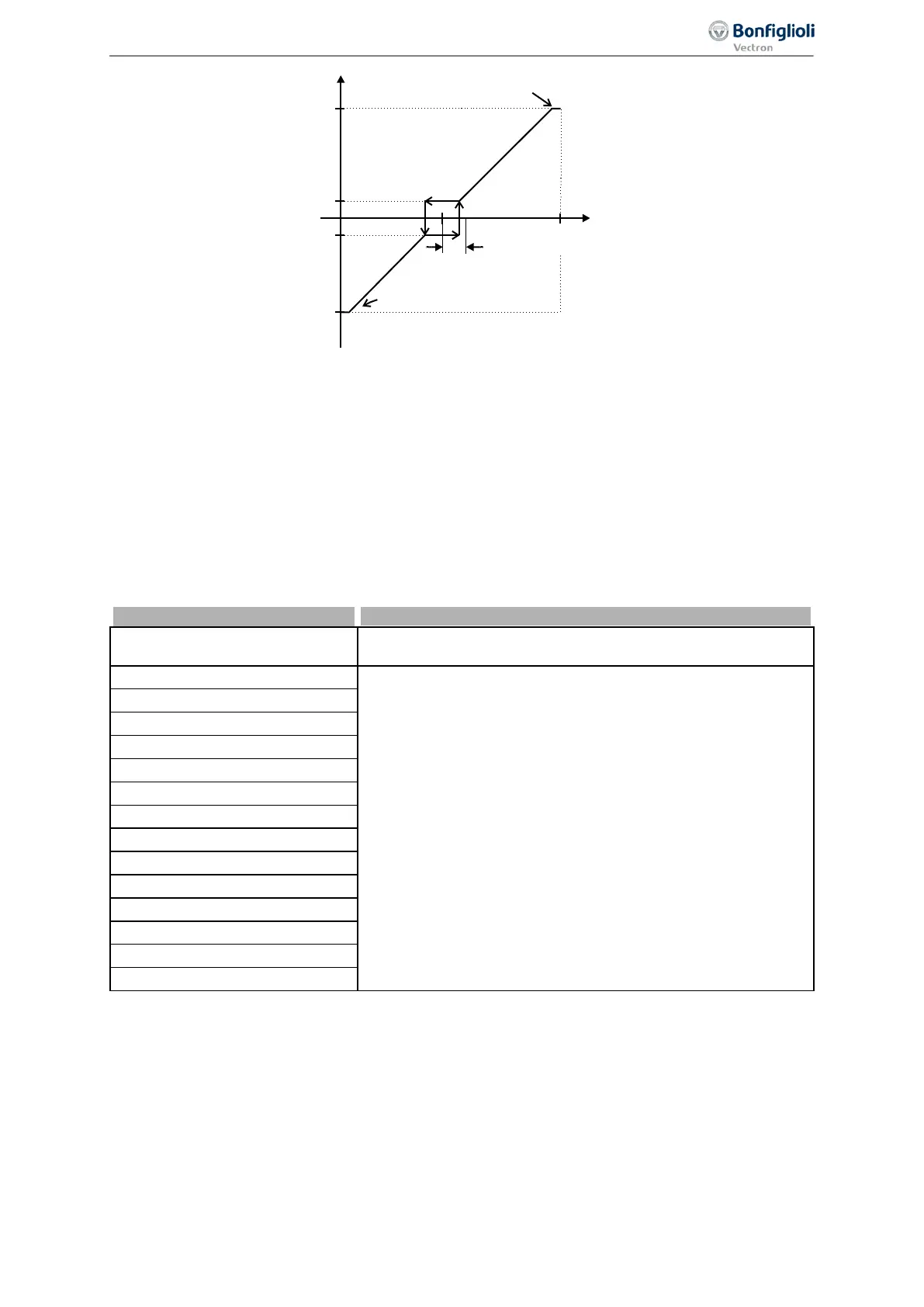

Tolerance band with set maximum frequency
For example, the output variable coming from positive input signals is kept on the positive minimum
value until the input signal becomes lower than the value for the tolerance band in the negative direc-
tion. Then, the output variable follows the set characteristic.
7.6.1.1.3 Monitoring of analog input signal
451 Filter time constant
The time constant of the filter for the analog reference value can be set via the parameter
Filter time
constant
451. The time constant indicates the time during which the input signal is averaged by
means of a low pass filter, in example in order to eliminate fault effects.
The setting range is between 0 ms and 5000 ms in 15 steps.
Filter time constant 451
Function
0 - Time constant 0 ms
Filter deactivated – The analog reference value is forwarded
unfiltered.
2 - Time constant 2 ms
Filter activated – averaging of the input signal via the set value
of the filter time constants.
4 - Time constant 4 ms
8 - Time constant 8 ms
16 -
Time constant 16 ms
32 -
Time constant 32 ms
64 -
Time constant 64 ms
128 -
Time constant 128 ms
256 -
Time constant 256 ms
512 -
Time constant 512 ms
1000 - Time constant 1000 ms
2000 - Time constant 2000 ms
3000 - Time constant 3000 ms
4000 - Time constant 4000 ms
5000 -
Time constant 5000 ms
pos. maximum value
pos. minimum value
neg. minimum value
zero point
tolerance band
n
eg. maximum value
+10 V
(+20 mA)
(X1/Y1)
(X2/Y2)
173
Control inputs and outputs 06/2013 Operating Instructions
Agile
